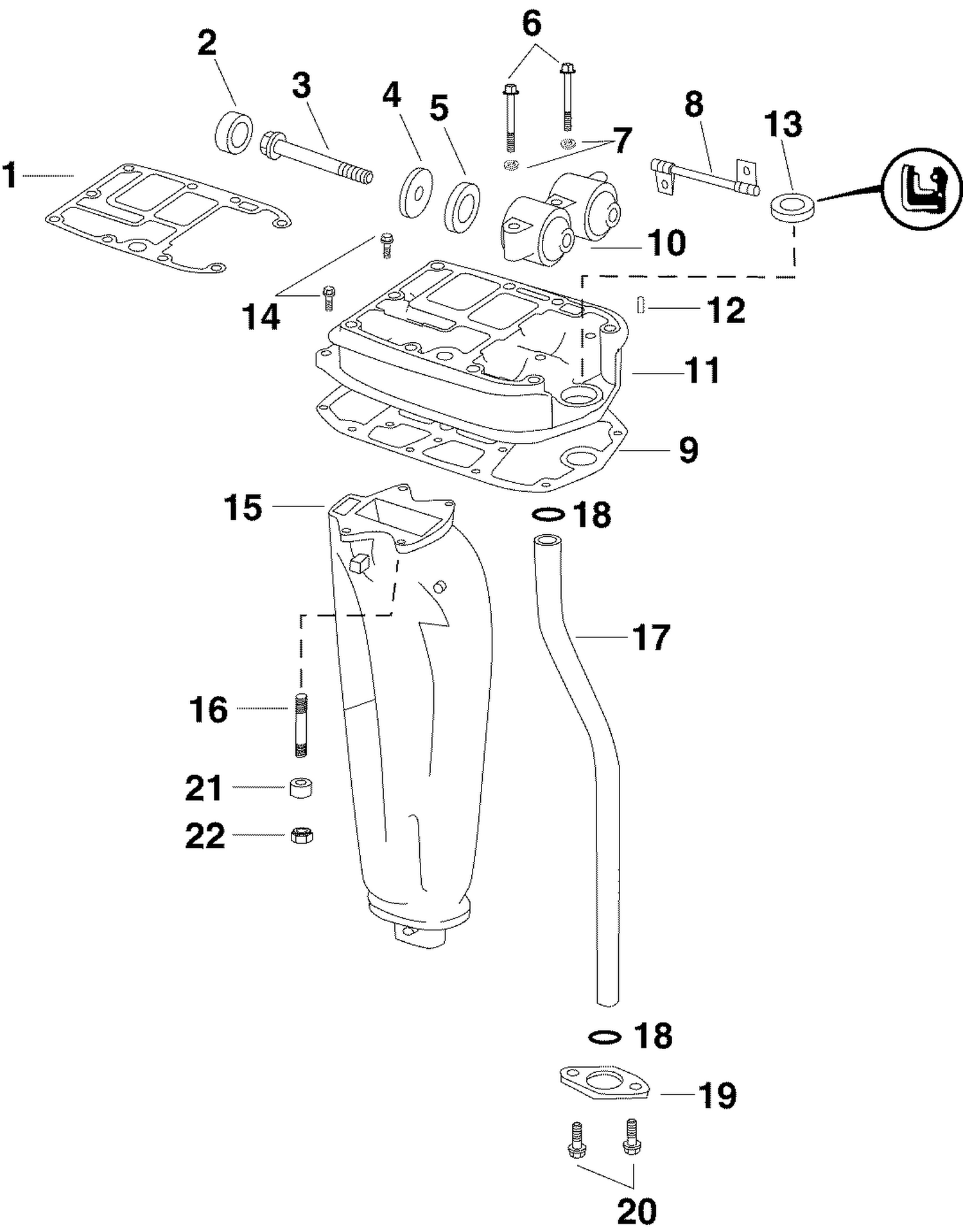

EXHAUST ADAPTER & INNER HOUSING
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 0313581 | BUMBER, Mount screw |
| 3 | 0317648 | SCREW, Upper mount |
| 4 | 0321232 | RETAINER WASHER |
| 5 | 0313580 | WASHER |
| 6 | 0306423 | BOLT |
| 8 | 0582494 | GROUND STRAP |
| 9 | 0351019 | GASKET, Adapter to housing |
| 10 | 0436470 | MOUNT, Upper |
| 11 | 5005506 | ADAPTER Assy, Exhaust housing |
| 14 | 0309705 | SCREW |
| 15 | 0351257 | EXHAUST HOUSING, Inner |
| 16 | 0351491 | STUD, Adapter to outer housing |
| 17 | 0341552 | WATER TUBE |
| 18 | 0332363 | GROMMET, Tube to adapter |
| 19 | 0315860 | COVER WATER TUBE |
| 21 | 0351484 | SPACER |
