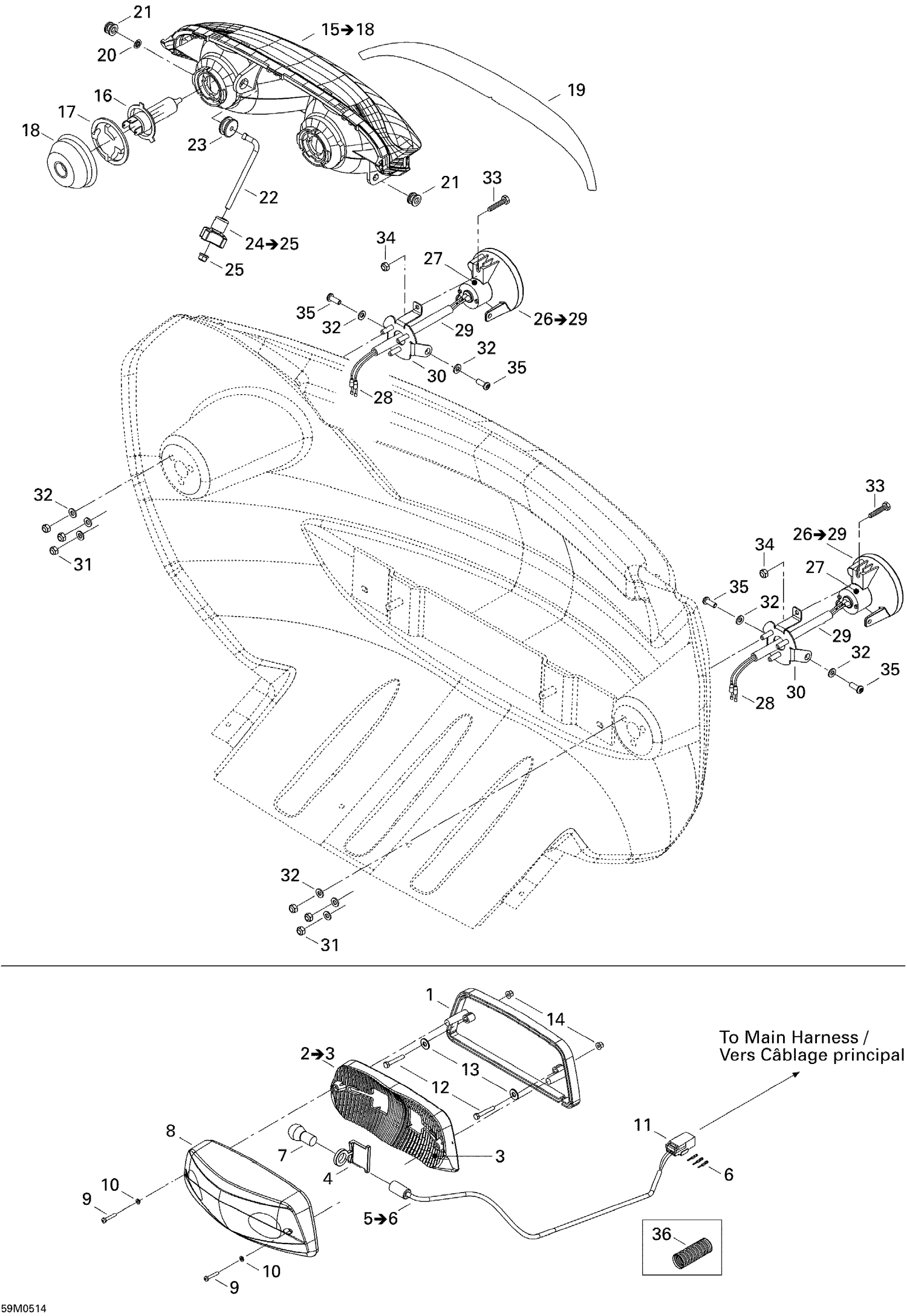

| Ref | Part Number | Description |
|---|
| 1 |
515175397 |
LAMP HOUSING - Call your local BRP dealership |
| 3 |
510004442 |
REFLECTOR - Call your local BRP dealership |
| 4 |
511000431 |
BULB SUPPORT - Call your local BRP dealership |
| 6 |
515175232 |
Male Terminal |
| 7 |
520000758 |
Bulb This part replaces 410504100. |
| 8 |
511000315 |
Lens |
| 9 |
209632580 |
PHILLIPS TAPPING SCREW 3.9 X 25 - Call your local BRP dealership |
| 10 |
414516400 |
Washer - Call your local BRP dealership |
| 11 |
515175494 |
Male Housing, 3 Circuits |
| 12 |
207053044 |
Hex. Screw M5 X 30 |
| 13 |
517297900 |
WASHER - Call your local BRP dealership |
| 14 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 16 |
515176274 |
Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 17 |
515176385 |
BULB HOLDER - Call your local BRP dealership This part replaces 515175910. |
| 18 |
515175911 |
COVER - Call your local BRP dealership |
| 19 |
516001328 |
HEADLAMP DECAL - Call your local BRP dealership |
| 20 |
732610072 |
Push Nut |
| 21 |
515175760 |
HEADLAMP BUSHING - Call your local BRP dealership |
| 22 |
515176022 |
Adjuster Rod |
| 23 |
415100800 |
Grommet - Call your local BRP dealership |
| 25 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 27 |
415128844 |
Halogen Light Bulb |
| 28 |
278000230 |
Male Terminal |
| 29 |
278001008 |
Insulated Sheath |
| 30 |
515176046 |
Fog Light Support |
| 31 |
232561414 |
Elastic Stop Nut M6 |
| 32 |
234061410 |
Flat Washer 6 mm |
| 33 |
207161644 |
Hex. Screw M6 X 16 |
| 34 |
232561414 |
Elastic Stop Nut M6 |
| 35 |
250000172 |
SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership |
