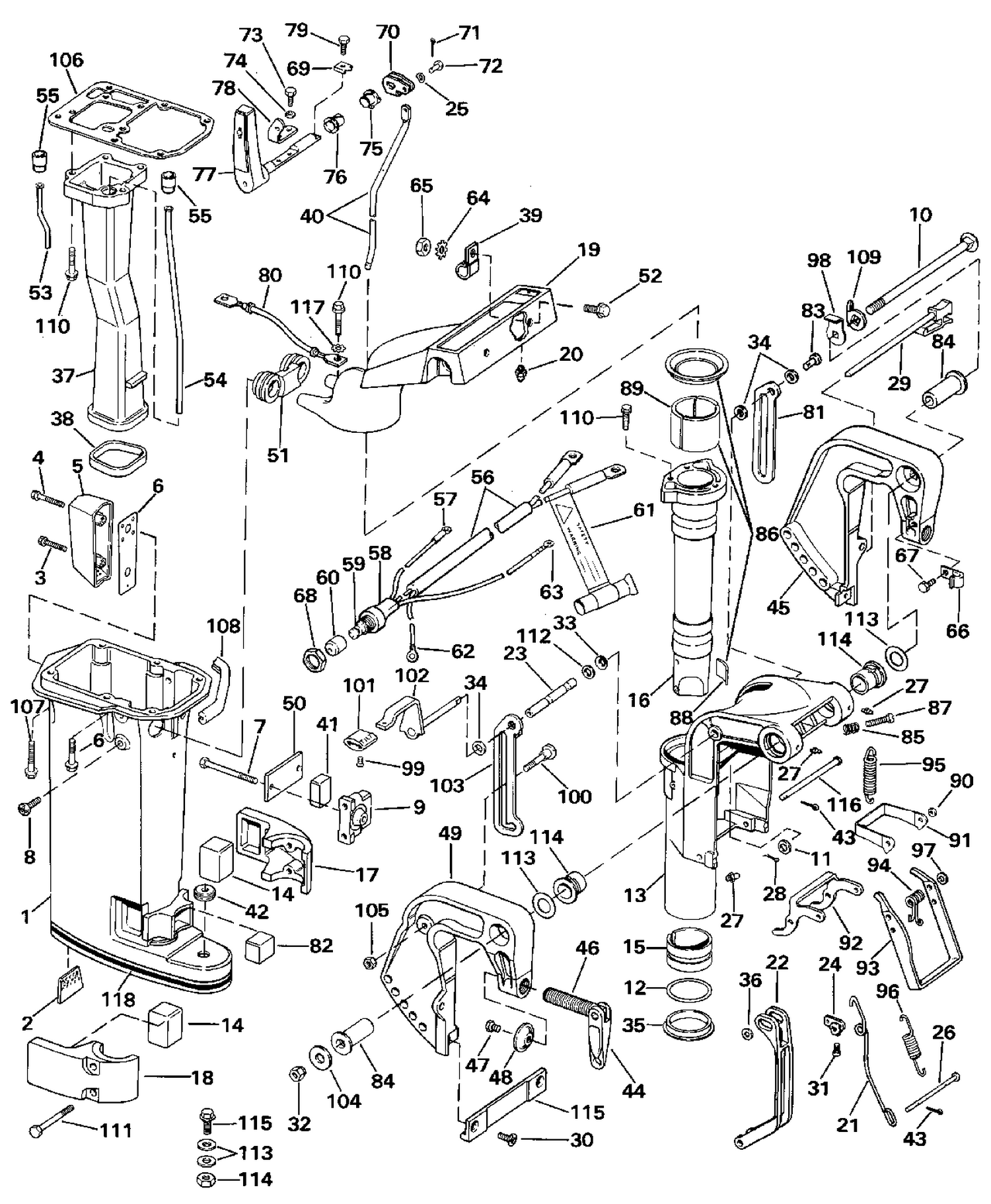

MIDSECTION (ALL MODELS EXCEPT SEL)

MIDSECTION (ALL MODELS EXCEPT SEL)

Parts (92)

RefPart NumberDescription
1 0432442 EXHAUST HOUSING ASSY.
1 0432496 EXHAUST HOUSING ASSY.
2 0322210 BAFFLE , Exhaust hsg.
6 0334533 GASKET, Muffler
7 0313600 SCREW, Upper mounts to steering bracket
8 0319125 SCREW
9 0431641 MOUNT ASST., Upper
10 0332960 TILT BOLT, Stern bracket to swivel bracket
11 0303884 RONDELLE
13 0330507 SWIVEL BRACKET
14 0318997 LATERAL MOUNT, Lower
15 0309967 BUSHING, Pilot shaft, lower
16 0318528 PILOT SHAFT, Swivel brkt.
17 0329021 MOUNT BRACKET, Lower port
18 0329020 MOUNT BRACKET, Lower, stbd
19 0396609 STEERING BRACKET
21 0320416 WIRE, Reverse lock release
22 0338874 CARRYING HANDLE This part replaces 0331096.
23 0328285 BUSHING, Tilt lock shaft to sw. brkt.
24 0319049 BELL CRANK, Reverse lock
25 0304380 RONDELLE ÉLASTIQUE
26 0326943 PIN, Link to lock lever
29 0432453 KNOB & TILT PIN ASSY.
30 0308684 SCREW, Cover to housing
31 0319108 SCREW BELCRANK
33 0312977 BOW WASHER, Link to lever
34 0308052 RONDELLE, verrouillage de relevage, douille d'arbre
35 0309966 THRUST WASHER, Lower swivel bracket
36 0310540 RONDELLE, arbre de verrouillage de relevage, extérieur
37 0330439 EXHAUST TUBE, Inner
37 0330440 EXHAUST TUBE, Inner
38 0318996 SEAL, Inner to outer exh, hsg
39 0317000 COLLIER, câble This part replaces 0320687.
40 0319124 SHIFT ROD, Upper
41 0329045 THRUST MOUNT, Upper
42 0319229 GROMMET, Exh, hsg, to shift rod
45 0328268 STERN BRACKET, Port This part replaces 0393190.
46 0391421 CLAMP SCREW & HANDLE
46 0433675 CLAMP SCR. & HAND. ASSY. This part replaces 0388347.
49 0328269 STERN BRACKET, Starboard This part replaces 0393191.
50 0339613 PLATE, Upper mounts This part replaces 0329047.
51 0318989 SEAL, Upper mounts exh. hsg.
53 0395125 TUBE, Water outlet
54 0395122 WATER TUBE & GROMMET, Inlet, std.
54 0395123 EATER TUBE, Long
56 0582961 CABLE & STARER SWITCH ASSY.
58 0511532 TUBING, Starter switch
59 0395699 STARTER SWITCH
60 0334951 BOOT, Switch
64 0306799 L'WASHER,Bracket to hsg.
65 0306932 NUT
66 0333440 CLAMP, Battery cable This part replaces 0317755.
69 0319537 CLIP
70 0320790 BELLCRANK, Shift rod
73 0319563 SCERW, Lever to shaft
74 0311407 LOCKWASHER, Lever to shaft
75 0318950 BUSHING, Shift lever to motor cover, inner
76 0318951 BUSHING, Shift lever to c'case
77 0392878 SHIFT LEVER & Bracket to hsg.
78 0320931 LEVER, Shaft lever to shift lock link.
79 0308017 SCREW, Bellcrank to shift lever
80 0583051 GROUND LEAD ASSY.
81 0328289 SUPPORT BRACKET, Tilt lock port
82 0329046 THRUST MOUNT
83 0328290 PIN, Support bracket to swivel bracket
84 0325914 BUSHING, Stern bracket
86 0397736 BLOCK ASSY., Friction
90 0310540 RONDELLE, arbre de verrouillage de relevage, extérieur
91 0319050 LEVER, Reverse locking
92 0322949 LINK, Reverse lock
93 0338657 LINK, Shallow water drive This part replaces 0320426.
94 0320427 SPRING, Shallow water drive
95 0319279 SPRING, Reverse lock
96 0320428 SPRING, Reverse lock rod
97 0204293 WASHER, Hinge pin
98 0325017 NUT, Tilt lock pin
99 0319227 SCREW, Knob
100 0319047 PIN, Tilt lock to stern bracket
101 0328048 KNOB, Tilt & reverse lock lever
102 0393199 LEVER & SHAFT ASSY. Lock
103 0338563 TILT LOCK, Starboard This part replaces 0319134.
104 0604174 WASHER, Tilt bolt
106 0325721 GASKET, Cyl. & c'case to lower engine cover
108 0319280 SEA.,Exhaust housing to lower motor cover
109 0300364 LINK, Conical, tilt shaft
111 0319042 SCREW BRACKET AND CLAMPSCREW ASSY., Port
112 0303884 RONDELLE
113 0319699 THRUST WASHER, Stern bracket
114 0319787 BUSHING
115 0309738 PLATE STERN BRACKET
116 0319055 PIN, Link to bracket
118 0211387 DECAL Exh. hsg., Ev.
