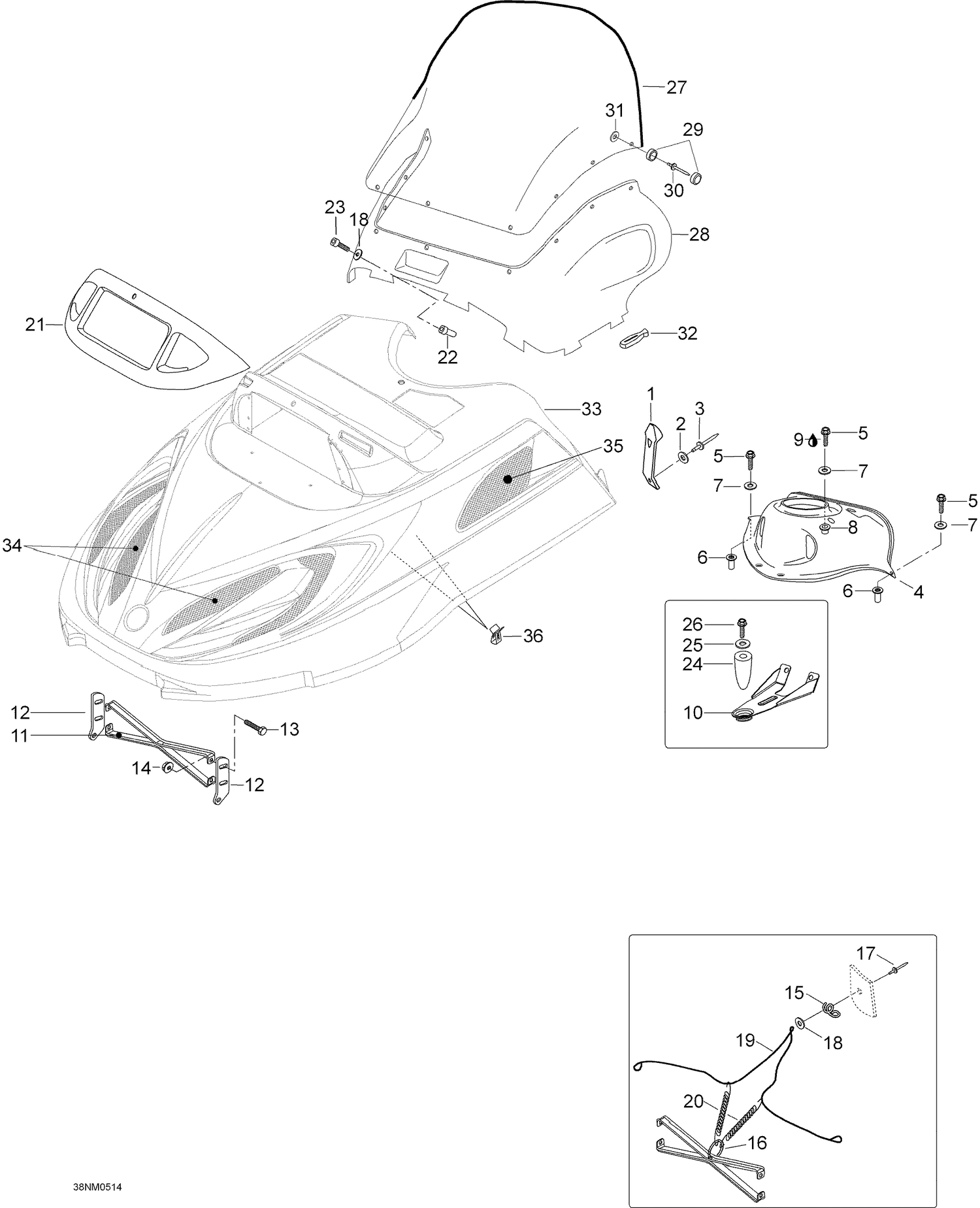

| Ref | Part Number | Description |
|---|
| 2 |
20008 |
Tähtialuslevy A5,3 |
| 3 |
36009 |
Rivet black 4.8x16 Al, long mand. |
| 4 |
605350277 |
Switch dash |
| 5 |
250000676 |
Forming Screw M5 x 16 This part replaces 732600030. |
| 6 |
28055 |
Vastamutteri |
| 7 |
20117 |
Washer |
| 8 |
547539 |
Tärinän eristin |
| 9 |
293800060 |
Liima Loctite 243, 10ml |
| 10 |
605350221 |
GUIDE PLATE - Call your local BRP dealership |
| 11 |
5246862 |
HOOD RENFORCER - Call your local BRP dealership |
| 12 |
517261100 |
UPPPER HINGE - Call your local BRP dealership |
| 13 |
40366 |
Hex. screw M5 x 16 |
| 14 |
233251434 |
Flanged Elastic Nut M5 This part replaces 33062. |
| 15 |
5442870 |
Retainer Cable Clip - Call your local BRP dealership |
| 16 |
415058300 |
RING - Call your local BRP dealership |
| 17 |
36005 |
RIVET 4.8X12 AL BLACK,(1 PAC <=> 50 PC) |
| 18 |
20008 |
Tähtialuslevy A5,3 |
| 19 |
605351372 |
Rajoitinvaijeri |
| 20 |
5442675 |
Vetojousi |
| 21 |
572079200 |
Skydd-strållkastare |
| 22 |
250100018 |
NUT M5 - Call your local BRP dealership This part replaces 28050. |
| 23 |
40358 |
ALLEN SCREW M5 X 30(1=10PCS) - Call your local BRP dealership |
| 24 |
5446857 |
Styrning pinne |
| 25 |
20038 |
Washer 6mm |
| 26 |
40375 |
LVI-skruv 6,3 x 25 |
| 27 |
539504 |
Windscreen |
| 28 |
605252350 |
Windshield lower part |
| 29 |
282000 |
Ruuvin kupu/pohja |
| 30 |
36002 |
Vetoniitti |
| 31 |
20062 |
Aluslevy A4.3 |
| 32 |
570023800 |
Tuulilasin kiinnityskumi |
| 34 |
5246261 |
GRILL - Call your local BRP dealership |
| 34 |
5246262 |
FRONT LH GRILL - Call your local BRP dealership |
| 35 |
5346263 |
Snönät bakre vänst./hö |
| 35 |
5347250 |
Snönät bakre hög. |
