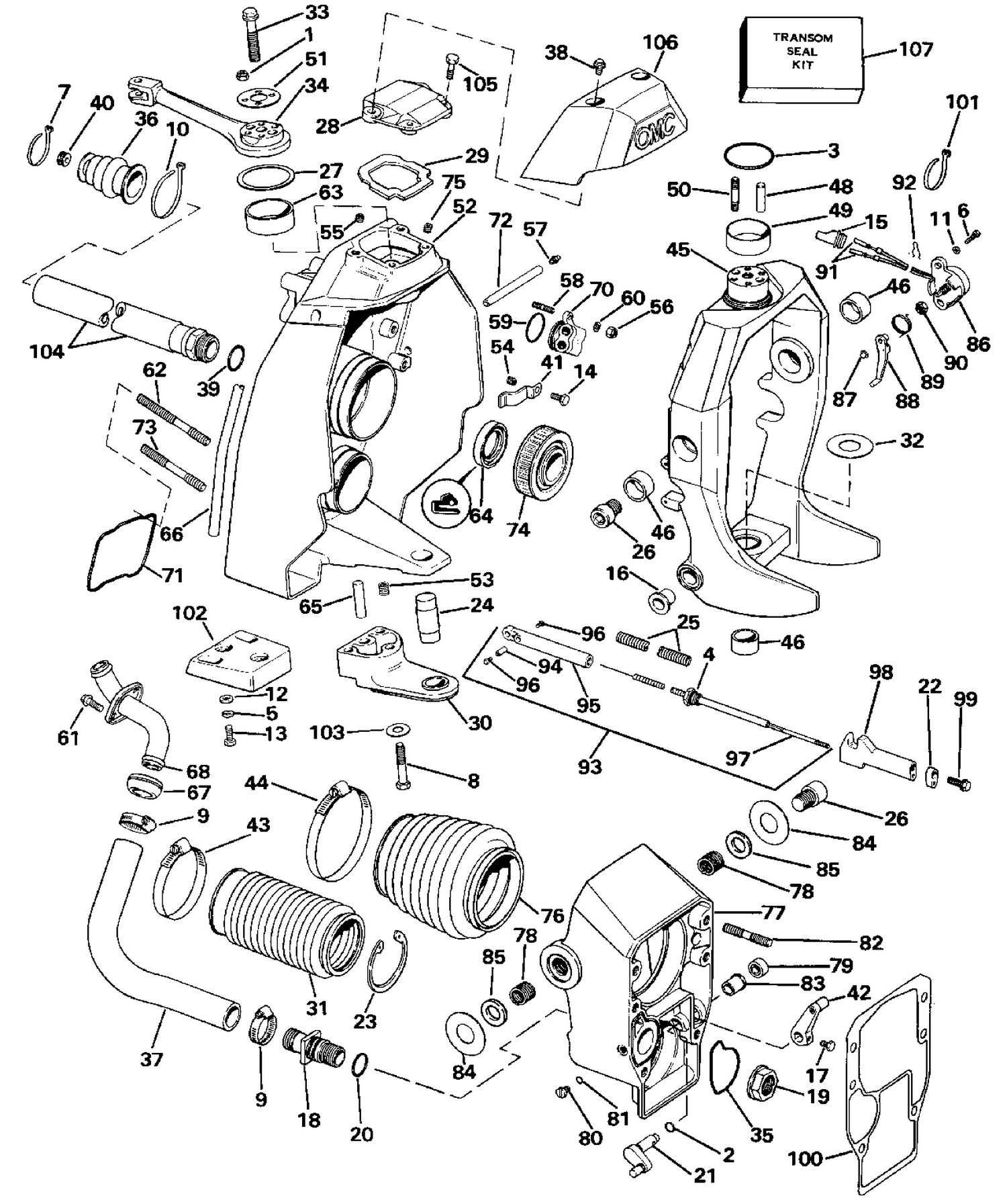

TRANSOM MOUNT

TRANSOM MOUNT

Parts (83)

RefPart NumberDescription
9 0912627 CLAMP
10 0320107 ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet
13 0329055 SCREW, Anode
16 0910855 BUSHING, Pivot pin
18 3852533 NIPPLE, Water inlet This part replaces 0911716.
19 3852534 NUT, Nipple This part replaces 0911717.
20 0911718 O-RING, Nipple
21 0915796 BELLCRANK, Shift This part replaces 0911722.
22 0913664 RETAINER, Shift cable
23 3852665 RETAINER, Exhaust boot This part replaces 0912992.
24 3852728 SHAFT, Steering pivot This part replaces 0913542.
25 3852553 Tubing This part replaces 0911803.
26 3852854 PIVOT SCREW This part replaces 0911806.
27 3852554 THRUST WASHER, Steering arm This part replaces 0911807.
28 3854577 CAP & GASKET This part replaces 0985438.
29 3852677 GASKET, Cap This part replaces 0913212.
30 3858192 BRACKET, Steering support This part replaces 0912391.
31 0914036 BELLOWS, Exhaust
32 3852557 THRUST WASHER This part replaces 0911818.
33 3852591 SCREW, Steering arm This part replaces 0912306.
34 0911821 STEERING ARM
35 3852560 SEAL, Water passage This part replaces 0911823.
36 0911826 SEAL, Shift cable
37 0911830 HOSE, Water inlet
38 3852682 SCREW, Cover This part replaces 0913255.
39 0911871 O-RING, Oil line
40 0911876 GROMMET, Shift cable
41 0911900 CLAMP, Oil line
42 0983898 SHIFT LEVER & ROLLER
43 0912628 CLAMP, Exhaust
44 3852604 CLAMP, Exhaust This part replaces 0912667.
45 0986463 GIMBAL ASSY This part replaces 0985825.
46 3852544 BEARING, Steering & tilt This part replaces 0911787.
48 3852545 DOWEL, Steering arm This part replaces 0911789.
49 3852571 SLEEVE, Gimbal This part replaces 0911901.
50 3852588 STUD This part replaces 0912240.
51 3852585 PLATE, Steering arm This part replaces 0912155.
52 0985963 GIMBAL HOUSING ASSY
53 0910935 INSERT, 3/8-16
54 0910901 INSERT
55 3852567 INSERT This part replaces 0911858.
59 0322501 O-RING, Manifold block
60 0329241 RONDELLE
61 0341013 SCREW, Cover This part replaces 0908668.
62 3852546 STUD, Transom, long This part replaces 0911792.
63 3852547 BEARING, Steering This part replaces 0911794.
64 3852548 SEAL, Driveshaft This part replaces 0911795.
65 3852549 PIN, Steering support This part replaces 0911796.
66 3852550 SEAL, Transom This part replaces 0911797.
67 3852556 BUSHING, Water tube This part replaces 0911815.
68 3853880 WATER TUBE & RETAINER This part replaces 0985879.
70 3852559 MANIFOLD BLOCK This part replaces 0911822.
71 0911831 SEAL, Exhaust cover
72 3852564 TUBE, Grease This part replaces 0911843.
73 3852576 STUD, Transom, short This part replaces 0911920.
74 3853807 BEARING ASSY., U-joint This part replaces 0983937.
75 3852526 INSERT This part replaces 0911510.
76 3854127 BELLOWS, U-joint This part replaces 0983973.
77 0985631 PIVOT HOUSING ASSY
78 3852698 INSERT, Pivot screw This part replaces 0913412.
79 0984186 PLUG, Bellcrank
80 3852536 PLUG, Water drain This part replaces 0911719.
81 0911311 O-RING, Plug
82 3852551 STUD, Pivot to gear housing This part replaces 0911798.
83 0911732 BUSHING, Bellcrank
84 3852558 WASHER, Gimbal to pivot hsg. This part replaces 0911820.
85 3852697 THRUST WASHER, Pivot screw This part replaces 0913411.
86 0984748 TRIM SENDER ASSY
88 0911800 ARM
89 3852577 SPRING This part replaces 0911928.
92 3852555 RETAINER, Plug This part replaces 0911809.
93 0987661 SHIFT CABLE ASSY. This part replaces 0985587.
94 0318606 CABLE CLAMP
95 0914742 CASING GUIDE This part replaces 0912136.
96 0912304 SET SCREW
97 0984168 CORE WIRE
98 0984016 GUIDE, Shift cable
99 0341013 SCREW, Cover This part replaces 0908668.
100 0915840 GASKET, Gear housing to pivot This part replaces 0911836.
102 0984547 ANODE & INSERT ASSY
104 0984199 SLEEVE & CONNECTOR ASSY
105 3852473 SCREW, Cap to gimbal This part replaces 0909636.
106 0985403 COVER & INSERT
