Parts Catalog

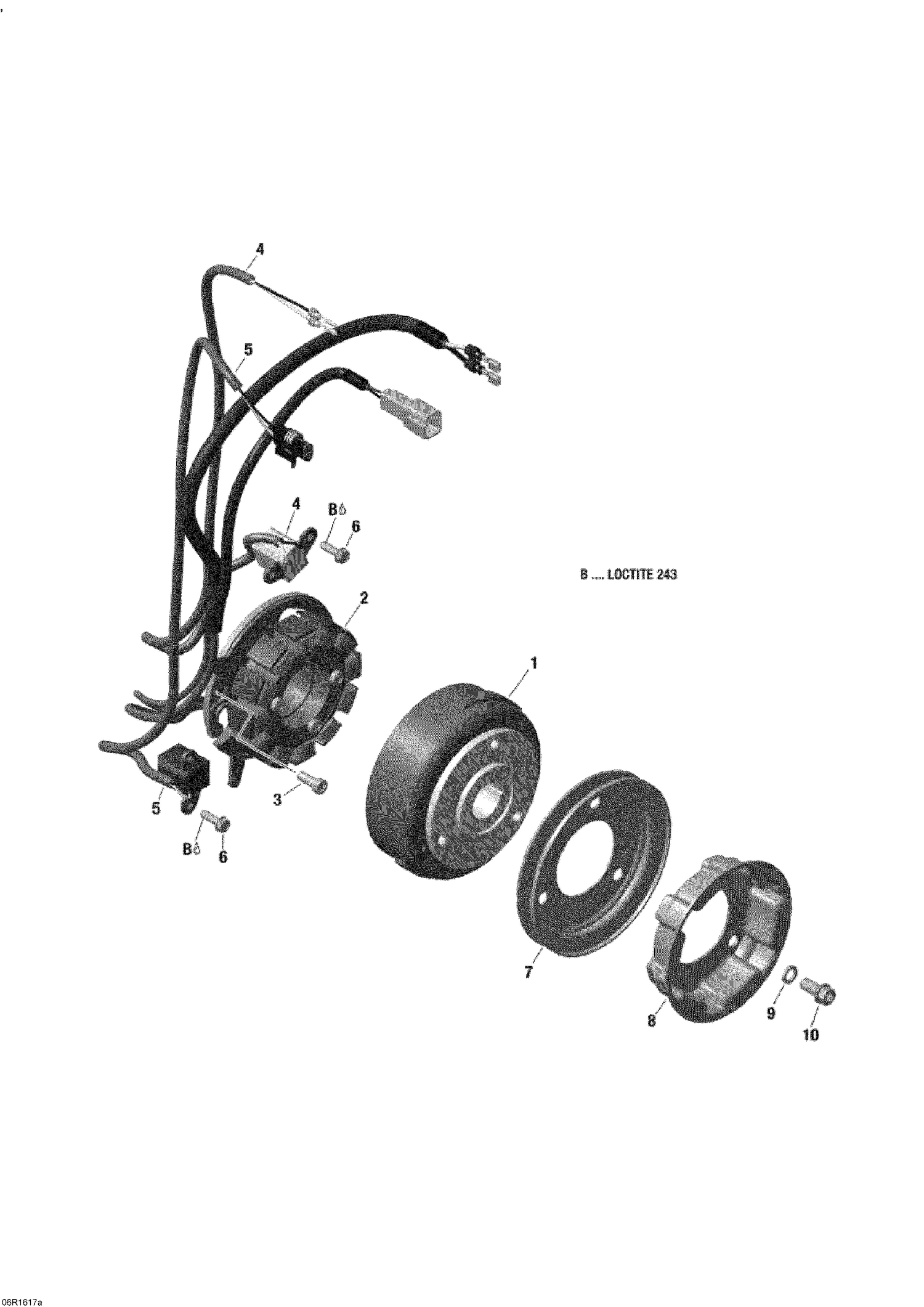

03- Magneto - 550F

Parts (7)

Ref	Part Number	Description
1	420889376	Flywheel
2	420889367	Stator Plate
4	420665163	Pick-Up
5	420665161	Pick-Up
7	420980486	V-Belt Pulley
8	420852414	Rope Sheave
9	420845311	Lock Washer
