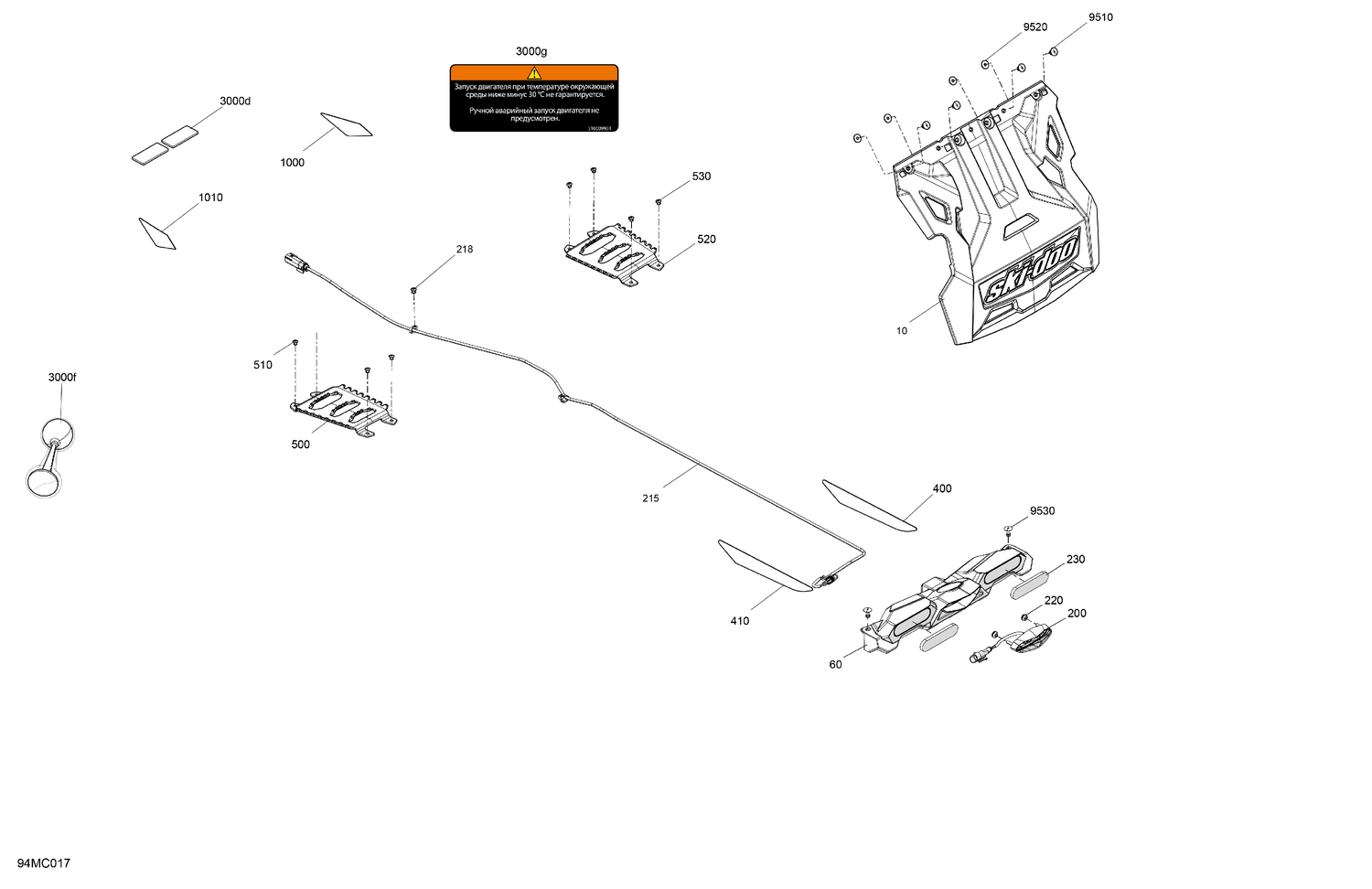

09- Miscellaneous - Utilities
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 520002014 | Snow Guard |
| 60 | 520002416 | Light Fairing |
| 200 | 520002636 | Tail Light |
| 215 | 515179259 | Taillight Wiring Harness |
| 218 | 390402200 | Pop Rivet 3/16" |
| 220 | 293720101 | Grommet |
| 230 | 705015551 | Red, Reflector |
| 400 | 861805523 | Yellow, LH/RH Rear Reflector Kit |
| 410 | 861805523 | Yellow, LH/RH Rear Reflector Kit |
| 1000 | 520002343 | RH Front Reflector |
| 1010 | 520002344 | LH Front Reflector |
| 3000d | 520002680 | Amber, Reflector |
| 3000f | 549011291 | Horn |
| 3000g | 516009951 | Warning Decal, Security |
| 9510 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 9520 | 517124300 | Washer |
