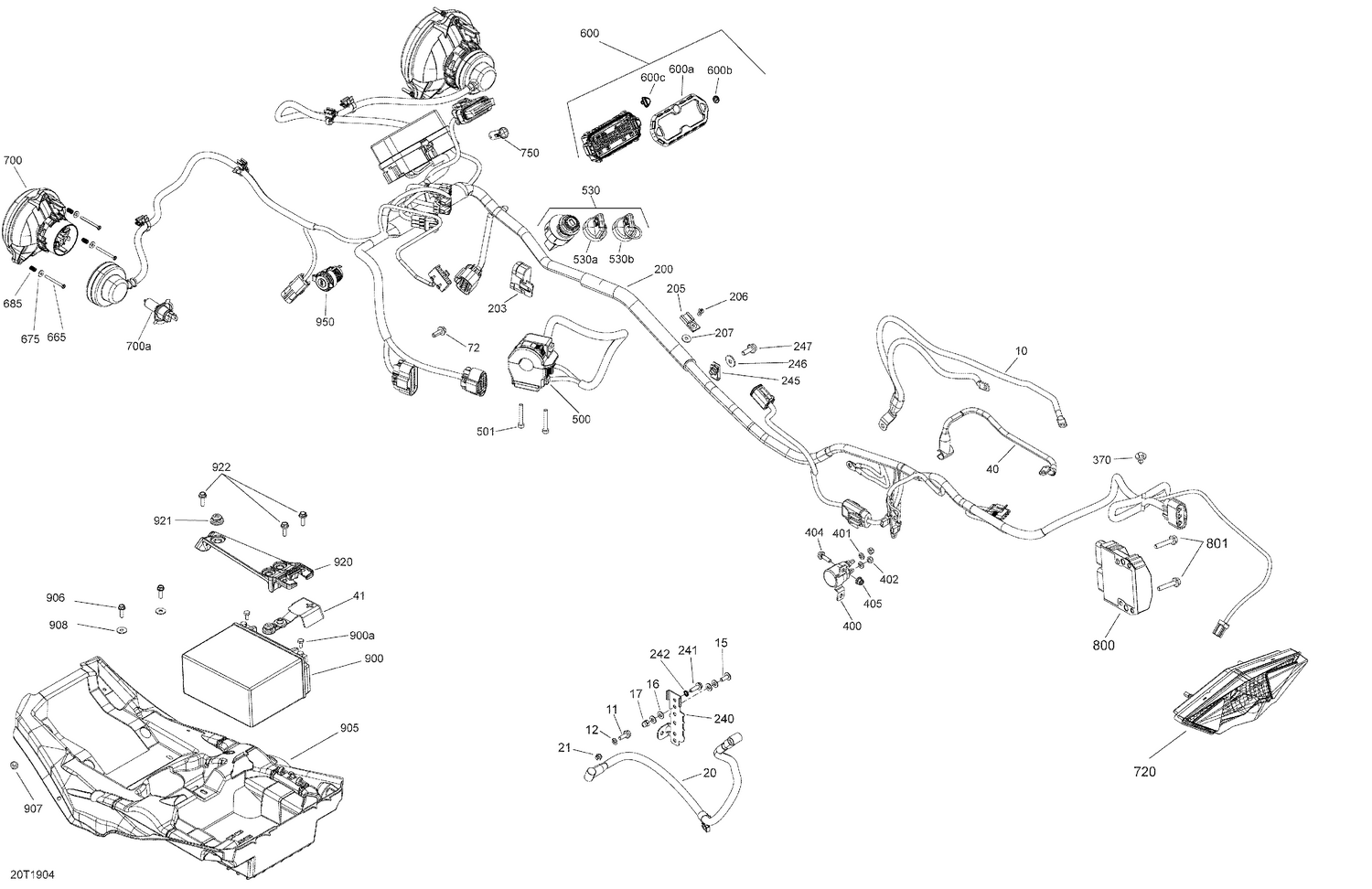

10- Electrical - 570 EFI - Package DPS & XMR

Parts (44)

Ref	Part Number	Description
10	710004382	Ground Cable
11	207561644	Hex. Flange Screw M6 X 16, Scotch Grip
12	234161601	Lock Washer Helical M6
15	250000717	Torx Head Screw M6 X 16
16	224061121	Flat Washer
17	232361493	Domed Nut M6
20	710004377	Positive Cable
21	232561414	Elastic Stop Nut M6
40	710004376	Positive Cable
41	710006729	Battery Cable Cap This part replaces 710002569.
200	710006172	Electric Harness
205	270000141	Clip
206	390402300	Pop Rivet 3/16"
207	391301600	Washer
240	710004118	Connector Bracket
241	210262040	Hex. Flange Screw M6 X 20
242	234461608	External Serrated Lock Washer 6 mm
370	293730040	Mount Dart
400	710007777	Starter Relay This part replaces 710001364.
401	234161601	Lock Washer Helical M6
402	232561414	Elastic Stop Nut M6
404	207662054	Hex. Flange Screw M6 X 20
405	233261414	Hex. Flange Elastic Nut M6 x 1.0
500	710006229	Multi Fonction Control
501	205053588	Socket Head Screw M5 X 35
530a	Not	Available As Spare Part - Blank Key
530b	Not	Available As Spare Part - Key, groove on left side
600	710005553	Speedometer
665	250000718	Hex. Screw K40 X 45
675	517225900	Flat Washer
685	517168600	Spring
700a	710000871	Bulb, 12V 35/35W
720	710001203	Tail Light Housing Ass'y
750	710003910	Pilot Lamp Cap
800	710010539	Voltage Regulator This part replaces 710005569.
801	207563034	Hex. Flange Screw M6 X 30, Scotch Grip
900a	250000282	Battery Bolt Kit
905	710008370	Battery Support This part replaces 710005528.
906	210262050	Hexagonal Head Screw
907	293830005	Rubber Bumper
908	234062670	Stainless Steel Flat Washer
920	710009129	Retaining Plate This part replaces 710002404.
921	705014429	Rubber Stopper This part replaces 705003666.
922	207662054	Hex. Flange Screw M6 X 20
