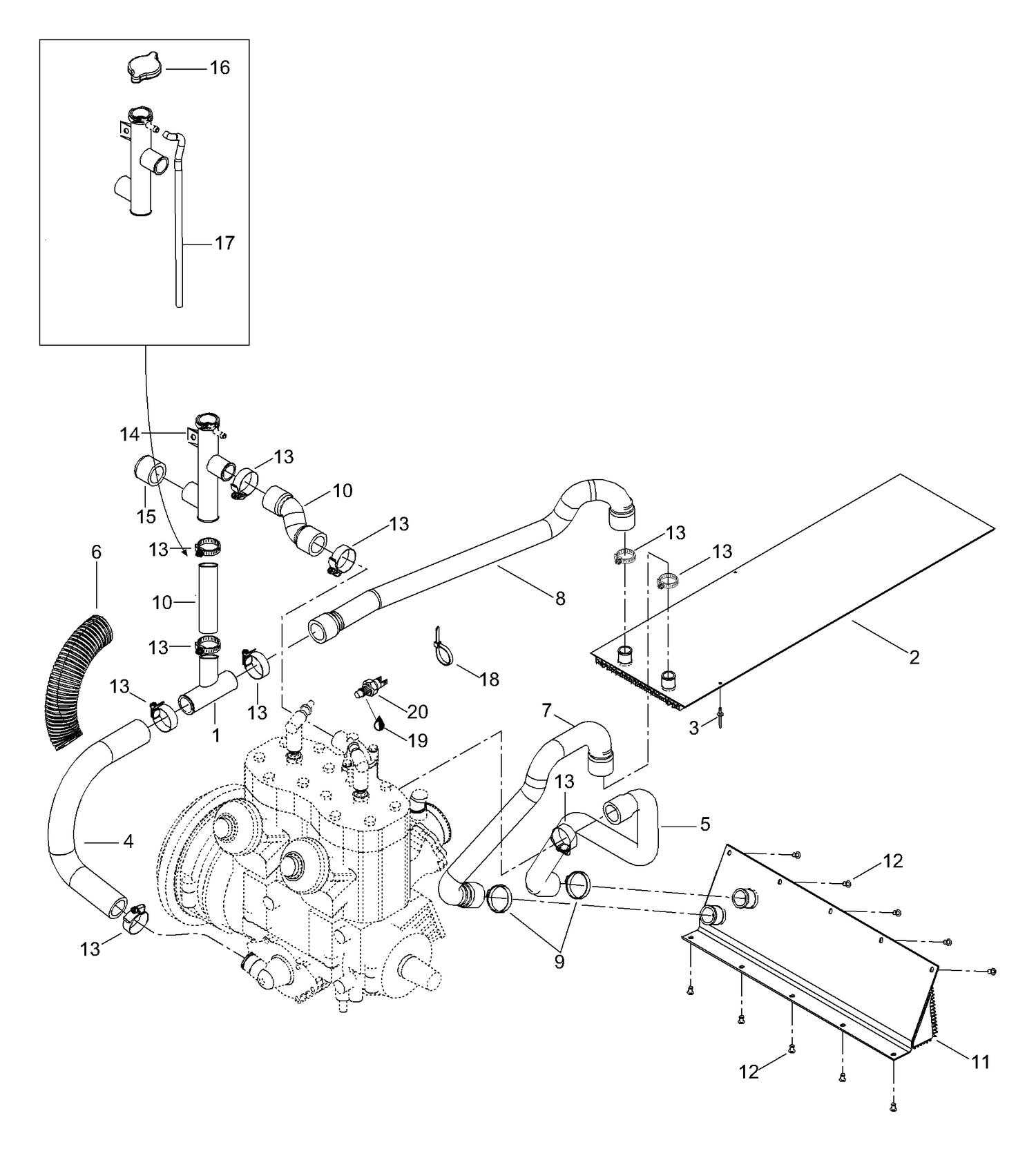

| Ref | Part Number | Description |
|---|
| 1 |
509000219 |
T-Fitting This part replaces 414619900. |
| 2 |
5246130 |
Radiator |
| 3 |
36083 |
Rivet |
| 4 |
509000135 |
ENGINE INLET HOSE - Call your local BRP dealership |
| 5 |
509000046 |
ENGINE OUTLET HOSE - Call your local BRP dealership |
| 6 |
390003 |
Protective shield |
| 7 |
5346349 |
Hose |
| 8 |
5346350 |
Radiator inlet hose |
| 9 |
509000045 |
Hose clamp |
| 10 |
509000112 |
Hose |
| 11 |
517297100 |
Front radiator |
| 12 |
36489 |
Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 13 |
408800400 |
TRIDON GEAR CLAMP - Call your local BRP dealership |
| 14 |
414684600 |
Neck-filler |
| 15 |
5441703 |
Hose plug |
| 16 |
509000187 |
Pressure Cap This part replaces 414684700. |
| 17 |
39038 |
Overflow hose 9.5/6.5 |
| 18 |
293750008 |
Tie-Rap 368 mm This part replaces 27100. |
| 19 |
293800018 |
SEALANT LOCTITE 592 - Call your local BRP dealership |
