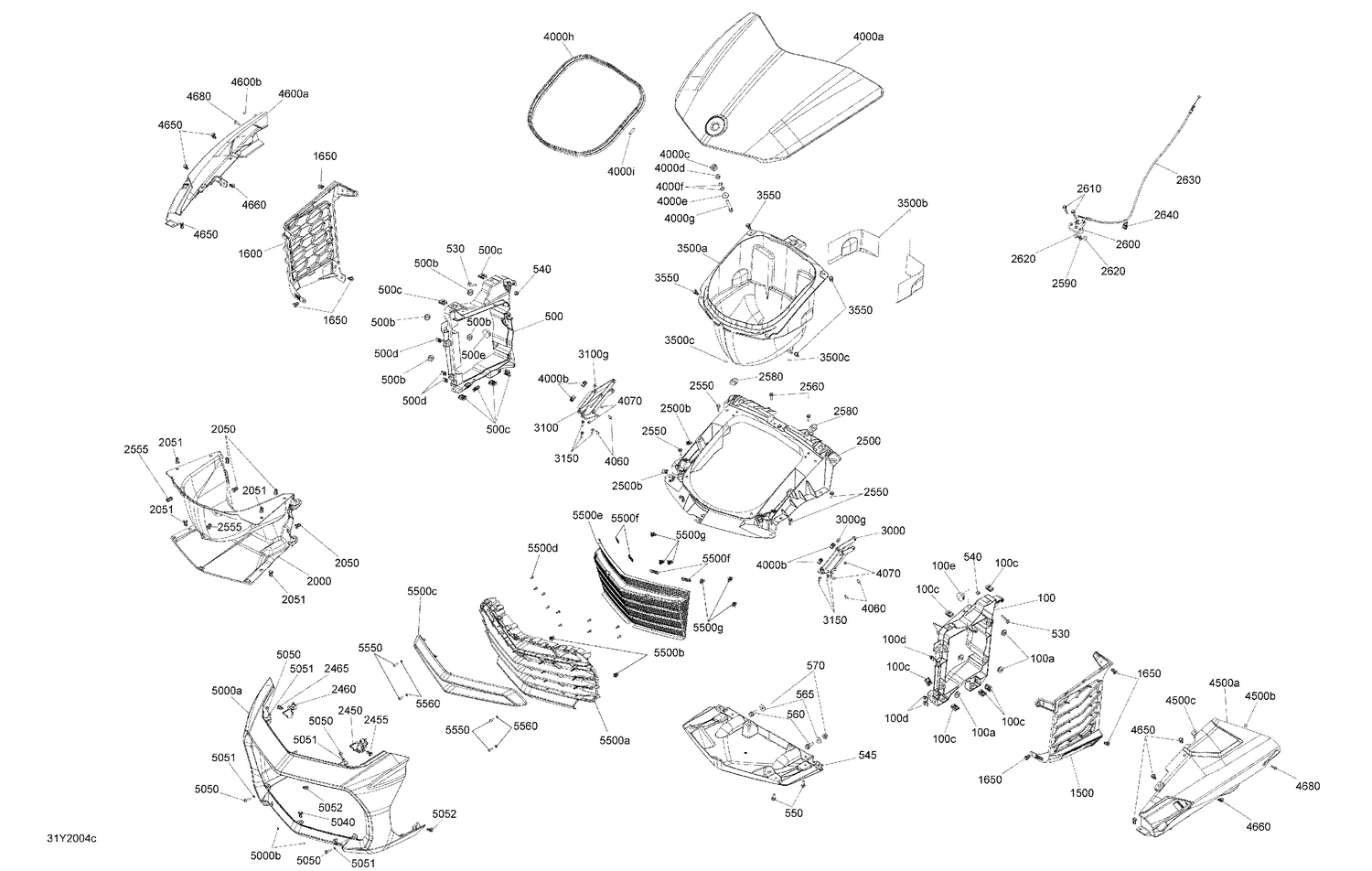

09- Body And Accessories Storage Tray
Parts (72)
| Ref | Part Number | Description |
|---|---|---|
| 100b | 709000582 | Grommet |
| 100c | 250100208 | Panel Nut M6 X 1.0 |
| 100d | 250000958 | Panel Nut M5 X 0.8 |
| 100e | 414916600 | Black, Nylon Cap |
| 500b | 709000582 | Grommet |
| 500c | 250100208 | Panel Nut M6 X 1.0 |
| 500d | 250000958 | Panel Nut M5 X 0.8 |
| 500e | 414916600 | Black, Nylon Cap |
| 530 | 207663054 | Hex. Flange Screw M6 X 30 |
| 540 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 545 | 708200405 | Front Skid Plate |
| 550 | 207662044 | Hex. Flange Screw M6 X 20 |
| 560 | 207682534 | Hex. Flange Screw M8 X 25 |
| 565 | 234082430 | Flat Washer M8 |
| 570 | 233281434 | Hex. Flange Elastic Nut M8 |
| 1500 | 708200860 | LH Side Vent |
| 1600 | 708200859 | RH Side Vent |
| 1650 | 293150230 | Tuflok Plastic Rivet |
| 2000 | 708200362 | Front Air Duct Module |
| 2050 | 293150230 | Tuflok Plastic Rivet |
| 2051 | 293150230 | Tuflok Plastic Rivet |
| 2450 | 708200493 | LH Front Union Link |
| 2455 | 293150230 | Tuflok Plastic Rivet |
| 2460 | 708200494 | RH Front Union Link |
| 2465 | 293150230 | Tuflok Plastic Rivet |
| 2500b | 250000958 | Panel Nut M5 X 0.8 |
| 2550 | 207662044 | Hex. Flange Screw M6 X 20 |
| 2555 | 293150230 | Tuflok Plastic Rivet |
| 2560 | 210262050 | Hexagonal Head Screw |
| 2580 | 705000321 | Oval Washer |
| 2590 | 705003911 | Spring |
| 2600 | 705007379 | Latch |
| 2610 | 207663544 | Hex. Flange Screw M6 X 35 |
| 2620 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 2630 | 517305742 | Hood Cable |
| 2640 | 710002896 | Tie-Rap Clip |
| 3000g | 234051670 | Flat Washer M5 |
| 3100g | 234051670 | Flat Washer M5 |
| 3150 | 250000715 | Torx Truss Screw M5 X 20 |
| 3500a | 708200403 | Front Storage Bin |
| 3500b | 708200490 | Heat Shield Sheet |
| 3500c | 705006633 | Stopper |
| 3550 | 293150230 | Tuflok Plastic Rivet |
| 4000b | 250000958 | Panel Nut M5 X 0.8 |
| 4000c | 269501943 | Elastic Nut Housing M8 |
| 4000d | 232581200 | Hex. Elastic Nut M8 Brass |
| 4000e | 234082410 | Flat Washer 8 mm |
| 4000f | 232180600 | Hex. Jam Nut M8 |
| 4000g | 705002223 | Lug |
| 4000h | 219704371 | Neoprene Seal 3000 mm Long |
| 4000i | 219704424 | Vinyl Tubing, Low Temp 3000Mm Long |
| 4060 | 250000578 | Torx Truss Screw M5 X 16, T25 |
| 4070 | 234051670 | Flat Washer M5 |
| 4500b | 705006634 | Polyurethane Stopper |
| 4500c | 293830143 | Rubber Pad |
| 4600b | 705006634 | Polyurethane Stopper |
| 4650 | 293150230 | Tuflok Plastic Rivet |
| 4660 | 293150230 | Tuflok Plastic Rivet |
| 4680 | 250000715 | Torx Truss Screw M5 X 20 |
| 5000b | 705006633 | Stopper |
| 5040 | 293150230 | Tuflok Plastic Rivet |
| 5050 | 250000715 | Torx Truss Screw M5 X 20 |
| 5051 | 234051670 | Flat Washer M5 |
| 5052 | 293150230 | Tuflok Plastic Rivet |
| 5500a | 708200404 | Front Grille |
| 5500b | 517302785 | Edge Clip |
| 5500c | 708200534 | Front Mouth |
| 5500d | 250000577 | Torx Truss Screw K40 X 12 |
| 5500e | 708200393 | Front Deflector Grille |
| 5500f | 705004838 | Flat Clip |
| 5500g | 517302785 | Edge Clip |
| 5550 | 250000578 | Torx Truss Screw M5 X 16, T25 |
