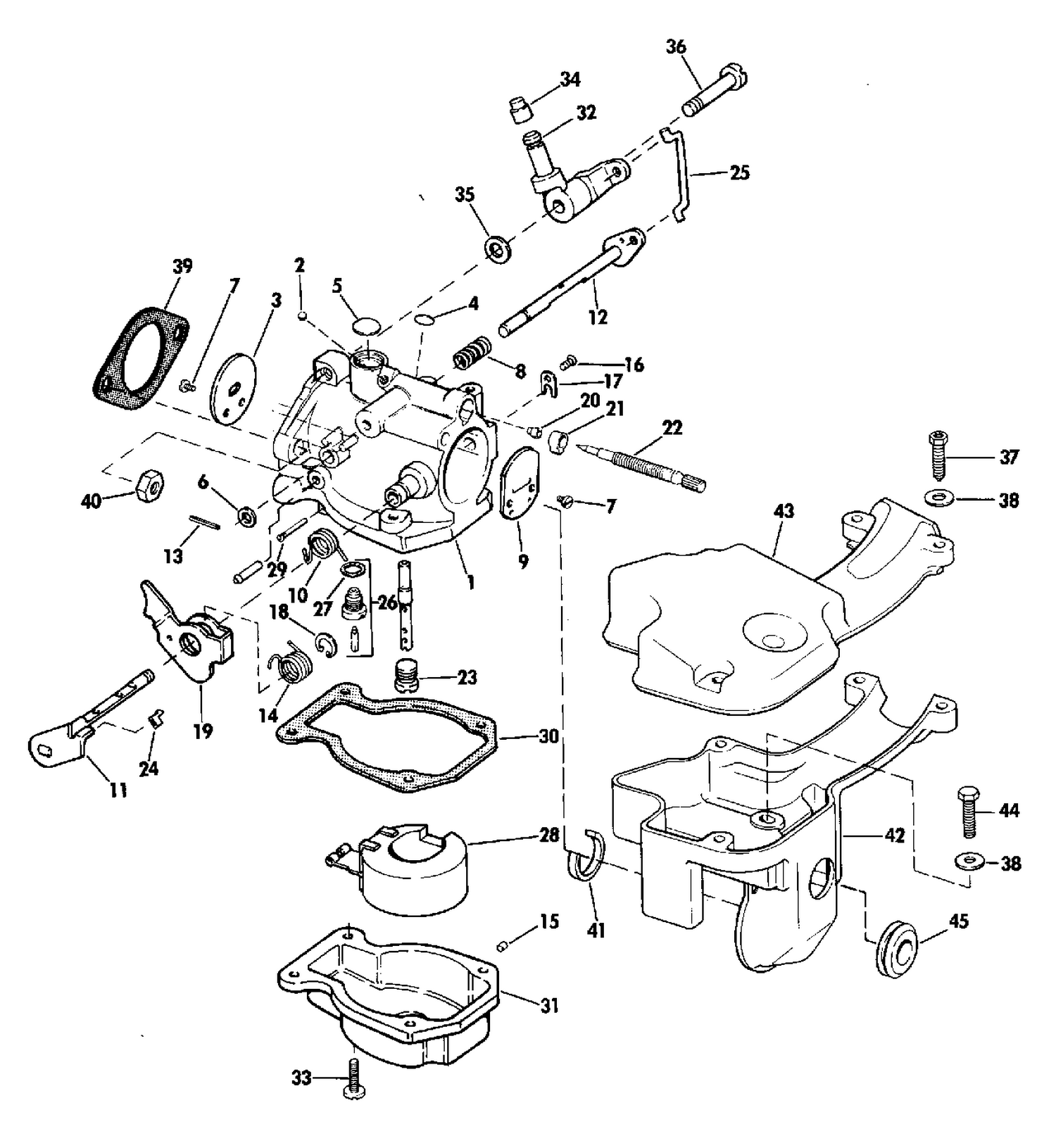

| Ref | Part Number | Description |
|---|
| 3 |
0319017 |
VALVE, Throttle |
| 3 |
0320435 |
VALVE, Throttle |
| 8 |
0387001 |
SPRING, Pkg |
| 9 |
0320267 |
VALVE, Choke |
| 11 |
0386168 |
CHOKE SHAFT AND LEVER ASSEMBLY |
| 12 |
0386917 |
THROTTLE SHAFT AND LEVER ASSEMBLY |
| 14 |
0321734 |
SPRING Choke override This part replaces 0319022. |
| 16 |
0307191 |
SCREW, Choke shaft retaining clip |
| 20 |
0314166 |
BEARING, Needle valve |
| 21 |
0315232 |
RETAINER , Needle valve stbd |
| 22 |
0386152 |
NEDDLE, Slow speed |
| 23 |
0319016 |
ORIFICE PLUG |
| 24 |
0318536 |
SLEEVE |
| 25 |
0330192 |
LINK, Cam follower This part replaces 0312830. |
| 30 |
0338878 |
GASKET This part replaces 0319011. |
| 31 |
0330881 |
FLOAT CHAMBER This part replaces 0319010. |
| 32 |
0319014 |
CAM FOLLOWER |
| 33 |
0319008 |
GROMMET, Cable, lower motor cover |
| 34 |
0318953 |
ROLLER, Cam follower |
| 39 |
0318932 |
JOINT |
| 40 |
0328742 |
NUT This part replaces 0306338. |
| 41 |
0319287 |
SEAL, Air silencer |
| 42 |
0322120 |
BASE, Air silencer This part replaces 0319289. |
| 43 |
0330581 |
COVER, Air silencer This part replaces 0319290. |
| 44 |
0314496 |
SCREW, Air silencer |
| 0320434 |
0320434 |
CAM, Throttle control |
| 0386958 |
0386958 |
CARBURETOR ASSEMBLY |
