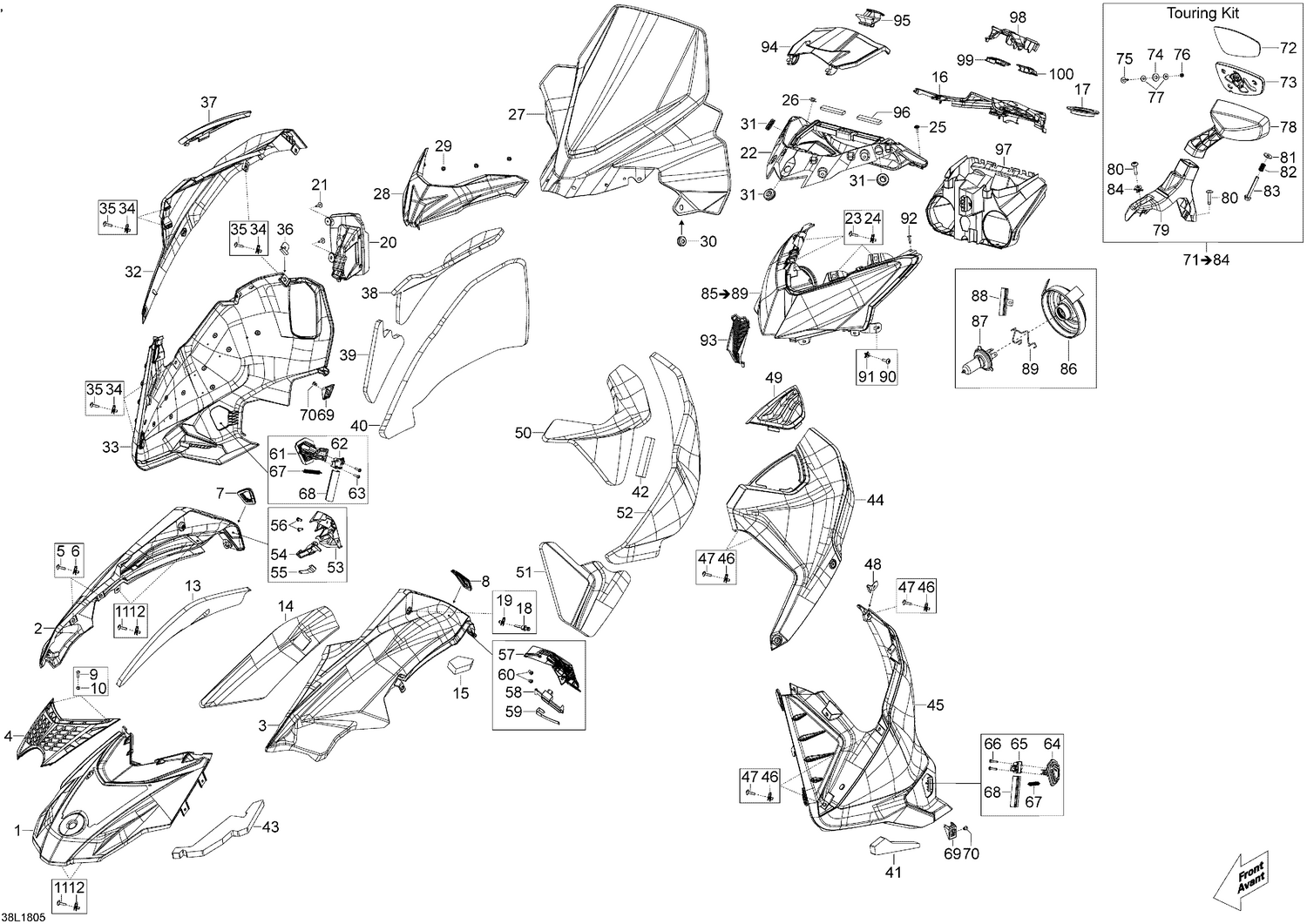

09- Hood 49RANGER - 600HO E-TEC
Parts (80)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 517305571 | Hood, White |
| 2 | 517305416 | White RH Hood |
| 3 | 517305417 | White LH Hood |
| 4 | 517305362 | Hood Grill |
| 5 | 250000528 | Torx Screw M5 X 20 |
| 6 | 250000958 | Panel Nut M5 X 0.8 |
| 7 | 517305344 | Rubber Button RH |
| 8 | 517305345 | Rubber Button LH |
| 9 | 235551454 | Button Head Torx Screw M5 x 14 |
| 11 | 250000528 | Torx Screw M5 X 20 |
| 12 | 250000958 | Panel Nut M5 X 0.8 |
| 13 | 517305481 | Foam |
| 14 | 517305482 | Foam |
| 15 | 517305824 | Foam |
| 16 | 517305205 | Console Rear |
| 17 | 517304518 | Console Nut |
| 18 | 517305531 | Knob |
| 19 | 250000958 | Panel Nut M5 X 0.8 |
| 20 | 517305060 | Deep Black, RH Console |
| 21 | 250000725 | Screw M4 X 16 |
| 23 | 250000528 | Torx Screw M5 X 20 |
| 24 | 250000958 | Panel Nut M5 X 0.8 |
| 25 | 250000587 | Torx Screw M5 X 26 |
| 28 | 517305307 | Support |
| 29 | 732610072 | Push Nut |
| 30 | 517307161 | Grommet This part replaces 517302841. |
| 31 | 517306421 | Grommet |
| 32 | 517305425 | White RH Panel |
| 33 | 517305249 | Black RH Panel |
| 34 | 250000958 | Panel Nut M5 X 0.8 |
| 35 | 250000528 | Torx Screw M5 X 20 |
| 36 | 517305515 | Guide Plate |
| 37 | 517305251 | Grill |
| 38 | 517306358 | Foam |
| 39 | 517306359 | Foam |
| 40 | 517306360 | Foam |
| 41 | 517305813 | Foam |
| 42 | 517305814 | Foam |
| 43 | 517305815 | Foam |
| 44 | 517305426 | White LH Panel |
| 45 | 517305253 | Black LH Panel |
| 46 | 250000958 | Panel Nut M5 X 0.8 |
| 47 | 250000528 | Torx Screw M5 X 20 |
| 48 | 517305515 | Guide Plate |
| 49 | 517305254 | Grill |
| 50 | 517305488 | Foam |
| 51 | 517305489 | Foam |
| 52 | 517305490 | Foam |
| 53 | 517305315 | Lock Body Rh. |
| 54 | 517306019 | Lock Arm |
| 55 | 517305317 | Lock Spring |
| 56 | 205951046 | Socket Head Screw M5 X 10 |
| 57 | 517305319 | Lock Body Lh. |
| 58 | 517306019 | Lock Arm |
| 59 | 517305317 | Lock Spring |
| 60 | 205951046 | Socket Head Screw M5 X 10 |
| 61 | 517305760 | RH Side Panel Bottom Lock |
| 62 | 517305761 | RH Bottom Lock Fixing Part |
| 63 | 250000451 | Screw-pt.torx Flange K40 X 20 |
| 64 | 517305758 | LH Side Panel Bottom Lock |
| 65 | 517305759 | LH Bottom Lock Fixing Part |
| 66 | 250000451 | Screw-pt.torx Flange K40 X 20 |
| 67 | 517305535 | Side Panel Bottom Lock Spring |
| 68 | 517305452 | Bottom Lock Sleeve |
| 69 | 517305323 | Side Panel Support |
| 70 | 390909100 | Avex Rivet |
| 86 | 219400070 | Cap |
| 87 | 515176274 | Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 88 | 219800282 | Holder Bracket |
| 89 | 219800281 | Spring |
| 90 | 250000528 | Torx Screw M5 X 20 |
| 91 | 250100035 | Jack Nut M5 |
| 92 | 250000725 | Screw M4 X 16 |
| 93 | 517305350 | Cap |
| 94 | 517304912 | Deep Black, Upper Storage Access Cover |
| 95 | 517304917 | Cover Latch |
| 96 | 517305157 | Seal Joint |
| 97 | 517305095 | Deep Black, Trunk |
| 98 | 517304970 | Deep Black, Console Support |
| 99 | 517305147 | Deep Black, Support Console Cap |
