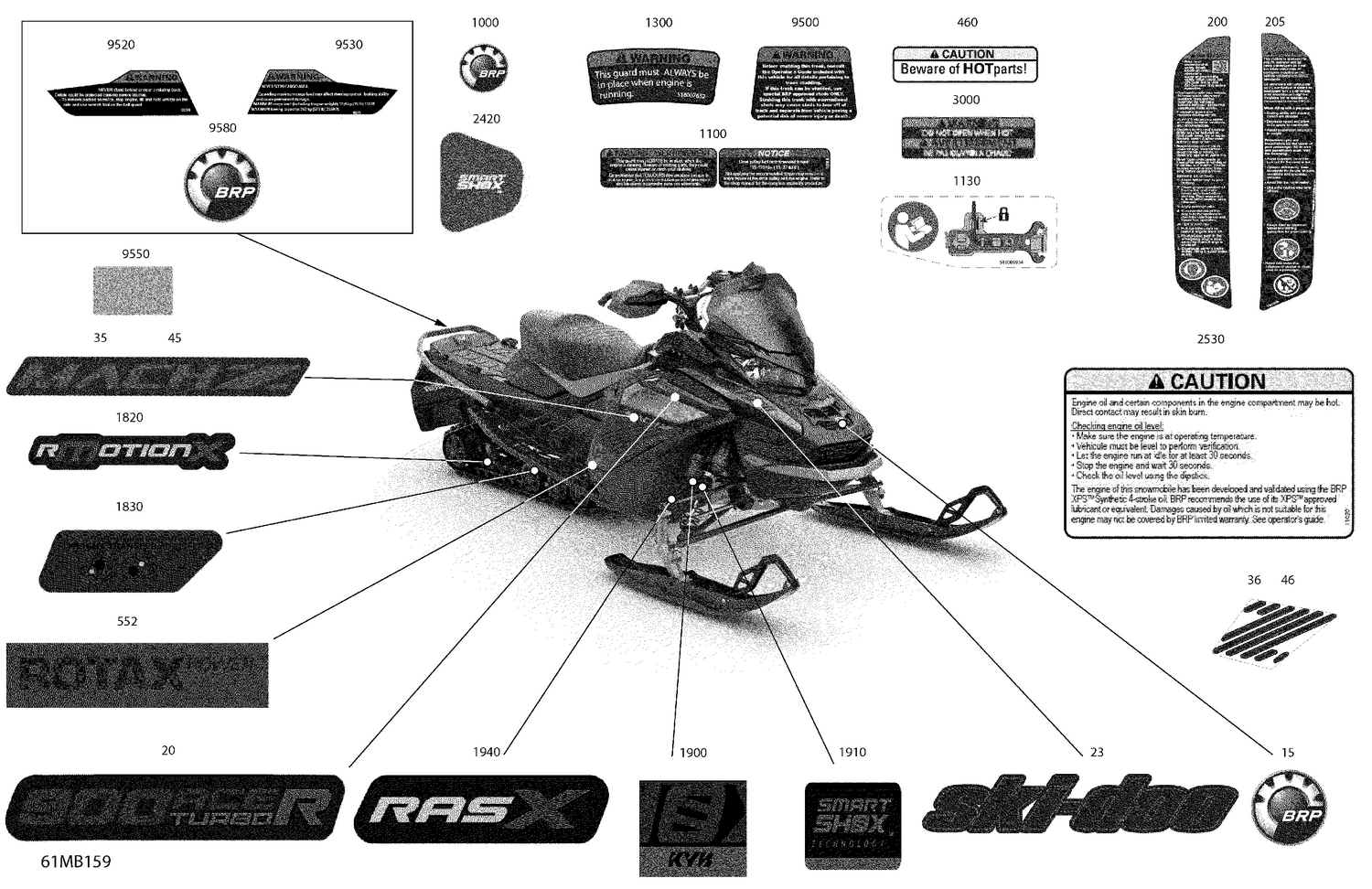

07- Body - Decals
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 15 | 704909039 | BRP Logo Emblem 35 MM UV This part replaces 516010443. |
| 20 | 516010887 | Decal 900 ACE Turbo R |
| 23 | 516009080 | Deep Black, SKI-DOO Decal |
| 35 | 516010886 | RH Panel Decal "MACH Z" |
| 36 | 516011610 | Decal_Panel Ctrl R This part replaces 516010889. |
| 45 | 516010885 | LH Panel Decal "MACH Z" |
| 46 | 516011609 | Decal_Panel Ctrl L This part replaces 516010888. |
| 200 | 516010925 | LH General Warning Label |
| 205 | 516010926 | RH General Warning Label |
| 460 | 516005280 | Caution Decal Hot Parts |
| 552 | 516011596 | Decal ROTAX POWER This part replaces 516010192. |
| 1000 | 516010651 | BRP Logo 13 MM |
| 1100 | 516010898 | Clutch Instruction Label |
| 1130 | 516009984 | Decal Tool |
| 1300 | 516007652 | Engine Guard Warning Decal |
| 1820 | 516010174 | Runner Decal |
| 1830 | 516011021 | LH Adjustment Instruction Label |
| 1900 | 516010902 | Decal "KYB" |
| 1910 | 516010901 | Decal "Smart Shox Technology" |
| 1940 | 516010603 | Decal Suspension "RASX" |
| 2420 | 516010904 | Decal "Smart Shox" |
| 2530 | 516011020 | Oil Level Label |
| 3000 | 516005904 | Warning Decal |
| 9500 | 516007645 | Rear Track Warning Decal |
| 9520 | 516008594 | LH Safety Label |
| 9530 | 516010575 | Cargo Load Instruction Label |
| 9550 | 516009954 | Protective Decal |
