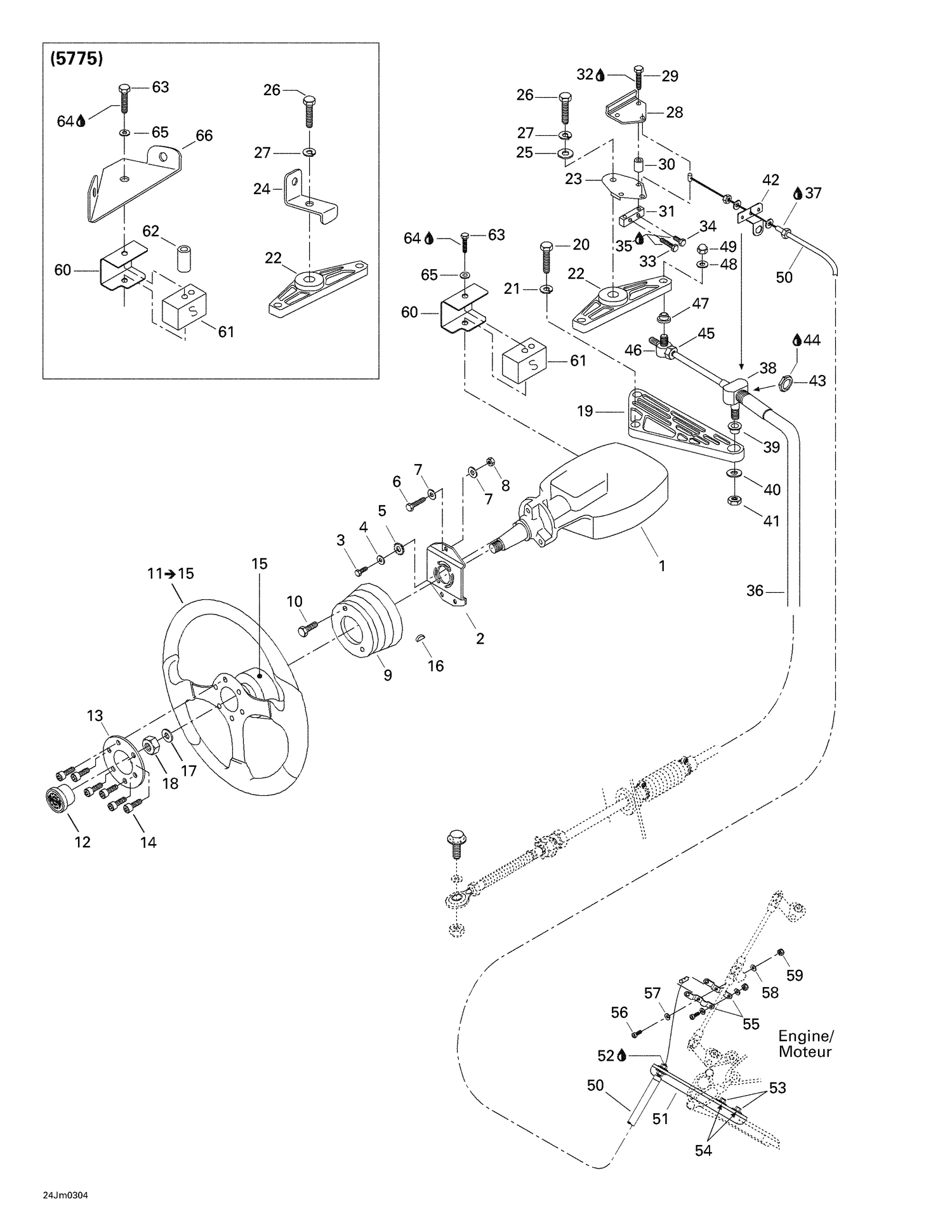

| Ref | Part Number | Description |
|---|
| 1 |
204390244 |
HELM ASS'Y - Call your local BRP dealership |
| 2 |
277000383 |
Support |
| 3 |
211000050 |
HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP - Call your local BRP dealership |
| 4 |
234062600 |
Flat Washer M6, Stainless |
| 5 |
234481608 |
Serrated Lock Washer 8 mm |
| 6 |
207163060 |
Hex. Screw M6 X 30 |
| 7 |
234061600 |
Stainless Flat Washer M6 |
| 8 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 9 |
204390030 |
COLLAR, BLACK - Call your local BRP dealership |
| 10 |
204390059 |
SCREW 8-32 X 1-1/4 - Call your local BRP dealership |
| 12 |
204390327 |
Center Cap |
| 13 |
204390328 |
Center Ring |
| 14 |
204390329 |
SCREW PACK - Call your local BRP dealership |
| 15 |
204390330 |
Nylon Hub |
| 16 |
277000384 |
WOODRUFF KEY - Call your local BRP dealership |
| 17 |
211200006 |
FLAT WASHER, STAINLESS - Call your local BRP dealership |
| 18 |
211100021 |
LOCK NUT 1/2-20 - Call your local BRP dealership |
| 19 |
277000458 |
CABLE SUPPORT - Call your local BRP dealership |
| 20 |
211000050 |
HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP - Call your local BRP dealership |
| 21 |
211200025 |
Lock Washer 1/4” |
| 22 |
204390040 |
ARM - Call your local BRP dealership |
| 26 |
211000054 |
HEX. SCREW 1/4-20 X 1?, SCOTCH GRIP - Call your local BRP dealership |
| 27 |
211200025 |
Lock Washer 1/4” |
| 36 |
204390212 |
STEERING CABLE - Call your local BRP dealership |
| 38 |
277000461 |
PIVOT 3/8? - Call your local BRP dealership |
| 39 |
293350014 |
Flanged Bushing |
| 40 |
234001600 |
Flat Washer 10 mm, Stainless |
| 41 |
211100024 |
LOCK NUT - Call your local BRP dealership |
| 43 |
204390053 |
HEX. JAM NUT 5/8-18 - Call your local BRP dealership |
| 44 |
293800060 |
Loctite 243, 10 ml |
| 45 |
277000439 |
HEX. NUT 5/16-24 - Call your local BRP dealership |
| 46 |
277000456 |
PIVOT - Call your local BRP dealership |
| 47 |
293350012 |
BUSHING - Call your local BRP dealership |
| 48 |
211200019 |
FLAT WASHER - Call your local BRP dealership |
| 49 |
212000005 |
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership |
| 60 |
204390245 |
Bumper Support |
| 61 |
204390246 |
Bumper |
| 63 |
204100014 |
HEX. SCREW 1/4-20 X 2-1/2 - Call your local BRP dealership |
| 64 |
293800060 |
Loctite 243, 10 ml |
| 65 |
234062600 |
Flat Washer M6, Stainless |
