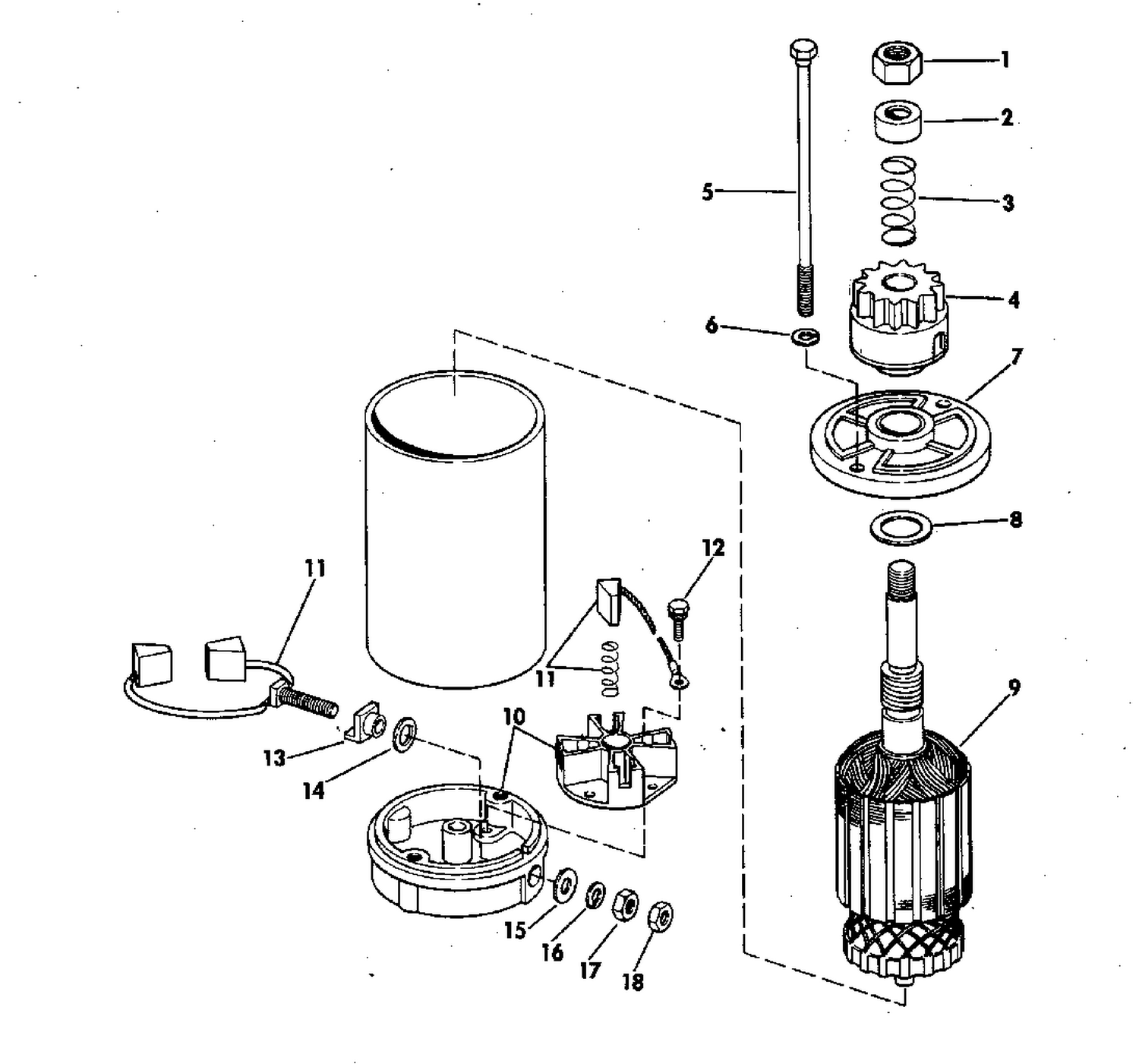

ELECTRIC STARTER AMERICAN BOSCH SMH 12C41
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0393354 | NUT SPRING & SPACER KIT This part replaces 0316740. |
| 2 | 0393354 | NUT SPRING & SPACER KIT This part replaces 0316741. |
| 3 | 0393354 | NUT SPRING & SPACER KIT This part replaces 0316742. |
| 4 | 0385949 | DRIVE ASSY |
| 5 | 0385950 | THRU BOLT PKG |
| 6 | 0318499 | LOCK WASHER |
| 9 | 0318584 | AMRMATURE |
| 10 | 0386645 | CAP ASSY ., Commutator This part replaces 0385951. |
| 0385529 | 0385529 | STARTER MOTOR ASSY |
