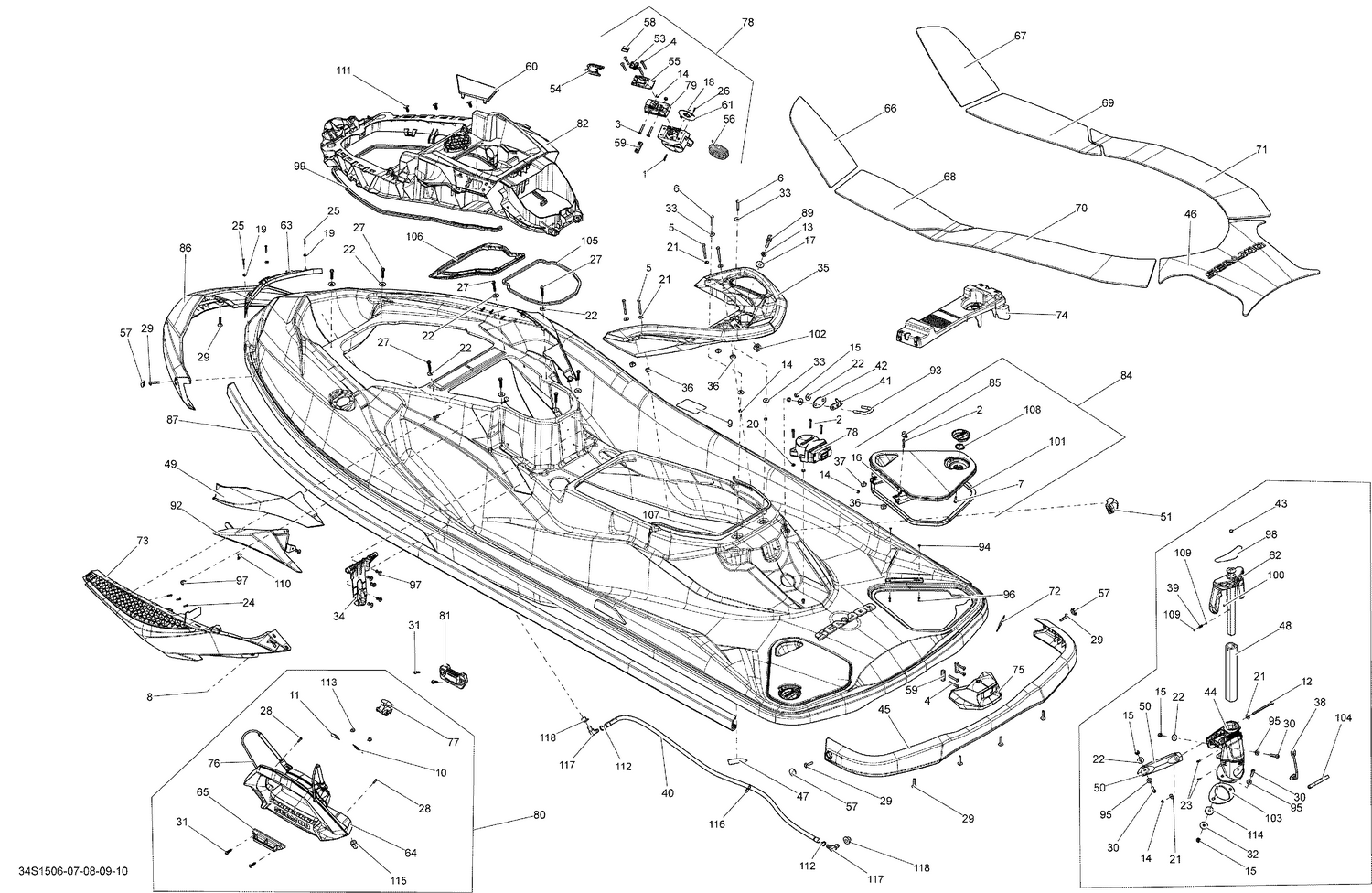

| Ref | Part Number | Description |
|---|
| 1 |
204100049 |
PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership |
| 2 |
205063060 |
Socket Head Screw M6 X 30 |
| 3 |
205364060 |
SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership |
| 4 |
205364560 |
SOCKET SCREW HEAD M6 X 45 - Call your local BRP dealership |
| 5 |
207065560 |
Hex. Screw M6 x 55 |
| 6 |
207164060 |
Hex. Screw M6 X 40 |
| 7 |
211000023 |
Hex. Screw 10-14 X 7/8” |
| 8 |
211100002 |
Push Nut |
| 9 |
219903184 |
CAUTION ENGINE OIL - Call your local BRP dealership |
| 10 |
XXX |
Not Available As Spare Parts |
| 11 |
XXX |
Not Available As Spare Parts |
| 12 |
XXX |
Not Available As Spare Parts |
| 13 |
232100600 |
Hex. Jam Nut M10 |
| 14 |
232561200 |
Brass Elastic Stop Nut M6 |
| 15 |
232581200 |
Hex. Elastic Nut M8 Brass |
| 16 |
233161600 |
Hex. Flange Nut M6 |
| 17 |
234002600 |
Flat Washer 10 mm, Stainless |
| 18 |
234032600 |
Flat Washer M3, Stainless |
| 19 |
234042600 |
Flat Washer 4 mm, Stainless |
| 20 |
234061600 |
Stainless Flat Washer M6 |
| 21 |
234062600 |
Flat Washer M6, Stainless |
| 22 |
234082600 |
Flat Washer 8 mm, Stainless |
| 23 |
241141360 |
Hex. Flange Screw K40 X 13 |
| 24 |
241141660 |
Hex. Flange Screw K40 X 16 |
| 25 |
241142560 |
Hex. Flange Screw K40 X 25 |
| 26 |
241731260 |
Oval Philipp Screw KA30 x 12 |
| 27 |
243163560 |
Plastite Hex. Screw M6.8 X 35 |
| 28 |
XXX |
Not Available As Spare Parts |
| 29 |
250000339 |
SOCKET SCREW M6 X 12 - Call your local BRP dealership |
| 30 |
XXX |
Not Available As Spare Parts |
| 31 |
XXX |
Not Available As Spare Parts |
| 32 |
XXX |
Not Available As Spare Parts |
| 33 |
250200022 |
Flat Washer M6.6 X 22 |
| 34 |
269002162 |
Mounting Case Absorber |
| 35 |
291004622 |
Black Rear Handle |
| 36 |
269500252 |
M6 Nut Housing Ass'y |
| 37 |
269502408 |
Housing Nut M6 This part replaces 269501166. |
| 38 |
XXX |
Not Available As Spare Parts |
| 39 |
XXX |
Not Available As Spare Parts |
| 40 |
219704356 |
Was 275500008 Hose 12 mm |
| 41 |
291002351 |
Hook |
| 42 |
291001386 |
Black, Finition Plate |
| 43 |
XXX |
Not Available As Spare Parts |
| 44 |
XXX |
Not Available As Spare Parts |
| 45 |
291004274 |
Rear Bumper This part replaces 291002592. |
| 46 |
291002625 |
Rear Plat-Form Carpet |
| 47 |
291002626 |
LH Nonskid |
| 48 |
XXX |
Not Available As Spare Parts |
| 49 |
291003759 |
LH UPPER BODY CAP COVER - Call your local BRP dealership |
| 49 |
291003760 |
RH UPPER BODY CAP COVER - Call your local BRP dealership |
| 50 |
XXX |
Not Available As Spare Parts |
| 51 |
XXX |
Not Available As Spare Parts |
| 53 |
291002726 |
BUTTON - Call your local BRP dealership |
| 54 |
291002727 |
UNDER CAM - Call your local BRP dealership |
| 55 |
291002729 |
ROPE GUIDE - Call your local BRP dealership |
| 56 |
219704363 |
ROPE 3/16 3000MM LONG - Call your local BRP dealership |
| 57 |
291002744 |
Bumber Cap |
| 58 |
291002754 |
Button Cap |
| 59 |
291002755 |
DOUBLE CAGE NUT ASS'Y - Call your local BRP dealership |
| 60 |
291002724 |
FRONT REWINDER COVER - Call your local BRP dealership |
| 61 |
291002762 |
INSIDE COVER - Call your local BRP dealership |
| 62 |
XXX |
Not Available As Spare Parts |
| 63 |
291002818 |
DECK NOSE - Call your local BRP dealership |
| 64 |
XXX |
Not Available As Spare Parts |
| 65 |
XXX |
Not Available As Spare Parts |
| 66 |
291003580 |
LH Front Carpet |
| 67 |
291003581 |
ANTI SLIP MAT FR - Call your local BRP dealership |
| 68 |
291003458 |
LH Center Carpet |
| 69 |
291003459 |
RH CENTER CARPET - Call your local BRP dealership |
| 70 |
291003460 |
LH Rear Carpet |
| 71 |
291003461 |
RH Rear Carpet |
| 72 |
291002937 |
RH NONSKID - Call your local BRP dealership |
| 73 |
291004033 |
RH FRONT COVER ASS'Y - Call your local BRP dealership |
| 73 |
291004038 |
LH FRONT COVER ASS'Y - Call your local BRP dealership |
| 74 |
291002947 |
LOWER DECK ASS'Y - Call your local BRP dealership |
| 75 |
291002948 |
REWIND COVER - Call your local BRP dealership |
| 76 |
XXX |
Not Available As Spare Parts |
| 77 |
XXX |
Not Available As Spare Parts |
| 78 |
291004019 |
Retractable Rope Ass'y |
| 79 |
291003023 |
JAM CLEAT SYSTEM ASS'Y - Call your local BRP dealership |
| 80 |
XXX |
Not Available As Spare Parts |
| 81 |
XXX |
Not Available As Spare Parts |
| 82 |
291004595 |
Front Module This part replaces 291003680. |
| 84 |
291003686 |
LH Access Cover |
| 84 |
291003687 |
RH ACCESS COVER - Call your local BRP dealership |
| 85 |
291003688 |
Rubber Bumper |
| 86 |
291004275 |
Front Bumper This part replaces 291003836. |
| 87 |
291003872 |
Lateral Bumper |
| 89 |
291003878 |
Seat Stud |
| 92 |
291003983 |
MAGNESIUM RH SEAT PAD - Call your local BRP dealership |
| 92 |
291003984 |
MAGNESIUM LH SEAT PAD - Call your local BRP dealership |
| 93 |
292000933 |
U-Clamp |
| 94 |
293000014 |
Black, Snap Cap |
| 95 |
XXX |
Not Available As Spare Parts |
| 96 |
293150016 |
Rivet 1/8" |
| 97 |
293150123 |
Pop Rivet 3/16" |
| 98 |
XXX |
Not Available As Spare Parts |
| 99 |
293250259 |
GASKET - Call your local BRP dealership |
| 100 |
XXX |
Not Available As Spare Parts |
| 101 |
219704367 |
Was 293200133 Neoprene Seal |
| 102 |
271001732 |
Elastic Nut M10 Housing |
| 103 |
XXX |
Not Available As Spare Parts |
| 104 |
XXX |
Not Available As Spare Parts |
| 105 |
293250200 |
NEOPRENE SEAL - Call your local BRP dealership |
| 106 |
293250365 |
NEOPRENE SEAL - Call your local BRP dealership |
| 107 |
219704378 |
Gasket 3000Mm Long |
| 108 |
293300121 |
O-Ring |
| 109 |
XXX |
Not Available As Spare Parts |
| 110 |
293730006 |
Black, Dart |
| 111 |
293730010 |
Black Dart |
| 112 |
293750001 |
Tie Wrap 94 mm |
| 113 |
XXX |
Not Available As Spare Parts |
| 114 |
XXX |
Not Available As Spare Parts |
| 115 |
XXX |
Not Available As Spare Parts |
| 116 |
414115200 |
Tie-Rap 180 mm |
| 117 |
414523600 |
Elbow Fitting |
