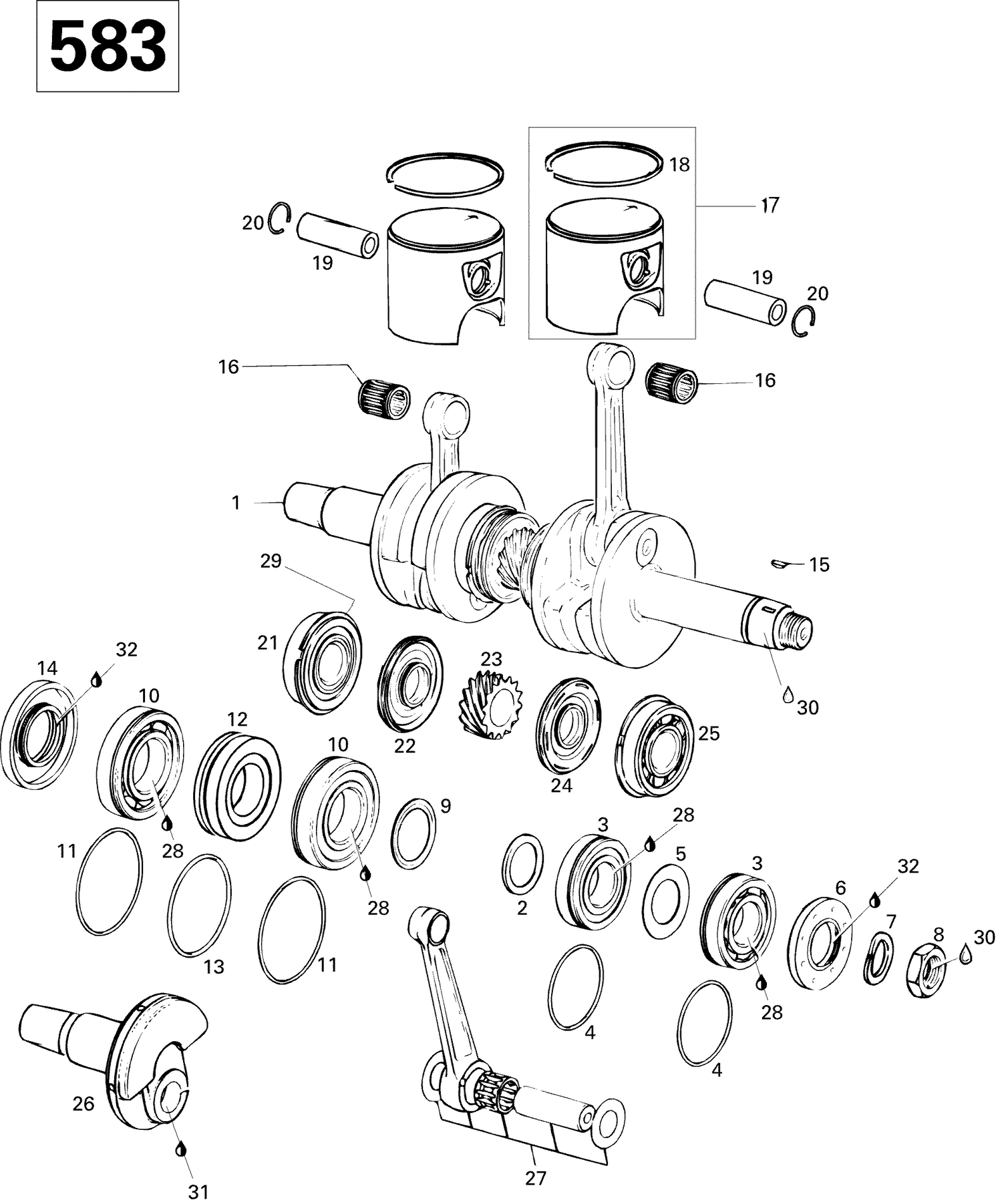

| Ref | Part Number | Description |
|---|
| 1 |
420887352 |
Crankshaft |
| 2 |
420827441 |
SPACER RING - Call your local BRP dealership This part replaces 420827440. |
| 3 |
420832481 |
Bearing_Ball This part replaces 420832209. |
| 4 |
420830355 |
O-Ring |
| 5 |
420827715 |
Stop Shim (30.4/1) |
| 6 |
420830749 |
Oil Seal This part replaces 420830748. |
| 7 |
420945759 |
Lock Washer, 22 mm |
| 8 |
420842239 |
Hex. Nut, M22 X 1.5 This part replaces 420842230. |
| 9 |
420827760 |
DISTANCE RING - Call your local BRP dealership |
| 10 |
420832584 |
Bearing_Ball This part replaces 420832231. |
| 11 |
293300022 |
O-Ring, 64 mm X 2 mm This part replaces 420250165. |
| 12 |
420830292 |
Labyrinth Bushing |
| 13 |
420830370 |
O-RING - Call your local BRP dealership |
| 14 |
420831952 |
Oil Seal This part replaces 420831950. |
| 15 |
420246055 |
Woodruff Key |
| 16 |
420932904 |
Needle Bearing |
| 18 |
420815010 |
Semi-Trapez Ring 76.0 mm |
| 18 |
420915821 |
Semi-Trapez Ring 76.25 mm |
| 19 |
420916136 |
PISTON PIN - Call your local BRP dealership |
| 20 |
420945735 |
Piston Circlip |
| 21 |
420832481 |
Bearing_Ball This part replaces 420832209. |
| 22 |
420831990 |
Oil Seal |
| 23 |
420935746 |
Central Gear (14 Teeth) |
| 24 |
420831355 |
Oil Seal |
| 25 |
420832090 |
Ball Bearing 6305 |
| 26 |
420818030 |
Crankshaft Repair Kit (P.T.O. Side) |
| 27 |
420996626 |
Crankshaft Rod Repair Kit |
| 28 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 29 |
420845070 |
Ring-Groove |
| 30 |
293800060 |
Loctite 243, 10 ml This part replaces 413703000. |
| 31 |
219703000 |
Sealant Loctite 648 This part replaces 293800039. |
