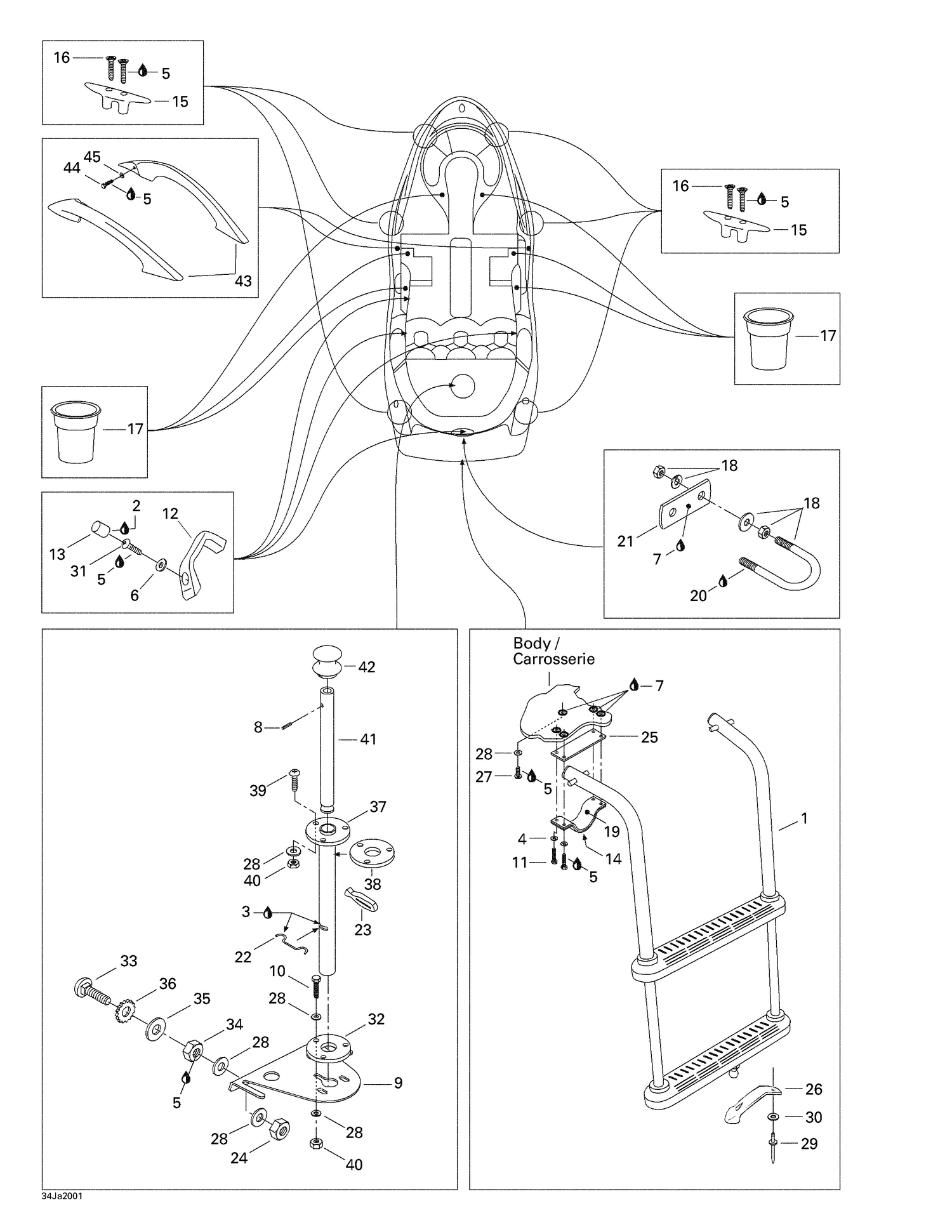

| Ref | Part Number | Description |
|---|
| 1 |
204060338 |
Ladder Ass'y |
| 3 |
293550010 |
Synthetic Grease, 400 G |
| 4 |
234161601 |
Lock Washer Helical M6 |
| 5 |
293800060 |
Loctite 243, 10 ml |
| 6 |
234061600 |
Stainless Flat Washer M6 |
| 7 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 8 |
211400004 |
ROLLED PIN M3 X 30 - Call your local BRP dealership |
| 9 |
291001059 |
Fixation Plate |
| 10 |
207162060 |
Hex. Forming Screw M6 X 20 |
| 11 |
207163560 |
Hex. Screw M6 X 35 |
| 13 |
204070297 |
Snap Cap |
| 14 |
204060055 |
LADDER CLIP - Call your local BRP dealership |
| 15 |
204070100 |
CLEAT - Call your local BRP dealership |
| 16 |
205365560 |
Socket Head Screw M6 x 55 |
| 17 |
291000619 |
CUP HOLDER - Call your local BRP dealership |
| 18 |
204070418 |
U-Bolt |
| 19 |
204060056 |
PROTECTOR 158 - Call your local BRP dealership |
| 20 |
293800005 |
Loctite 271, 10 ml |
| 21 |
204070054 |
Ski Tow Plate, Black |
| 22 |
291001205 |
SPRING - Call your local BRP dealership |
| 23 |
570023800 |
Windshield Latch |
| 24 |
212000005 |
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership |
| 25 |
204060057 |
PROTECTOR 97 - Call your local BRP dealership |
| 26 |
570027100 |
Hood Latch |
| 27 |
208443070 |
SCREW M4 X 30 - Call your local BRP dealership |
| 28 |
234062600 |
Flat Washer M6, Stainless |
| 29 |
293150013 |
Pop Rivet 3/16" |
| 30 |
234052600 |
Flat Washer 5 mm, Stainless |
| 31 |
205462560 |
SOCKET SCREW M6 X 25 - Call your local BRP dealership |
| 32 |
291001060 |
RETAINER WASHER - Call your local BRP dealership |
| 33 |
211000193 |
Screw 1/4”-20 X 1-3/4” |
| 34 |
211100026 |
HEX. NUT 1/4 - Call your local BRP dealership |
| 35 |
234081600 |
Stainless, Flat Washer 8 mm |
| 36 |
234381608 |
TOOTHED LOCK WASHER - Call your local BRP dealership |
| 37 |
291001057 |
FIXED TUBE - Call your local BRP dealership |
| 38 |
293830045 |
RUBBER WASHER - Call your local BRP dealership |
| 39 |
208563060 |
OVAL HEAD PHILLIPS COUNTERSUNK SCREW M6 - Call your local BRP dealership |
| 40 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 41 |
204072616 |
SKI SHAFT - Call your local BRP dealership This part replaces 291001058. |
| 42 |
293000004 |
SKI SHAFT CAP - Call your local BRP dealership |
| 43 |
204070298 |
Lat Handle RH |
| 44 |
207182560 |
HEX. SCREW M8 X 25 - Call your local BRP dealership |
| 204070299 |
Lat |
Handle LH 204070299 |
