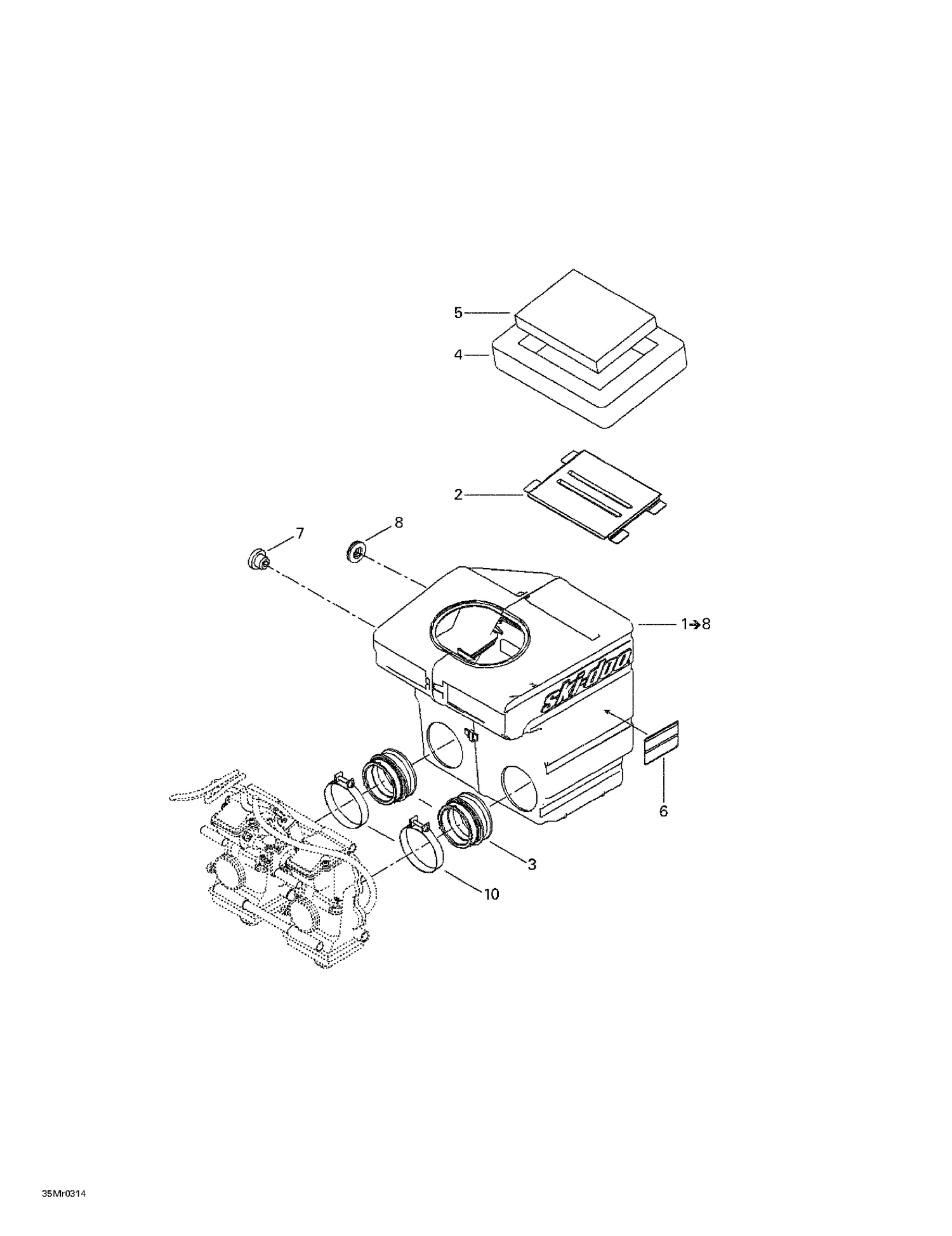

02- Air Intake System
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 508000004 | INTAKE GRILL - Call your local BRP dealership |
| 3 | 508000092 | Air Intake Adaptor, 40 mm |
| 4 | 508000099 | Lower Foam |
| 5 | 508000154 | Air Filter |
| 6 | 516002715 | CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191. |
| 7 | 513032908 | Grommet |
| 8 | 570065500 | GROMMET - Call your local BRP dealership |
| 9 | 779123 | OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200. |
| 779120 | 2T | Snowmobile Premium Mineral Oil This part replaces 413803000. 779120 |
