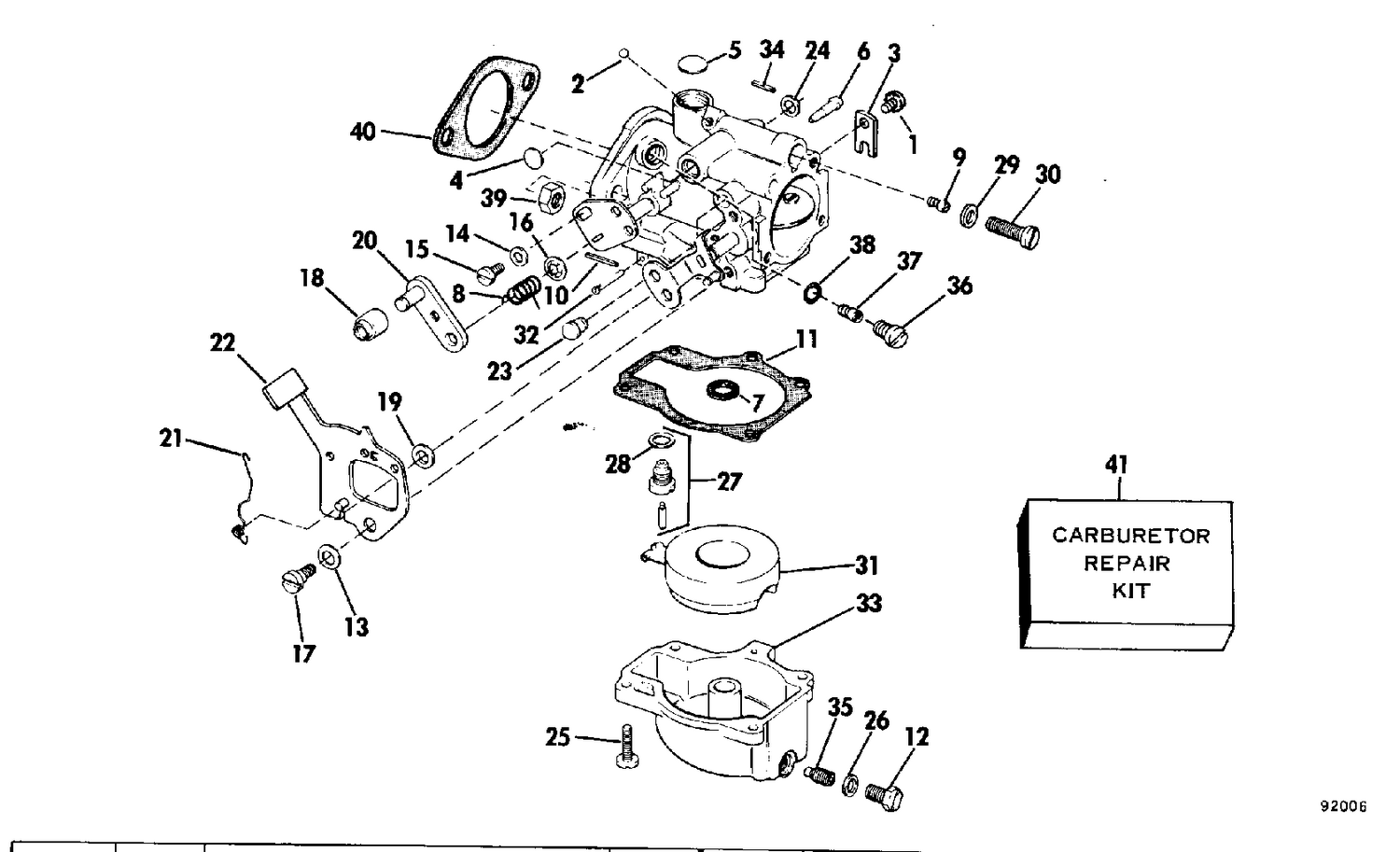

CARBURETOR
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 0314906 | CLIP |
| 10 | 0307901 | ROLL PIN |
| 12 | 0307832 | PLUG, Screw |
| 22 | 0388160 | LEVER & PIN ASSY |
| 33 | 0387590 | FLOAT CHAMBER |
| 36 | 0317501 | SCREW PLUG, Orifice |
| 37 | 0323151 | HIGH SPEED ORIFICE, No. 45 |
| 37 | 0325827 | HIGH SPEED ORIFICE, No. 44 |
| 37 | 0325828 | ORIFICE #43, 250 |
| 39 | 0316355 | BUT, Carburetor mounting |
| 40 | 0325092 | GASKET |
| 0389291 | 0389291 | CARB ASSY, Upper |
| 0389292 | 0389292 | CARB ASSY, Lower |
| 0389587 | 0389587 | CARB ASSY, Upper |
| 0389588 | 0389588 | CARB ASSY, Lower |
