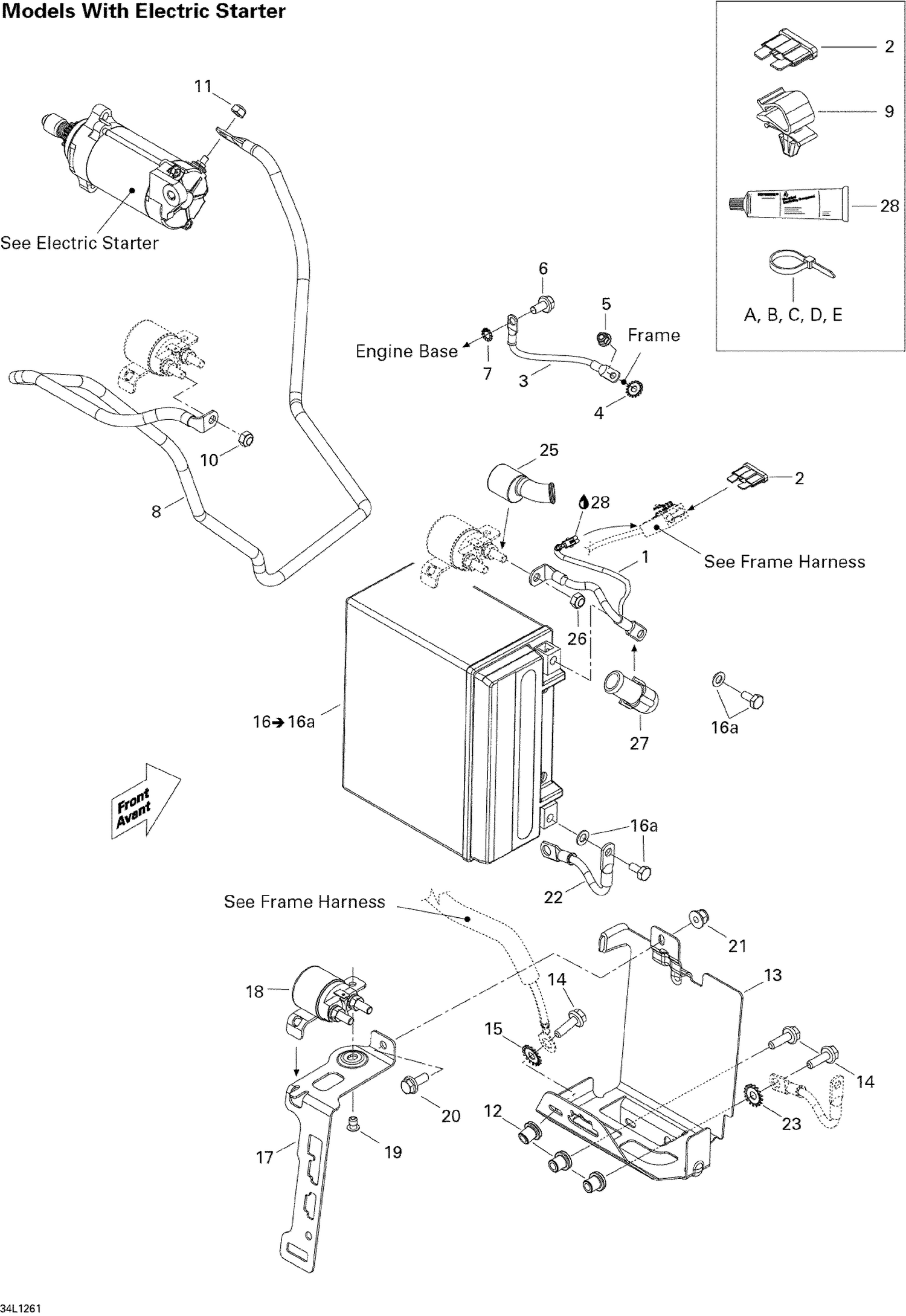

10- Battery And Starter
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| A | 414115200 | Tie-Rap 180 mm |
| B | 293750002 | Tie-Rap 142 mm |
| C | 293750008 | Tie-Rap 368 mm |
| D | 293750001 | Tie-Rap 94 mm |
| 3 | 619300022 | Ground Wire |
| 4 | 250200041 | Lock Washer Serrated M6 |
| 5 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 6 | 207581646 | Hex. Flange Screw M8 X 16, Scotch Grip |
| 7 | 234481608 | Serrated Lock Washer 8 mm |
| 9 | 515176795 | Tie Rap Mount (Screwable) |
| 12 | 293450275 | Insert |
| 14 | 207662044 | Hex. Flange Screw M6 X 20 |
| 15 | 250200041 | Lock Washer Serrated M6 |
| 16a | 250000282 | Battery Bolt Kit This part replaces 295500849. |
| 28 | 293550004 | Dielectric Grease, 150 g |
