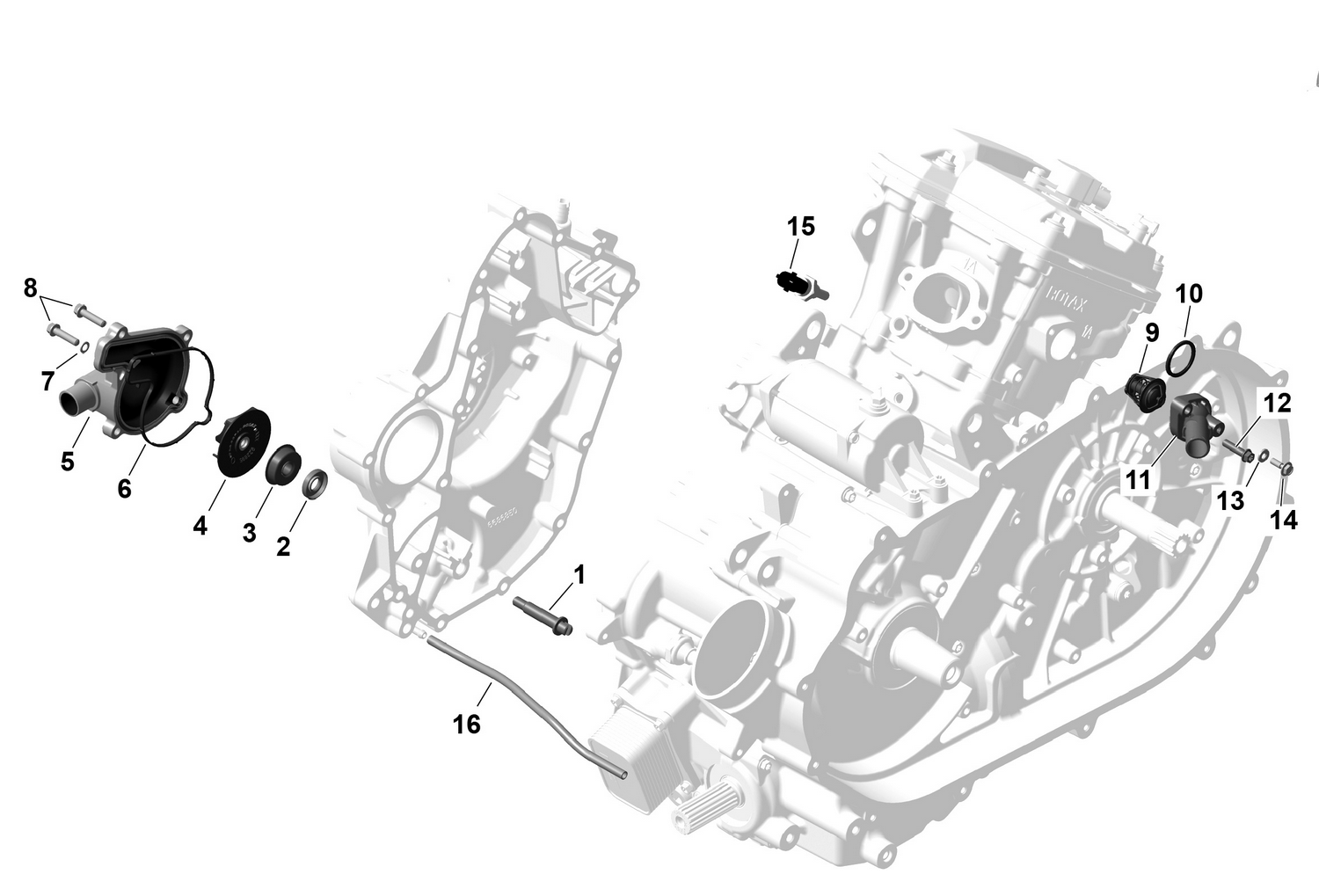

01- ROTAX - Engine Cooling
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420620261 | Water Pump Shaft |
| 4 | 420922895 | Water Impeller |
| 5 | 420622071 | Water Pump Housing This part replaces 420622070. |
| 6 | 420651245 | Gasket |
| 7 | 420230416 | Seal Washer |
| 8 | 420440234 | Torx Flange Screw M6 X 25 |
| 10 | 420650300 | Thermostat Gasket |
| 11 | 420222696 | Thermostat Cover |
| 12 | 420440234 | Torx Flange Screw M6 X 25 |
| 13 | 420650255 | Gasket Ring |
| 14 | 420441621 | Screw M5 X 16 |
| 15 | 278002895 | Temperature Sensor This part replaces 420222426. |
