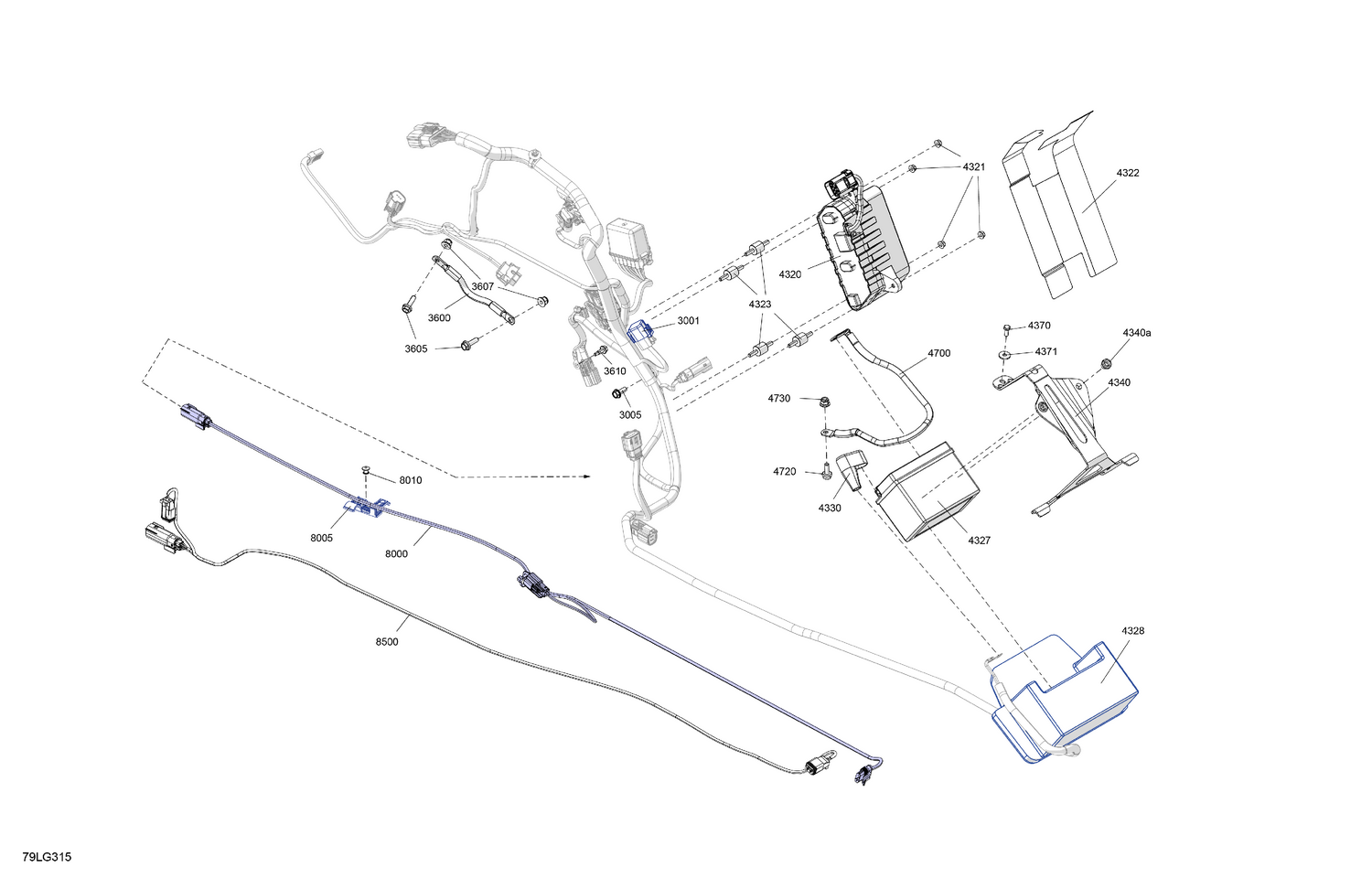

08- Electric - Lower Section
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 3001 | 515178435 | Diagnostic Cap |
| 3005 | 250001062 | Hex. Flanged Screw M6 X 16 |
| 3600 | 515178248 | Ground Wire |
| 3605 | 207662044 | Hex. Flange Screw M6 X 20 |
| 3607 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 3610 | 250000911 | Hex. Flange Screw M5 X 16 |
| 4320 | 515178891 | Ultracapacitor Module |
| 4321 | 233151414 | Nut Flange Hex. M5 |
| 4322 | 515178698 | Heat Shield |
| 4323 | 707000746 | Rubber Mount |
| 4327 | 415130653 | Battery YUASA YTX4L-BS |
| 4328 | 515179279 | Battery Support |
| 4330 | 710001817 | Protector Cap |
| 4340a | 293450275 | Insert |
| 4370 | 207151244 | Hex. Screw M5 X 12 |
| 4371 | 391301600 | Washer |
| 4700 | 515178155 | Ground Wire |
| 4720 | 207661644 | Hex. Flange Screw M6 X 16 |
| 4730 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 8000 | 515179793 | Taillight Wiring Harness |
| 8005 | 515179630 | Wiring Harness Support |
| 8010 | 293150293 | Pop Rivet 3/16 X ,425 |
