| Ref | Part Number | Description |
|---|
| 4 |
0123404 |
CONNECTOR, 1-socket plug |
| 5 |
0123405 |
CONNECTOR |
| 12 |
0323272 |
DASH 1 |
| 13 |
0511411 |
COLLIER BOUCLE, fils faisceau |
| 15 |
0303398 |
VIS, support This part replaces 0302030. |
| 16 |
0317000 |
COLLIER, câble This part replaces 0318190. |
| 17 |
0122704 |
LING, Choke solenoid |
| 18 |
0173586 |
COVER & TRANSFER ASSY |
| 20 |
0172876 |
SOLENOID ASSY |
| 21 |
0122702 |
KNOB, Choke control |
| 23 |
0310473 |
GASKET, Solenoid |
| 25 |
0173356 |
CABLE ASSEMBLY, Instrument cable |
| 30 |
0305230 |
SCREW |
| 31 |
0172787 |
PLUNGER & PIN ASSY |
| 32 |
0122708 |
WASHER, Plunger |
| 35 |
0173355 |
MOTOR CABLE ASSY |
| 41 |
0122707 |
PLUNGER RETAINER |
| 49 |
KEY |
Ref: 50 0306559 *SCREW, Ignition switch 0306559 |
| 0173357 |
0174974 |

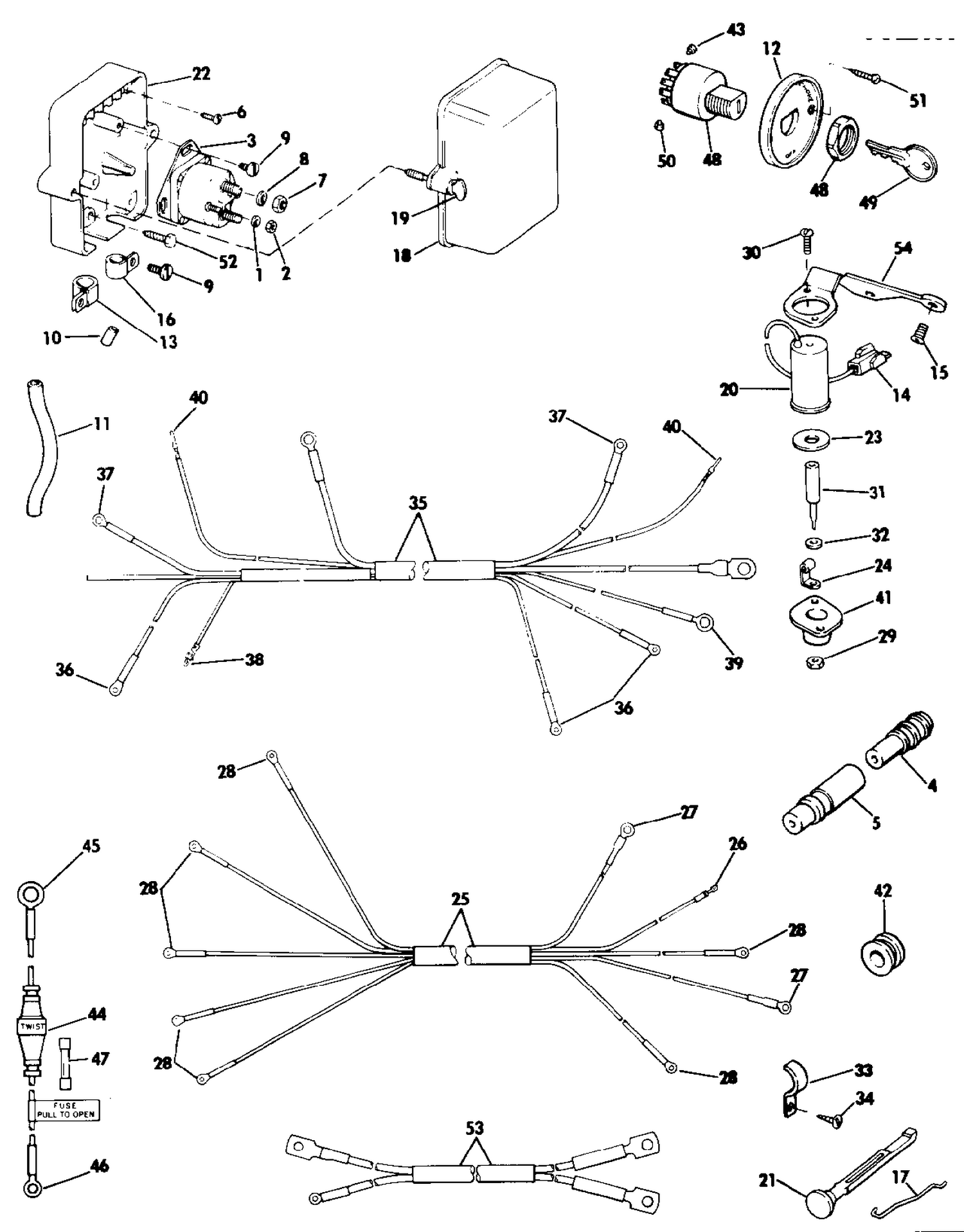

REMOTE STARTING KIT This part replaces 0173357. |
