Parts Catalog

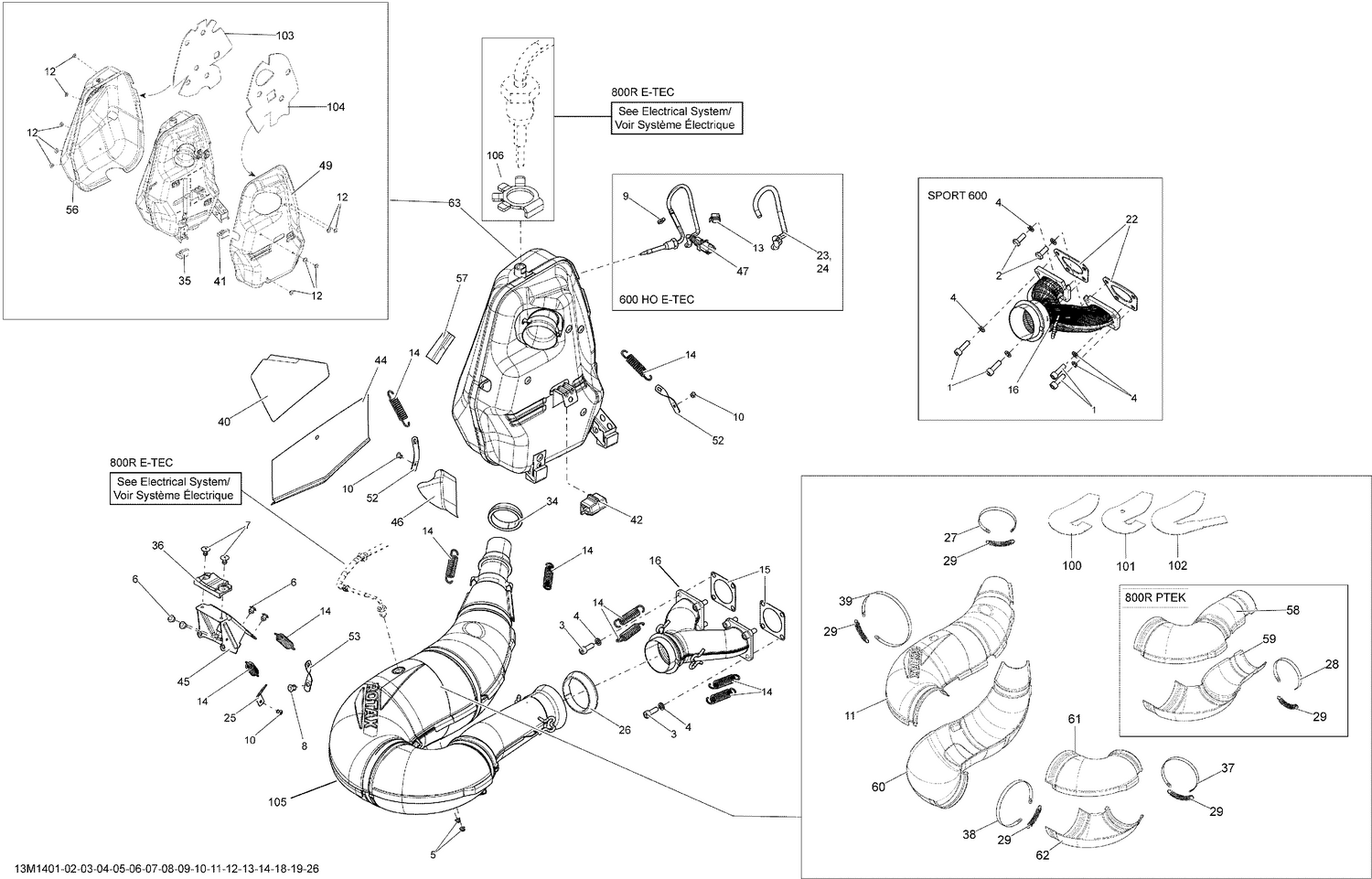

01- Exhaust System

Parts (54)

Ref	Part Number	Description
1	XXX	Not Available As Spare Parts
2	XXX	Not Available As Spare Parts
3	250000414	Socket Head Screw M8 X 22
4	250200111	Washer
5	293150091	Henrob Rivet
6	XXX	Not Available As Spare Parts
7	293150103	Pop Rivet 3/16"
8	293150266	Ornit Rivet 6,5 X 14.5 This part replaces 293150147.
9	XXX	Not Available As Spare Parts
10	390402200	Pop Rivet 3/16"
11	514055067	REAR UPPER HALF ENVELOPPE - Call your local BRP dealership
12	390910000	Pop Rivet 3/16”
13	XXX	Not Available As Spare Parts
14	415107100	Spring
15	420430482	Gasket
16	420673374	Exhaust Manifold This part replaces 420673373.
22	XXX	Not Available As Spare Parts
23	XXX	Not Available As Spare Parts
24	XXX	Not Available As Spare Parts
25	XXX	Not Available As Spare Parts
26	514053487	Exhaust Gasket
27	514053499	Retaining Strap
28	XXX	Not Available As Spare Parts
29	514053643	Spring
34	514054174	Exhaust Gasket
35	514054274	Lower Stopper
36	514054275	Bumper
37	514054408	Retaining Strap
38	514054409	Retaining Strap
39	514054410	Retaining Strap
40	XXX	Not Available As Spare Parts
41	514054496	Lower Stopper
42	514054606	Upper Stopper
44	XXX	Not Available As Spare Parts
45	XXX	Not Available As Spare Parts
46	XXX	Not Available As Spare Parts
47	XXX	Not Available As Spare Parts
49	514054967	LH Deflector
52	514054974	Spring Bracket, 5mm hole
53	514054975	Spring Bracket, 8.0mm hole
56	514054986	RH DEFLECTOR - Call your local BRP dealership
57	514054987	Heat Shield (Rectangle)
58	XXX	Not Available As Spare Parts
59	XXX	Not Available As Spare Parts
60	514054990	Rear Lower Half Enveloppe
61	514054992	Front Upper Half Enveloppe
62	514054993	Front Lower Half Enveloppe
63	514055083	Muffler Ass'y
100	514054487	Insulating Wool
101	514054553	INSULATING WOOL - Call your local BRP dealership
102	XXX	Not Available As Spare Parts
103	514054711	RH Insulating Wool
104	514054299	LH Insulating Wool
105	514055062	Exhaust Tuned Pipe
