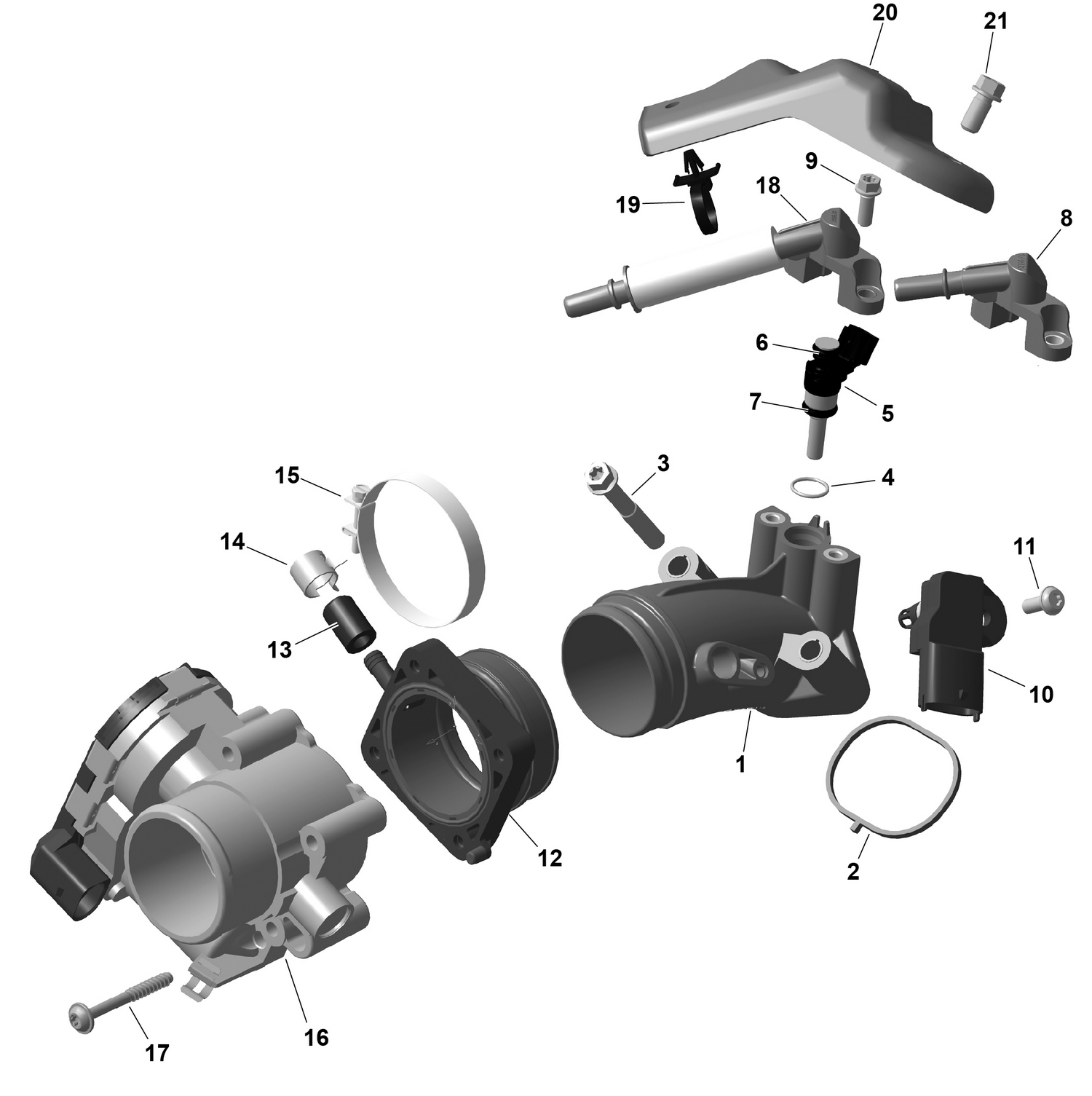

01- ROTAX - Air Intake Manifold And Throttle Body
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420267555 | Intake Adaptor |
| 3 | 420641213 | Torx Flange Screw M8 X 55 This part replaces 420440397. |
| 4 | 420230451 | O-Ring |
| 5 | 420874859 | Fuel Injector EV-SE |
| 7 | XXX | Not Available As Spare Parts |
| 9 | 420440164 | Torx Flange Screw M6 X 16 |
| 10 | 420874658 | Pressure And Temperature Sensor |
| 11 | 420641588 | Torx Flange Screw M6 X 16 |
| 12 | 420267212 | Intake Socket |
| 13 | 420201910 | Cap |
| 14 | 420853512 | Spring Type Clamp 14 |
| 15 | 420851086 | Clamp 63 |
| 16 | 420893149 | Throttle Body |
| 17 | 420441588 | Torx Flange Screw M6 X 50 |
| 18 | XXX | Not Available As Spare Parts |
| 19 | XXX | Not Available As Spare Parts |
| 20 | XXX | Not Available As Spare Parts |
