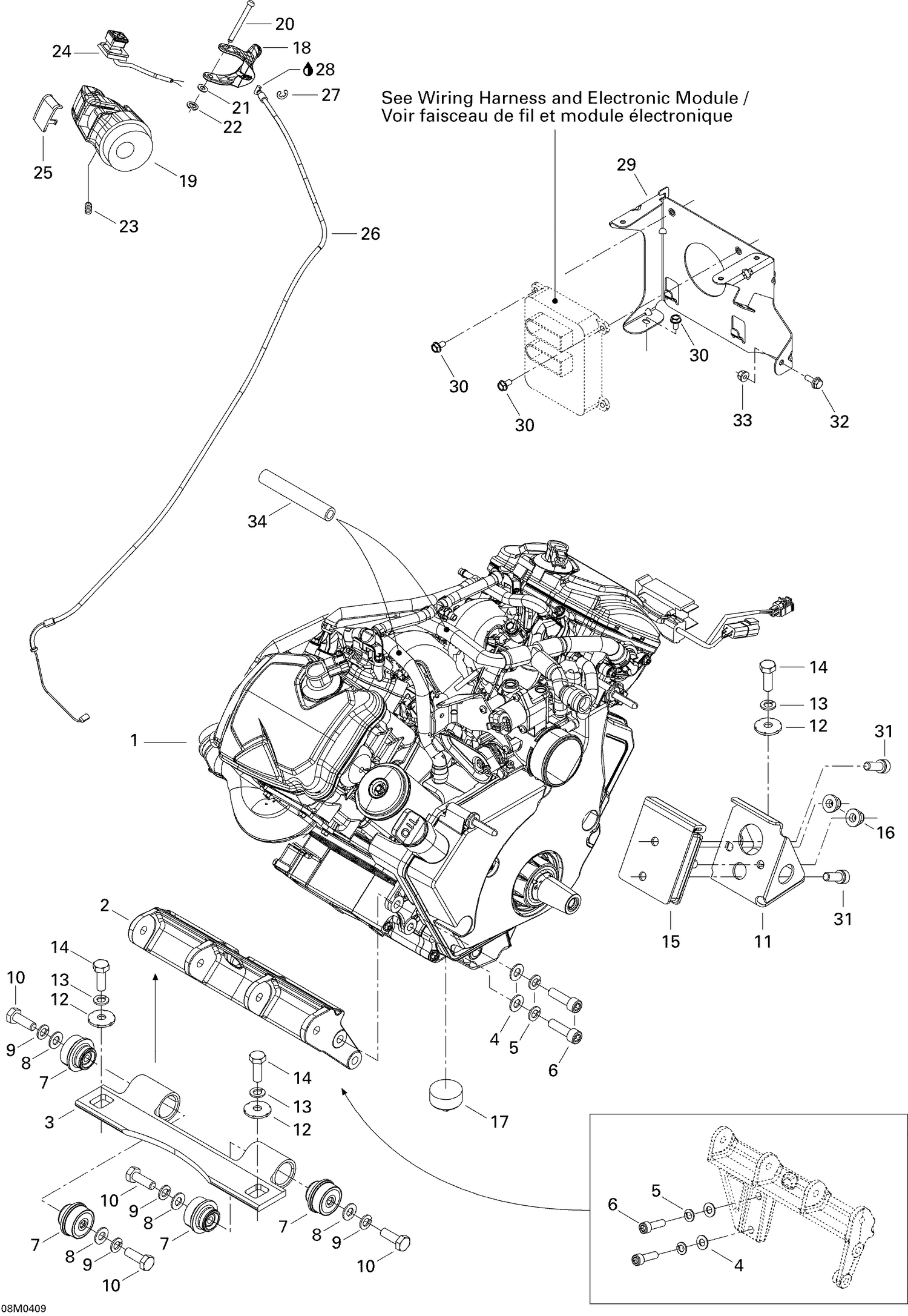

| Ref | Part Number | Description |
|---|
| 1 |
400101113 |
Engine V-1004 |
| 2 |
512059422 |
FRONT ENGINE MOUNT - Call your local BRP dealership |
| 3 |
512059425 |
FRONT ENGINE SUPPORT - Call your local BRP dealership |
| 4 |
234001410 |
Flat Washer 10 mm |
| 5 |
234100602 |
WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership |
| 6 |
205003544 |
Socket Screw M10 X 35 |
| 7 |
512059691 |
Rubber Mount |
| 8 |
234001410 |
Flat Washer 10 mm |
| 9 |
234100602 |
WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership |
| 10 |
207103044 |
Hex. Screw M10 X 30 |
| 11 |
512059315 |
REAR ENGINE SUPPORT - Call your local BRP dealership |
| 12 |
512056700 |
Lock Washer |
| 13 |
234100602 |
WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership |
| 14 |
207103044 |
Hex. Screw M10 X 30 |
| 15 |
512059316 |
Rubber Mount |
| 16 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 17 |
512059710 |
STOPPER - Call your local BRP dealership |
| 18 |
512059624 |
Handle Ass’Y |
| 19 |
512059489 |
THROTTLE HOUSING - Call your local BRP dealership |
| 20 |
414438700 |
Lever Pin |
| 21 |
234051600 |
Flat Washer M5, Stainless This part replaces 414438900. |
| 22 |
414439000 |
Circlip |
| 23 |
414440800 |
Socket Set Screw M8 X 10 |
| 24 |
515177362 |
Emergency Stop Switch This part replaces 512059751. |
| 25 |
572100901 |
Switch Cover |
| 27 |
414274500 |
Circlip |
| 28 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 29 |
512059921 |
Electronic Module Support |
| 30 |
210261250 |
Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 31 |
205002544 |
Socket Head Screw M10 X 25 |
| 32 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 33 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
