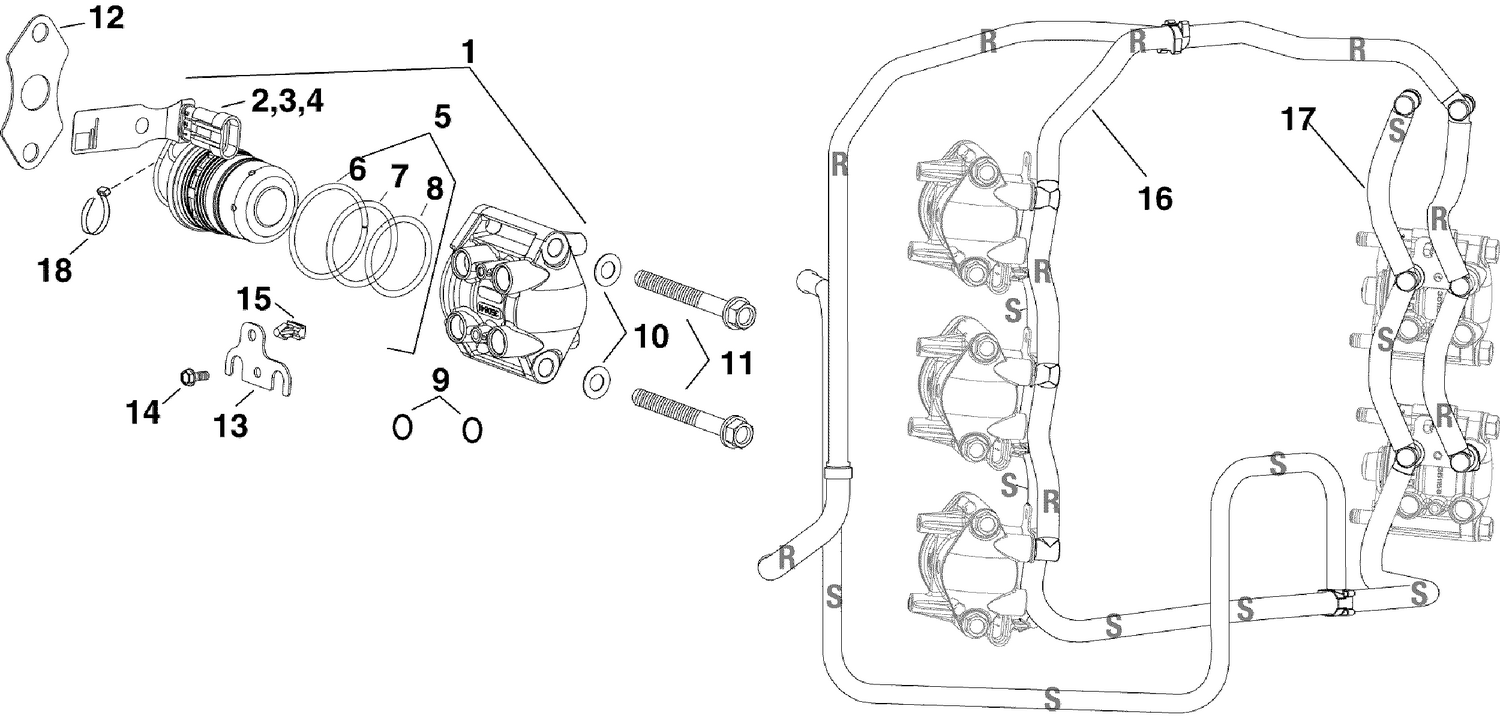

FUEL INJECTOR & RAILS
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5006221 | FUEL INJECTOR Assy, Port |
| 1 | 5006222 | FUEL INJECTOR Assy, Starboard |
| 7 | **O-RING, | Outer injector |
| 8 | **O-RING, | Inner injector |
| 12 | 0351125 | INSULATOR, Fuel injector to cyl head |
| 13 | 0350775 | BRACKET, Fuel rail to housing |
| 14 | 0315287 | SCREW |
| 16 | 5008392 | FUEL RAIL Assembly, Return This part replaces 5005356. |
| 17 | 5008393 | FUEL RAIL Assembly, Supply This part replaces 5005355. |
