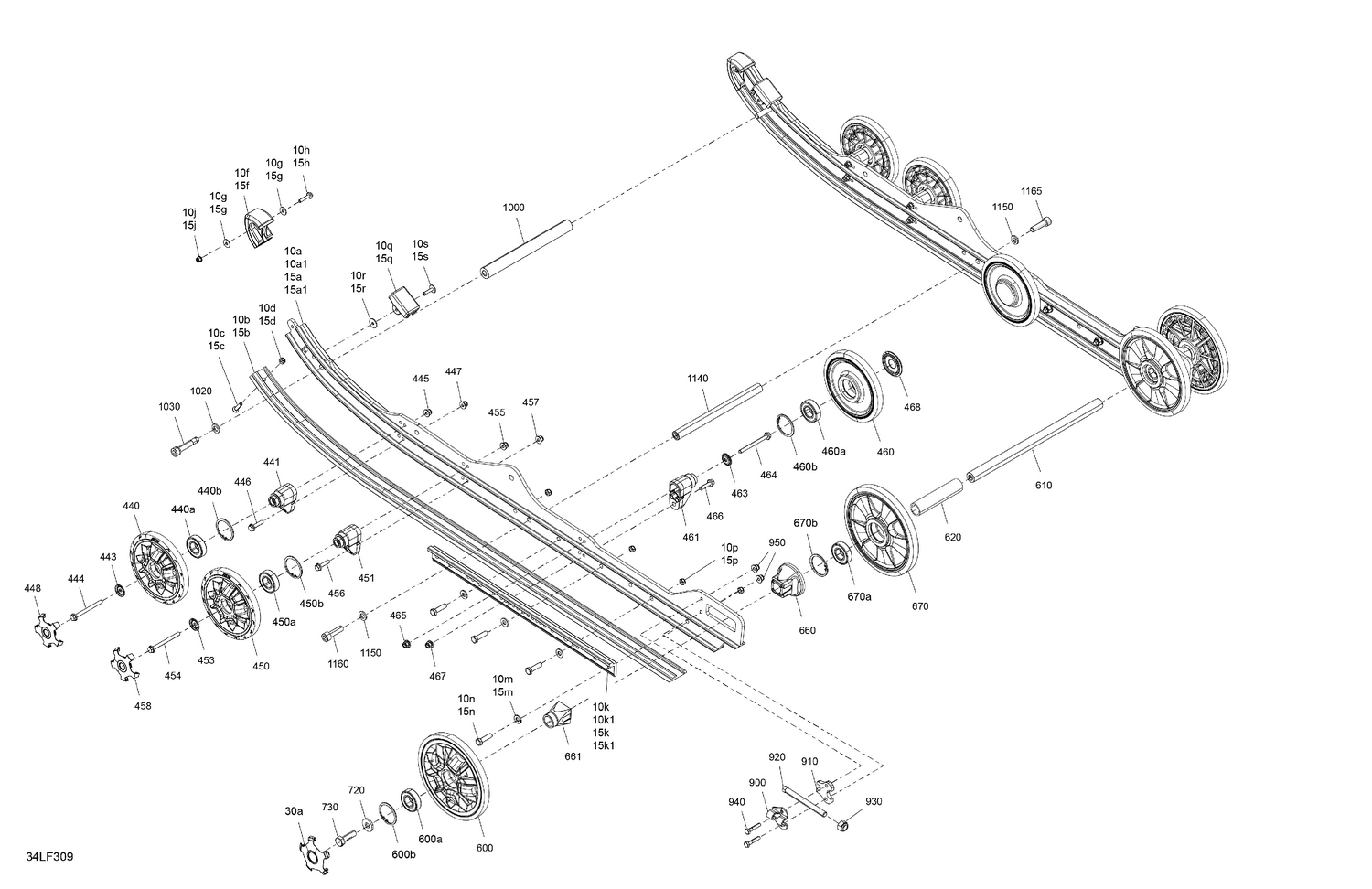

05- Suspension - Rear - Lower Section
Parts (80)
| Ref | Part Number | Description |
|---|---|---|
| 10a1 | 503196188 | Rail Suspension 129 |
| 10b | 503197188 | Slide Suspension 129 |
| 10c | 208562531 | Phillips Screw M6 X 25 |
| 10d | 232561414 | Elastic Stop Nut M6 |
| 10f | 503196872 | Rail Protector |
| 10g | 250200140 | Washer |
| 10h | 207652544 | Hex. Flange Screw M5 X 25 |
| 10j | 233251434 | Flanged Elastic Nut M5 This part replaces 233251414. |
| 10k1 | 503197293 | Rail Reinforcement |
| 10m | 503192494 | Washer |
| 10n | 207183054 | Hex. Cap Screw M8 X 30 |
| 10p | 233281466 | Elastic Flang Nut M8 |
| 10q | 503190576 | Rubber Stopper |
| 10r | 503191273 | Washer |
| 10s | 293150256 | Rivet Ornit 4.8 X 27.5 |
| 15a1 | 503196188 | Rail Suspension 129 |
| 15b | 503197188 | Slide Suspension 129 |
| 15c | 208562531 | Phillips Screw M6 X 25 |
| 15d | 232561414 | Elastic Stop Nut M6 |
| 15f | 503196872 | Rail Protector |
| 15g | 250200140 | Washer |
| 15h | 207652544 | Hex. Flange Screw M5 X 25 |
| 15j | 233251434 | Flanged Elastic Nut M5 This part replaces 233251414. |
| 15k1 | 503197293 | Rail Reinforcement |
| 15m | 503192494 | Washer |
| 15n | 207183054 | Hex. Cap Screw M8 X 30 |
| 15p | 233281466 | Elastic Flang Nut M8 |
| 15q | 503190576 | Rubber Stopper |
| 15r | 503191273 | Washer |
| 15s | 293150256 | Rivet Ornit 4.8 X 27.5 |
| 30a | 503195348 | Black, Wheel Cap |
| 440a | 503190396 | Ball Bearing |
| 440b | 415129371 | Retaining Ring |
| 441 | 503193894 | Casted Support |
| 443 | 503191820 | Wheel Cup M6 |
| 444 | 250000944 | Hex. Flange Screw M6 X 70 |
| 445 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 446 | 250000945 | Hex. Flange Screw M6 X 25 |
| 447 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 448 | 503195345 | Black, Wheel Cap |
| 450a | 503190396 | Ball Bearing |
| 450b | 415129371 | Retaining Ring |
| 451 | 503193894 | Casted Support |
| 453 | 503191820 | Wheel Cup M6 |
| 454 | 250000944 | Hex. Flange Screw M6 X 70 |
| 455 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 456 | 250000945 | Hex. Flange Screw M6 X 25 |
| 457 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 458 | 503195345 | Black, Wheel Cap |
| 460a | 503190396 | Ball Bearing |
| 460b | 415129371 | Retaining Ring |
| 461 | 503193894 | Casted Support |
| 463 | 503191820 | Wheel Cup M6 |
| 464 | 250000944 | Hex. Flange Screw M6 X 70 |
| 465 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 466 | 207663056 | Hex Flange Screw M6 X 1.0 X 30 |
| 467 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 468 | 503192771 | Black, Wheel Cap |
| 600a | 503190396 | Ball Bearing |
| 600b | 415129371 | Retaining Ring |
| 610 | 503190429 | Rear Axle |
| 620 | 503191263 | Rear Spacer |
| 660 | 503196753 | Rear Wheel Support |
| 661 | 503197375 | Rear Wheel Spacer |
| 670a | 503190396 | Ball Bearing |
| 670b | 415129371 | Retaining Ring |
| 720 | 503190439 | Washer |
| 730 | 250000817 | Hex Screw With Nilon Patch, M10 X 35 |
| 900 | 503192583 | Tensioner |
| 910 | 503193250 | Spacer |
| 920 | 230100054 | Hex Screw M10 x 100 |
| 930 | 233601466 | Elastic Locking Nut M10 |
| 940 | 207063054 | Hex. Cap Screw M6 X 30 |
| 950 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 1000 | 503195015 | Limiter Strap Shaft |
| 1020 | 503192496 | Washer |
| 1030 | 205505054 | Socket Screw |
| 1140 | 503191260 | Axle Strap |
| 1150 | 503192496 | Washer |
| 1160 | 205503554 | Socket Head Screw M10 X 35 |
