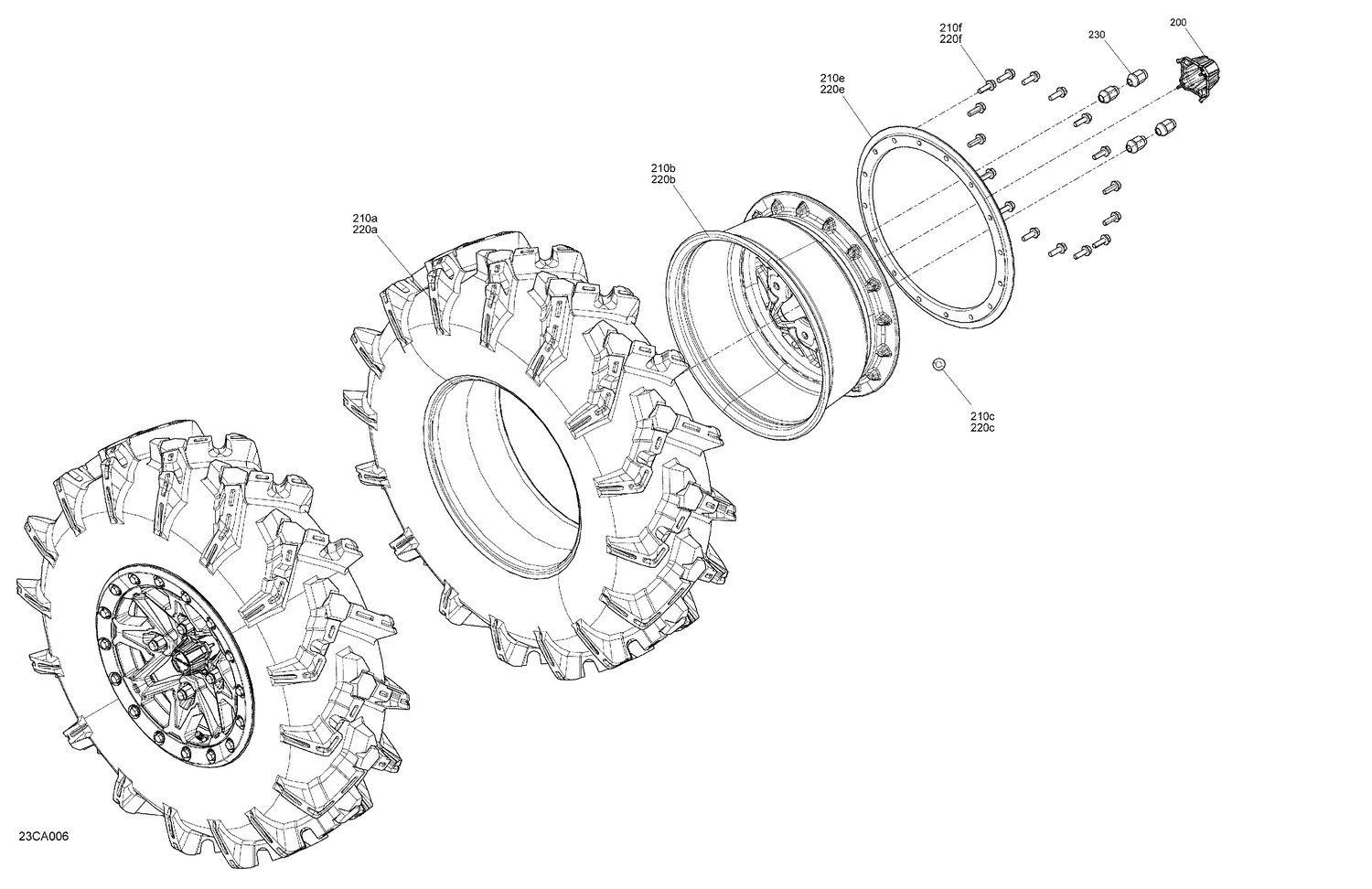

04- Drive - Front Wheels - XMR
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 200 | 705401841 | Wheel Cap |
| 210a | 705402504 | Tire 30X9R14 |
| 210b | 705402473 | Manta Green, 14" Rim |
| 210bb | 293450360 | Insert |
| 210c | 705402595 | Tire Valve Ass'y |
| 210e | 705402472 | Disc Plate |
| 210f | 250000893 | Flange Screw M8 X 25 |
| 220a | 705402504 | Tire 30X9R14 |
| 220b | 705402473 | Manta Green, 14" Rim |
| 220bb | 293450360 | Insert |
| 220c | 705402595 | Tire Valve Ass'y |
| 220e | 705402472 | Disc Plate |
| 220f | 250000893 | Flange Screw M8 X 25 |
