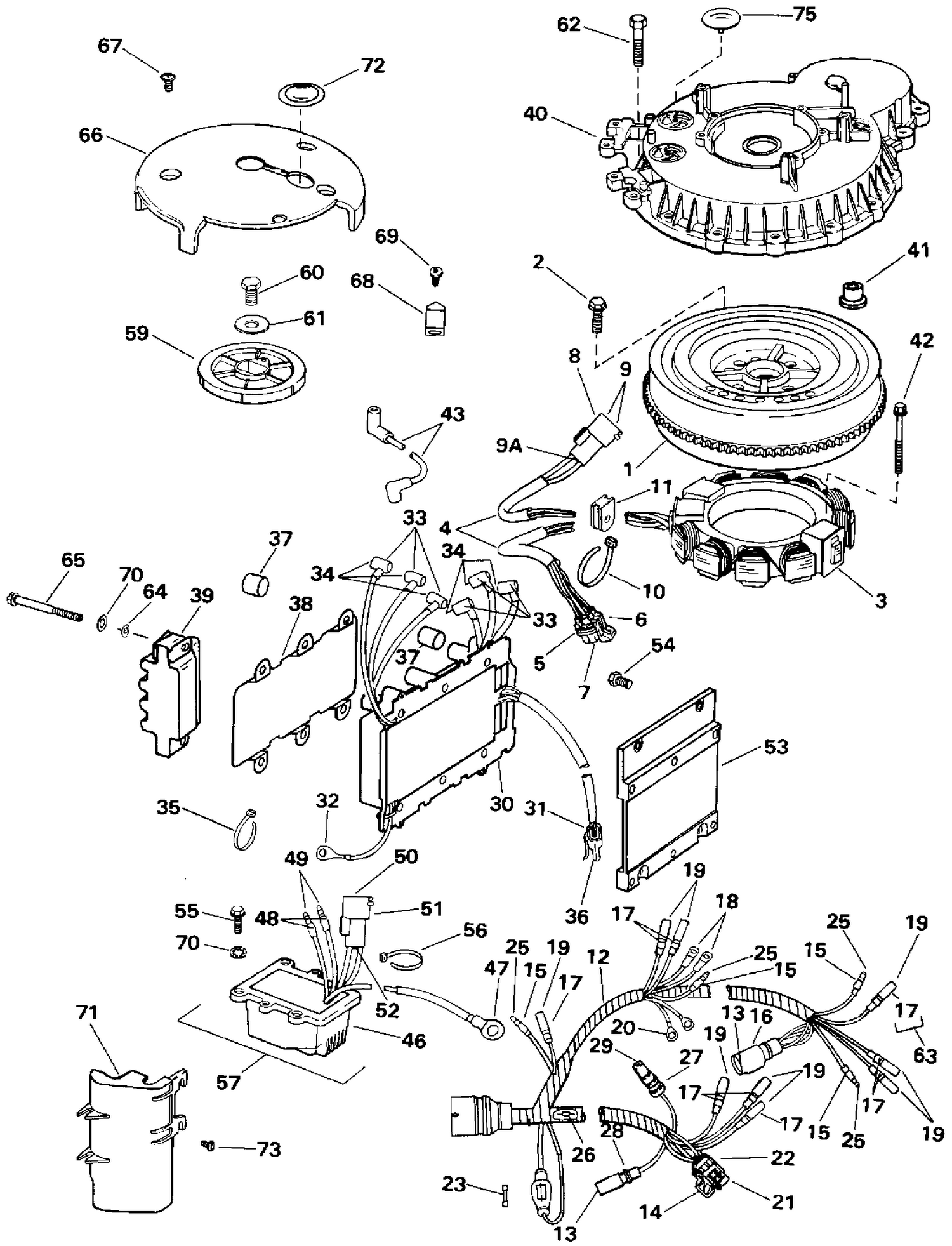

| Ref | Part Number | Description |
|---|
| 1 |
0584350 |
FLYWHEEL Assy |
| 2 |
0336135 |
SCREW, Flywheel |
| 3 |
0584981 |
STATOR Assy |
| 11 |
0336732 |
GROMMET |
| 12 |
0584855 |
ENGINE CABLE ASSY. |
| 30 |
0584986 |
POWER PACK, Gray sleeve |
| 30 |
0584989 |
POWER PACK, Blue sleeve |
| 37 |
0513986 |
TUBING, Wire protector |
| 39 |
0583740 |
COIL Assy |
| 40 |
0433581 |
COVER Assy, Flywheel |
| 42 |
0308995 |
SCREW, Front mount |
| 43 |
0582365 |
H.T. LEAD ASSEMBLY, Spark plugs to ignition coil |
| 43 |
0584924 |
LEAD ASSY., Ignition coil (16 1/2 in.) |
| 43 |
5005805 |
ENSEMBLE CÂBLAGE, bobine allumage, 15½ " (394 mm) This part replaces 0584919. |
| 46 |
0584093 |
RECTIFIER & REGULATOR |
| 53 |
0338934 |
ADAPTOR, Power pack to block |
| 56 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 57 |
0350357 |
GASKET, BASE PLATE This part replaces 0335399. |
| 59 |
0513917 |
TIMING WHEEL |
| 61 |
0314099 |
RONDELLE, vis, pignon de distribution |
| 62 |
0909533 |
SCREW, Pressure relief valve cover |
| 63 |
0512742 |
DISPOSITIF DE RETENUE, connecteur |
| 65 |
0331102 |
SCREW, Coil to block |
| 66 |
0335428 |
CACHE, capteur |
| 68 |
0335204 |
INDICATEUR DE CALAGE |
| 71 |
0340125 |
BRACKET, Motor cable This part replaces 0335571. |
| 72 |
0316074 |
BOUCHON, couvercle de volant-moteur |
