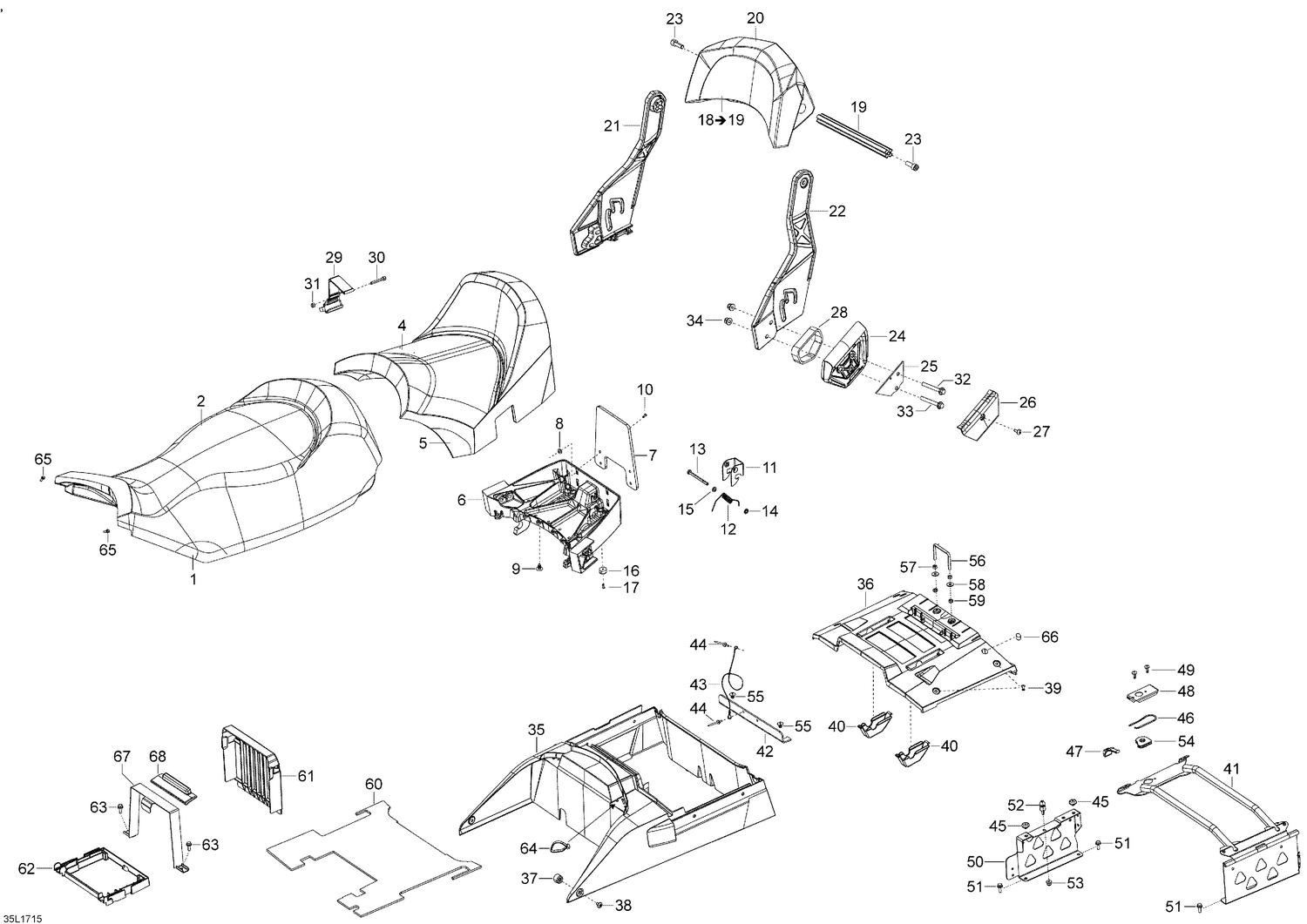

09- Seat 2 UP
Parts (65)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 510005999 | Front Seat Foam |
| 2 | 510006032 | Front Seat Cover |
| 4 | 510006042 | Rear Seat Cover |
| 5 | 510006094 | Rear Seat Foam |
| 6 | 510004816 | Seat Base |
| 7 | 510005330 | Backrest Plate |
| 8 | 234062410 | Flat Washer 6 mm |
| 9 | 414644300 | Black, Dart |
| 10 | 293150067 | Rivet |
| 11 | 708000144 | Lock |
| 12 | 708000369 | Spring |
| 13 | 207068044 | Screw Hex. M6 X 80 |
| 14 | 732610072 | Push Nut |
| 15 | 234061410 | Flat Washer 6 mm |
| 16 | 510006005 | Stopper Rubber |
| 17 | 293150015 | Pop Rivet 1/8" |
| 19 | Not | Available As Spare Part - Backrest Axle |
| 20 | 510006049 | Backrest Cover |
| 21 | 510005420 | RH Arm |
| 22 | 510005419 | LH Arm |
| 23 | 250000553 | Forming Screw M10 x 25 |
| 24 | 510005409 | Handle |
| 25 | 510005936 | Support Plate |
| 26 | 510005444 | Handle Cover |
| 27 | 250000676 | Forming Screw M5 x 16 |
| 28 | 510005613 | Adapter |
| 29 | 510005139 | Security Lock |
| 30 | 205065044 | SOCKET HEAD SCREW M6 X 50 - Call your local BRP dealership |
| 31 | 232561414 | Elastic Stop Nut M6 |
| 32 | 207689044 | Hex. Flange Screw M8 x 90 |
| 33 | 207688544 | Hex. Flange Screw M8 x 85 |
| 34 | 233281414 | Hex. Flange Elastic Nut M8 |
| 35 | 510006243 | Black Storage Box |
| 36 | 510006244 | Black Storage Box Cover |
| 37 | 510005147 | Bushing |
| 38 | 250000675 | Torx Truss Screw M6 x 12 |
| 39 | 293150104 | Pop Rivet 3/16 |
| 40 | 510004999 | Cover |
| 41 | 510005714 | Fastening Tube |
| 42 | 510005156 | Cable Support Plate |
| 43 | 293750070 | Seat Retainer Cable |
| 44 | 293150163 | Rivet Hucklok |
| 45 | 605452114 | Plug |
| 46 | 269700017 | Latch Spring |
| 47 | 510005072 | Puller |
| 48 | 510005698 | Lock Pin Cover |
| 49 | 250000676 | Forming Screw M5 x 16 |
| 50 | 510005845 | Locking Plate |
| 51 | 207561644 | Hex Flange Screw M6 X 16, Scotch Grip |
| 52 | 605452035 | LOCK PIN - Call your local BRP dealership |
| 53 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 54 | 510005044 | Lock Pin Guide |
| 55 | 293150104 | Pop Rivet 3/16 |
| 56 | 510004876 | FASTENER PIN - Call your local BRP dealership |
| 57 | 250000135 | Nut M6 |
| 58 | 20117 | Washer |
| 59 | 232561414 | Elastic Stop Nut M6 |
| 60 | 510005043 | Foam |
| 61 | 510005079 | Battery Cover |
| 62 | 515176804 | Battery Support |
| 63 | 207561644 | Hex Flange Screw M6 X 16, Scotch Grip |
| 64 | 605627000 | Tie Rap |
| 65 | 250000676 | Forming Screw M5 x 16 |
| 66 | 572051500 | Cap |
