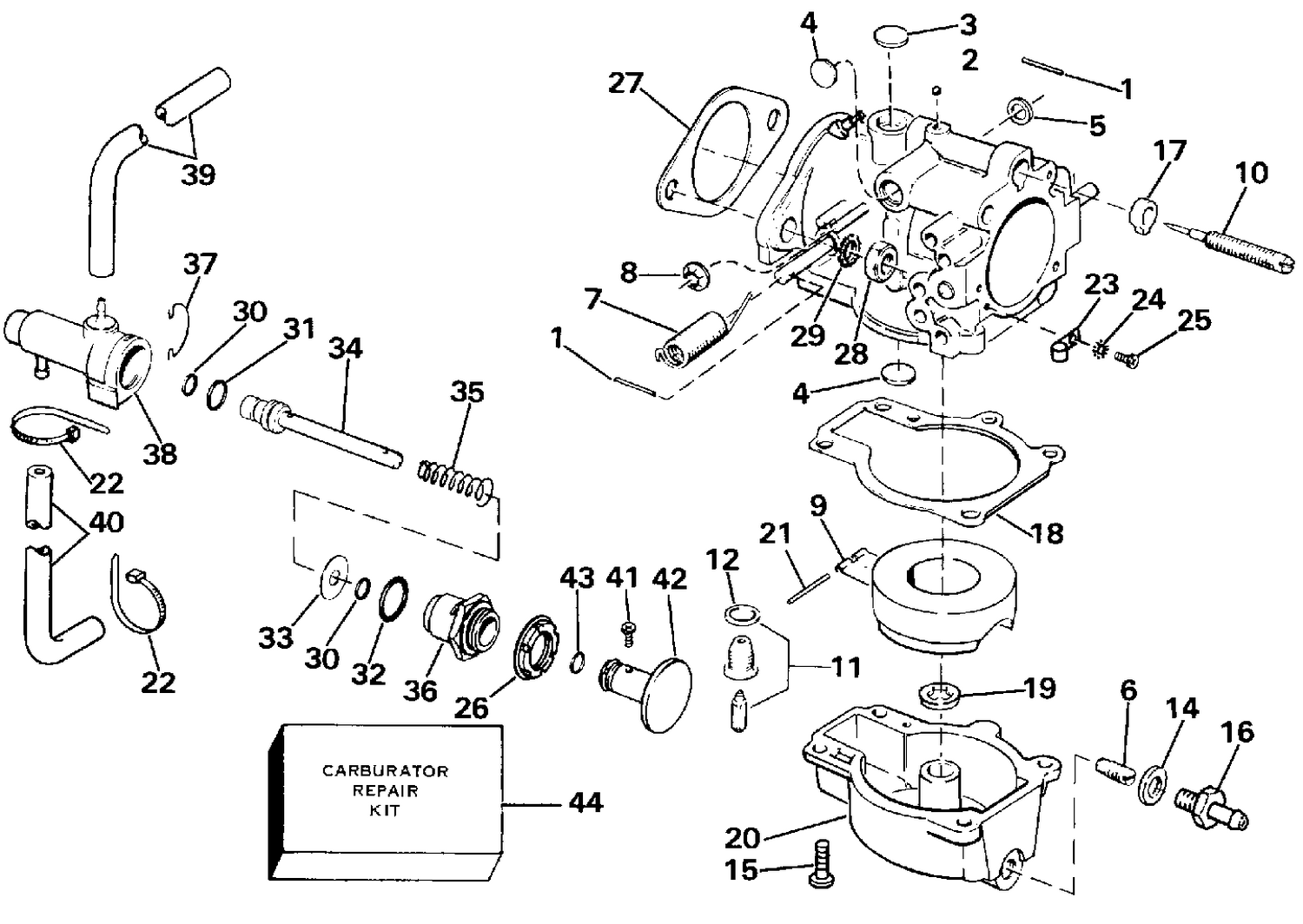

| Ref | Part Number | Description |
|---|
| 10 |
0330129 |
NEEDLE VALVE |
| 15 |
0319682 |
VIS, capteur vers plaque |
| 17 |
0315232 |
RETAINER , Needle valve stbd |
| 20 |
0387590 |
FLOAT CHAMBER |
| 22 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 26 |
0329670 |
NUT |
| 27 |
0325092 |
GASKET |
| 29 |
0306799 |
L'WASHER,Bracket to hsg. |
| 32 |
0909678 |
JOINT TORIQUE, interrupteur d'aspiration vers support |
| 36 |
0398868 |
END CAP This part replaces 0328805. |
| 39 |
HOSE, |
Primer to carb. 356mm (14") |
| 40 |
HOSE, |
Carb. to primer 114mm (4-1/2") |
| 41 |
0329054 |
SCREW |
| 42 |
0395781 |
KNOB & DETENT ASSY |
| 43 |
0330992 |
JOINT TORIQUE, bouton |
| 0394021 |
5007336 |
Kit Ay This part replaces 0394021. |
| 0394055 |
0394055 |
CARBURETOR ASSY. |
