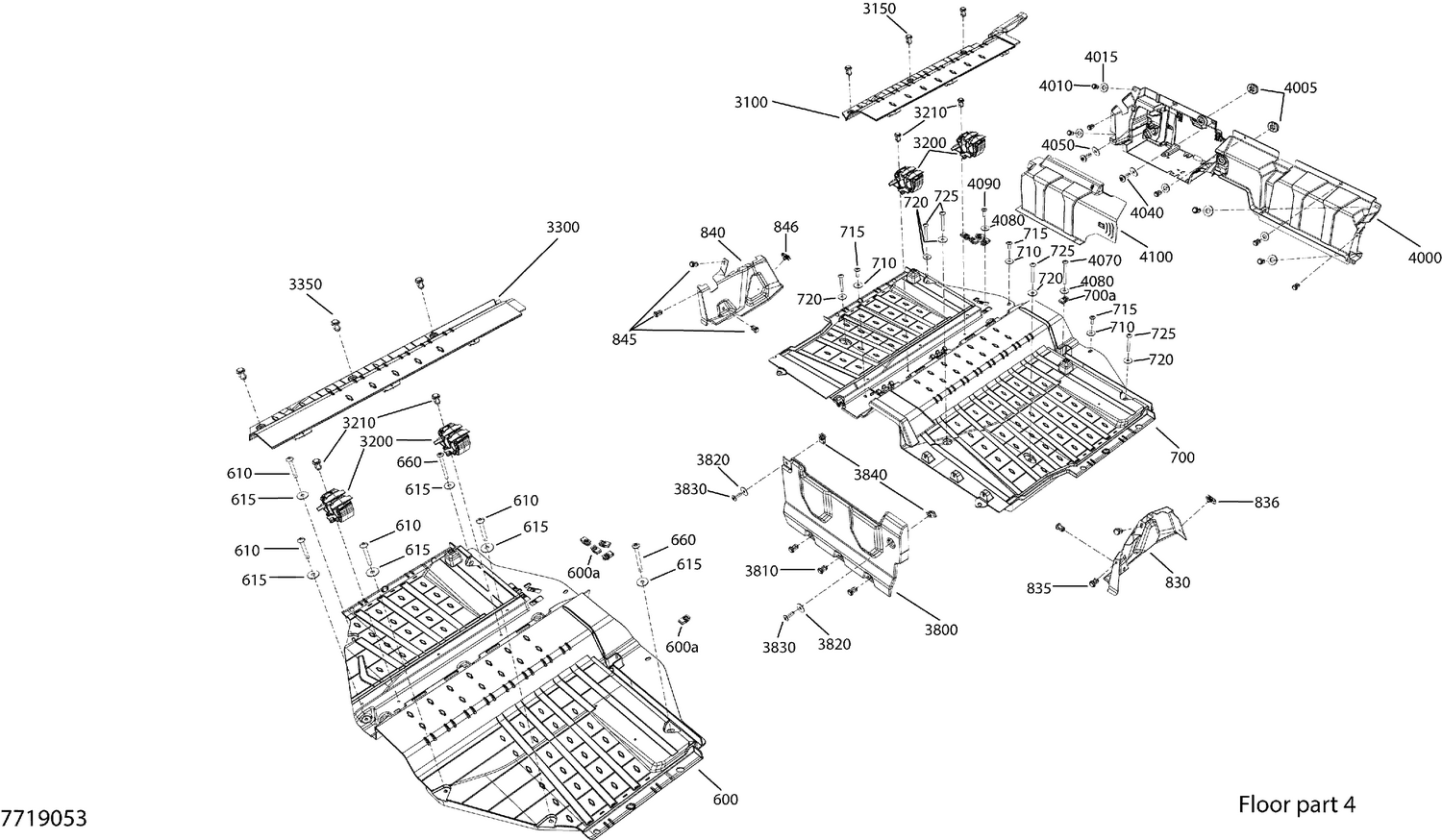

09- Cab Interior - Except XT CAB - Floor Section
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 600a | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 610 | 250000868 | Torx Truss M6 X 50 |
| 615 | 250200162 | Flat Washer M6.6 X 22 |
| 660 | 250000954 | Torx Screw M6 X 70 |
| 700a | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 710 | 234062670 | Stainless Steel Flat Washer |
| 715 | 250000722 | Torx Screw M6 X 20 |
| 720 | 250200162 | Flat Washer M6.6 X 22 |
| 725 | 250000868 | Torx Truss M6 X 50 |
| 830 | 707900994 | LH Lower Panel This part replaces 707900443. |
| 835 | 293150230 | Tuflok Plastic Rivet |
| 836 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 840 | 707900444 | RH Lower Cover |
| 845 | 293150230 | Tuflok Plastic Rivet |
| 846 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 3100 | 707900806 | Floor Panel This part replaces 707900324. |
| 3150 | 293150230 | Tuflok Plastic Rivet |
| 3200 | 707900325 | Hose Support |
| 3210 | 293150230 | Tuflok Plastic Rivet |
| 3300 | 707900413 | Floor Cover |
| 3350 | 293150230 | Tuflok Plastic Rivet |
| 3800 | 707900996 | Rear Panel This part replaces 707900426. |
| 3810 | 293150230 | Tuflok Plastic Rivet |
| 3820 | 250200162 | Flat Washer M6.6 X 22 |
| 3830 | 250000722 | Torx Screw M6 X 20 |
| 3840 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 4000 | 707900228 | Rear Lower Bulkhead |
| 4005 | 705005156 | Oval Washer |
| 4010 | 293150230 | Tuflok Plastic Rivet |
| 4015 | 503192494 | Washer |
| 4040 | 250000722 | Torx Screw M6 X 20 |
| 4050 | 234062670 | Stainless Steel Flat Washer |
| 4070 | 250000954 | Torx Screw M6 X 70 |
| 4080 | 250200162 | Flat Washer M6.6 X 22 |
| 4090 | 250000722 | Torx Screw M6 X 20 |
