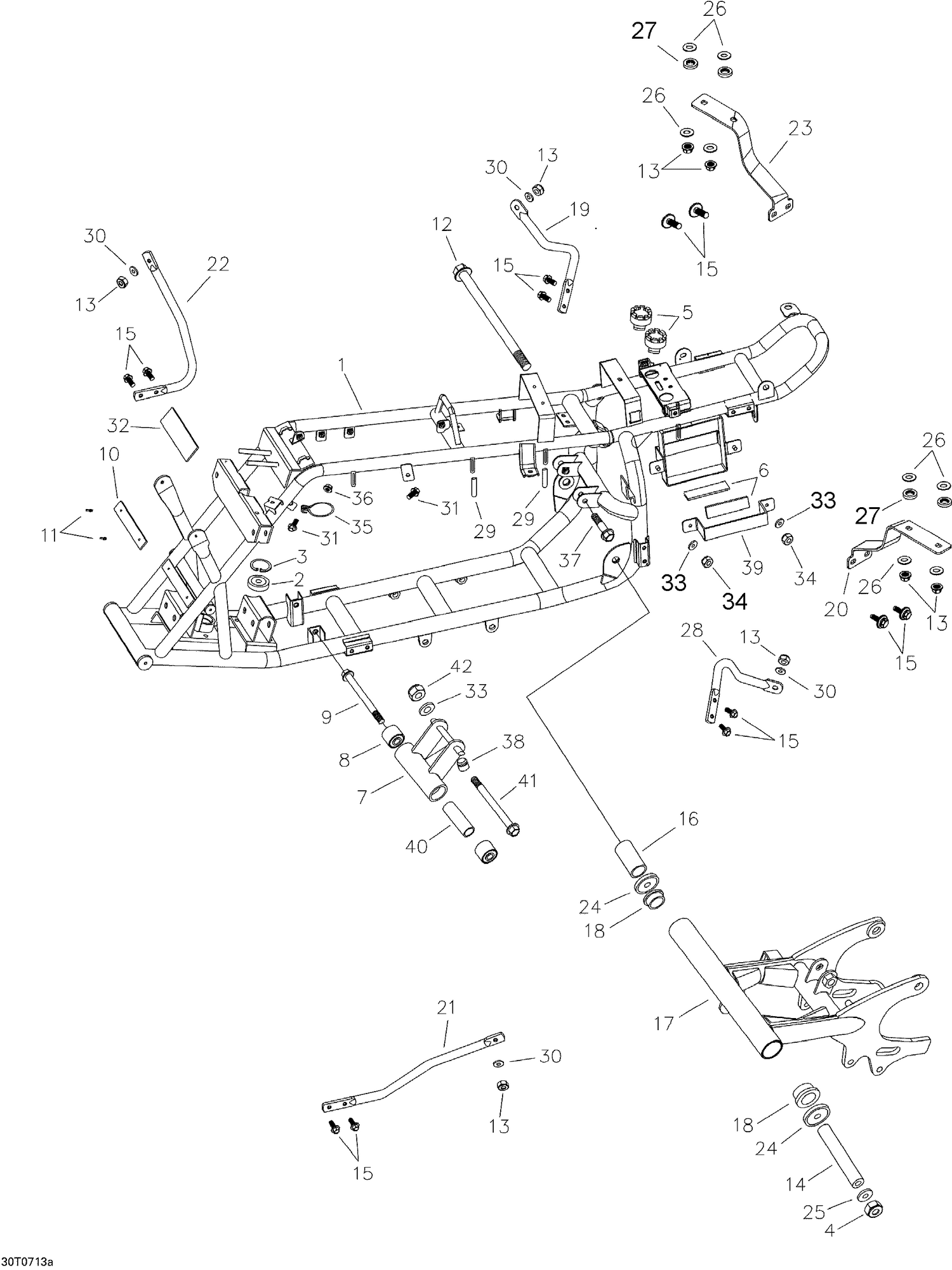

09- Frame
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A50100238001 | Frame |
| 2 | A961006002ZZ | Radial Ball Bearing, 6002ZZ |
| 3 | A945123200R | INTERNAL CIRCLIP - Call your local BRP dealership |
| 4 | A9035014000 | NYLON NUT M14 - Call your local BRP dealership |
| 5 | A77211145000 | Rubber |
| 6 | A17505145000 | SPONGE PAD - Call your local BRP dealership |
| 7 | A50350175000 | Engine Bracket |
| 8 | A96400102820 | RUBBER BUSHING - Call your local BRP dealership |
| 9 | A960001011014G | Hexagonal Washer Face Bolt |
| 10 | A50110145000 | Frame No. Plate |
| 11 | A90662105000 | Rivet |
| 12 | A960001429019 | HEXAGONAL WASHER FACE BOLT M14X290 - Call your local BRP dealership |
| 13 | A9035006000 | NYLON NUT M6 - Call your local BRP dealership |
| 14 | A52104145000 | SWING ARM SPACER - Call your local BRP dealership |
| 15 | A920000601410 | HEXAGONAL BOLT M6 X 14 - Call your local BRP dealership |
| 16 | A52101145001 | Rubber Sleeve |
| 17 | A52100145004 | SWING ARM SUB ASS'Y - Call your local BRP dealership |
| 18 | A52103145000 | BUSH - Call your local BRP dealership |
| 19 | A83401155000 | REAR COVER LOWER RIGHT FIXED POLE - Call your local BRP dealership |
| 20 | A83402166000 | Rear Cover Up Left Fixed Plate |
| 21 | A64307155000 | FRONT COVER LEFT FIXED POLE - Call your local BRP dealership |
| 22 | A64308155000 | FRONT COVER RIGHT FIXED POLE - Call your local BRP dealership |
| 23 | A83403166000 | REAR COVER UP RIGHT FIXED PLATE - Call your local BRP dealership |
| 24 | A52144145000 | SWING ARM SEAL COVER - Call your local BRP dealership |
| 25 | A941011426030 | Plain Washer, 14 X 26 X 3 |
| 26 | A941010614020 | PLAIN WASHER, 6 X 14 X 2 - Call your local BRP dealership |
| 27 | A94102145000 | Rubber Washer |
| 28 | A83404155000 | Rear Cover Lower Left Fixed Pole |
| 29 | A11357145000 | Cable Clamp Rubber |
| 30 | A941010618020 | PLAIN WASHER, 6 X 18 X 2 - Call your local BRP dealership |
| 31 | A920000601610 | HEXAGONAL BOLT M6 X 16 - Call your local BRP dealership |
| 32 | ABO907559 | Frame Decal |
| 33 | A941051022025G | PLAIN WASHER - Call your local BRP dealership |
| 34 | A941010615010 | PLAIN WASHER - Call your local BRP dealership |
| 35 | A9451045000 | CLIP - Call your local BRP dealership |
| 36 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 37 | A960001004014G | HEXAGONAL WASHER FACE BOLT M10X40 - Call your local BRP dealership |
| 38 | A95011101000 | Rubber Damper |
| 39 | A31504145000 | BATTERY BRACKET - Call your local BRP dealership |
| 40 | A50358175001 | Spacer |
| 41 | A960001017014 | Hexagonal Washer Face Bolt |
