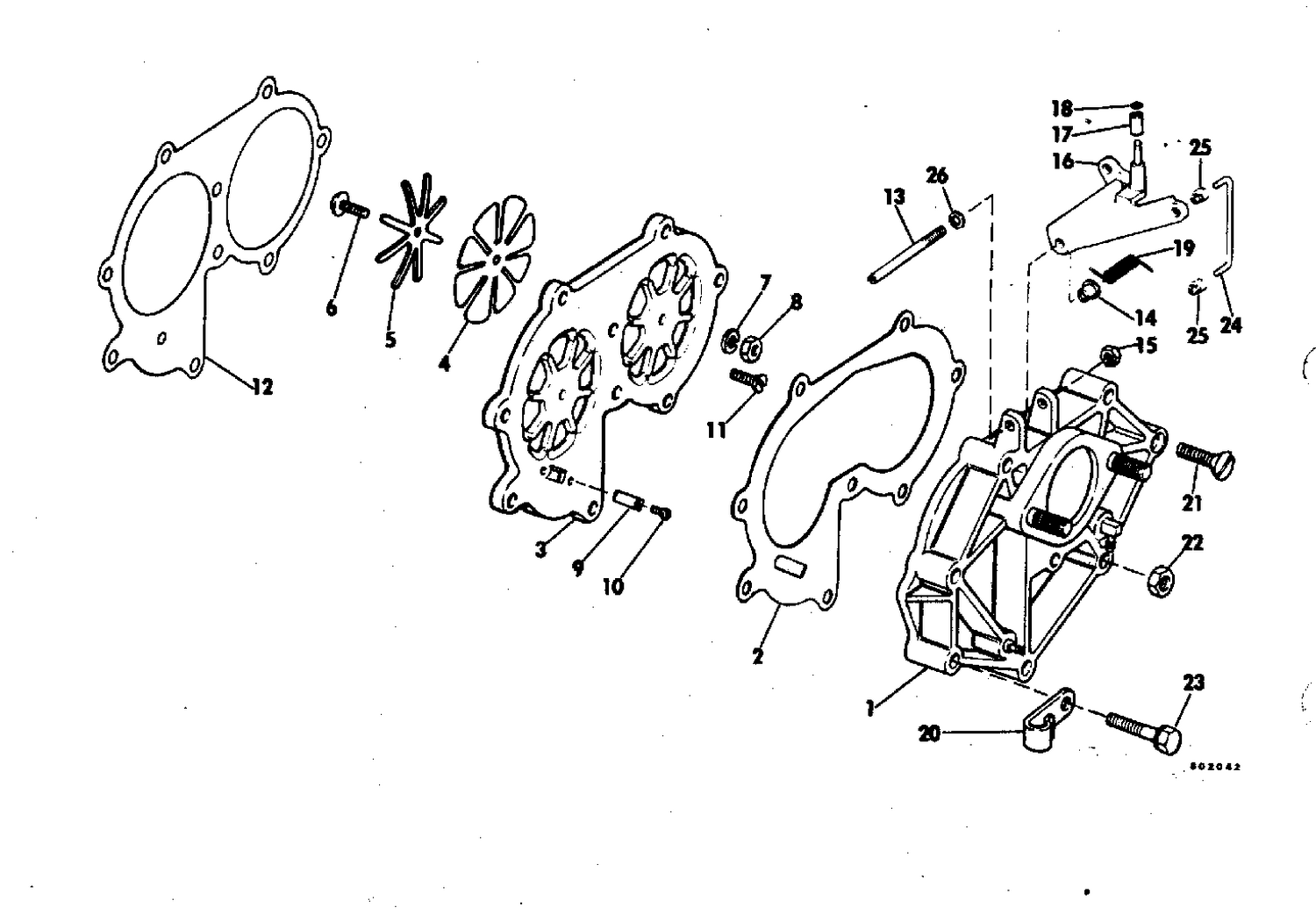

| Ref | Part Number | Description |
|---|
| 1 |
0396788 |
MANIFOLD, Intake This part replaces 0386792. |
| 2 |
0326260 |
GASKET, Manifold This part replaces 0321573. |
| 10 |
0303761 |
SCREW |
| 11 |
0307609 |
SCREW |
| 12 |
0321479 |
GASKET, Plate to crankcase |
| 13 |
0320318 |
PIN, Cam follower |
| 16 |
0390765 |
CAM FOLLOWER |
| 17 |
0305232 |
ROLLER, Cam foller |
| 18 |
0307529 |
JOINT TORIQUE, galet vers contre-came |
| 19 |
0320157 |
RETAINING RING, Roller |
| 20 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309322. |
| 21 |
0304294 |
SCREW Manifold to crankcase |
| 22 |
0133175 |
NUT, Manifold to crankcase |
| 23 |
0303459 |
ECREW,Exhaust cover,1-1/2"long |
| 24 |
0320150 |
LIN, Carb to cam follower |
| 25 |
0313329 |
LOCKWASHER, Carburetor link |
| 0390561 |
0437712 |
LEAF PLATE ASSEMBLY This part replaces 0390561. |
