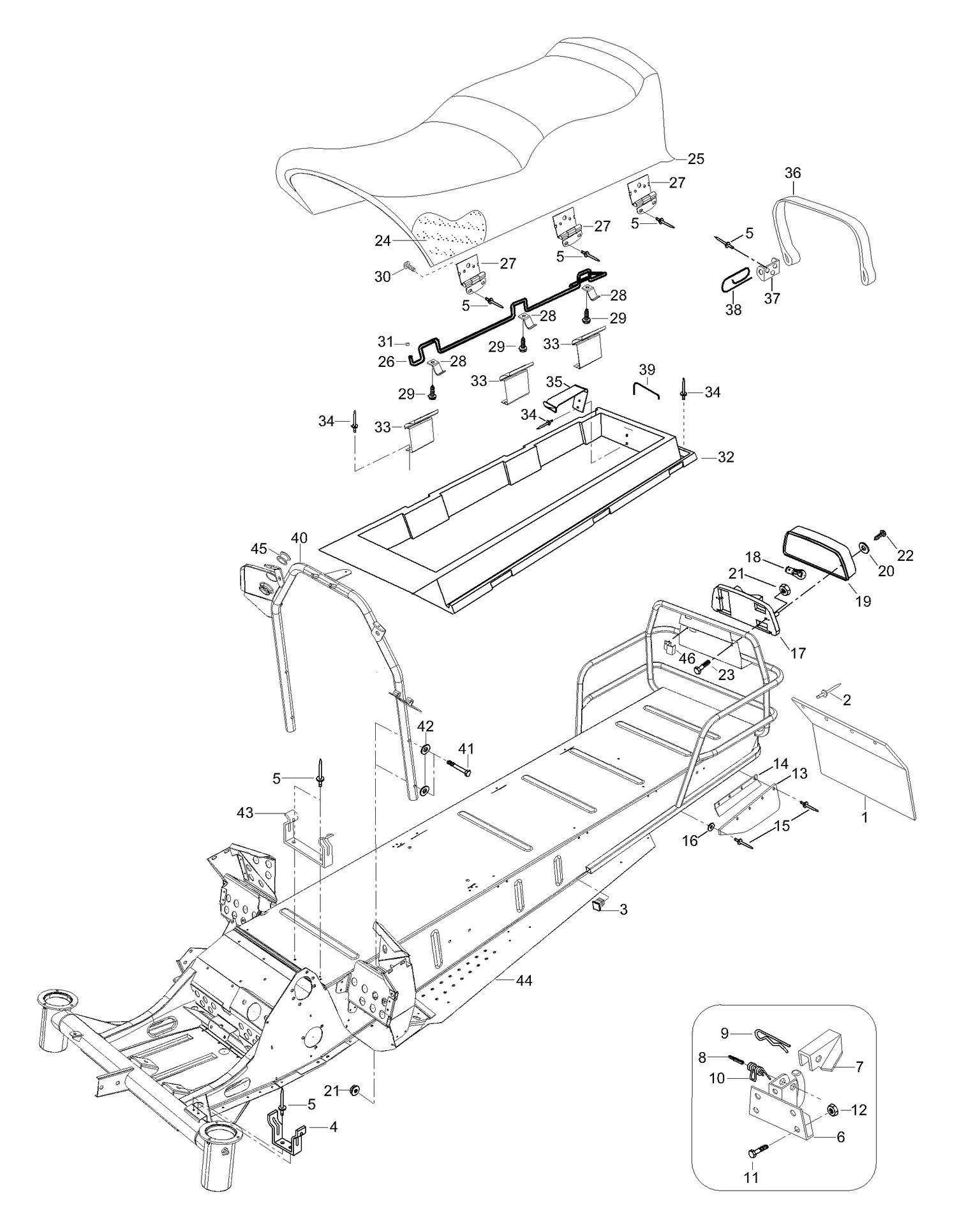

| Ref | Part Number | Description |
|---|
| 1 |
534727 |
Snow guard |
| 2 |
36037 |
Rivet |
| 3 |
28232 |
Plugg |
| 4 |
518202100 |
Pulley guard bracket |
| 5 |
36083 |
Rivet |
| 6 |
5344156 |
HITCH ASS'Y - Call your local BRP dealership This part replaces 5344208. |
| 7 |
5440767 |
Lock |
| 8 |
41012 |
Cotter pin |
| 9 |
41029 |
Pin |
| 10 |
545693 |
SPRING - Call your local BRP dealership |
| 11 |
40336 |
HEX. SCREW M8 X 20 - Call your local BRP dealership |
| 12 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 13 |
5142828 |
Snow guard, side |
| 14 |
5346740 |
R.H. Reinforcement |
| 14 |
5346741 |
L.H. Reinforcement |
| 15 |
36097 |
Rivet Profix 4.0x13 Al musta(1=50pcs) - Call your local BRP dealership |
| 16 |
20037 |
Washer |
| 17 |
414979400 |
Tail lamp housing |
| 18 |
520000758 |
Bulb This part replaces 410504000. |
| 19 |
414513700 |
Lens |
| 20 |
414516400 |
Washer - Call your local BRP dealership |
| 21 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 22 |
40613 |
Screw |
| 23 |
40032 |
Screw M6x30 |
| 24 |
5145106 |
Foam |
| 25 |
5146633 |
Cover |
| 26 |
5245337 |
Locking shaft |
| 27 |
5346518 |
HINGE - Call your local BRP dealership |
| 28 |
5446102 |
Locking plate |
| 29 |
40888 |
Screw 4,2x19 |
| 30 |
40887 |
Screw 4,2x9,5 |
| 31 |
28019 |
Plug |
| 32 |
5144963 |
Seat housing |
| 33 |
5345195 |
LOCKING DEVICE - Call your local BRP dealership |
| 34 |
36489 |
Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 35 |
5346728 |
Spring plate |
| 36 |
5346727 |
Seat belt |
| 37 |
548824 |
FASTENING - Call your local BRP dealership |
| 38 |
548834 |
Spring for belt |
| 39 |
5441849 |
Stopper Hook |
| 40 |
5245059 |
Handle steering support |
| 41 |
40002 |
Screw M6x40 |
| 42 |
20003 |
Washer |
| 43 |
5346204 |
Support Spring |
| 44 |
5147955 |
Frame assy |
| 45 |
28040 |
Grommet |
