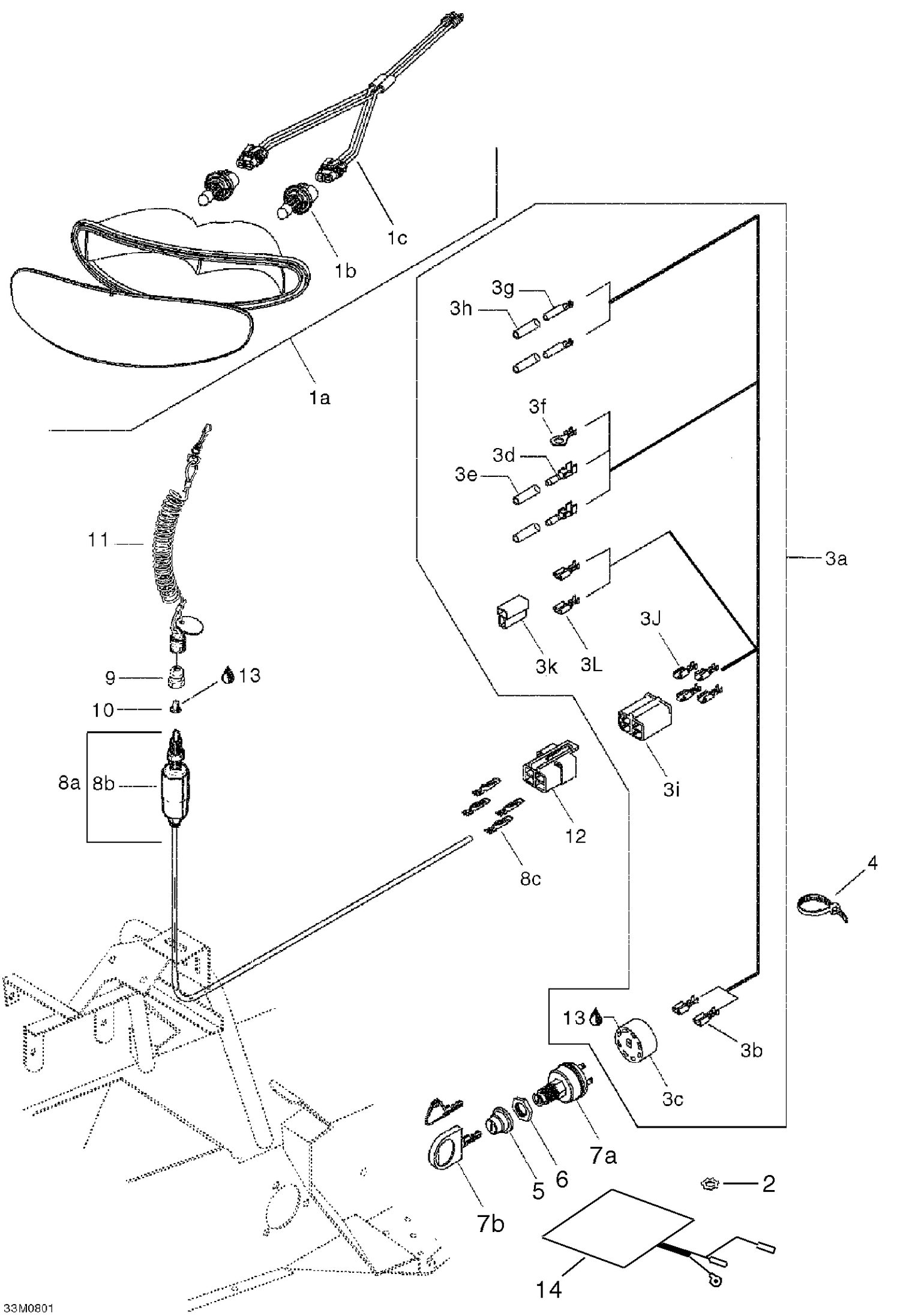

| Ref | Part Number | Description |
|---|
| 1b |
415128619 |
BULB - Call your local BRP dealership |
| 1c |
415128618 |
HEAD LAMP HARNESS - Call your local BRP dealership |
| 2 |
234461608 |
External Serrated Lock Washer 6 mm |
| 3L |
515175231 |
Female Terminal |
| 3b |
561503100 |
FEMALE TERMINAL - Call your local BRP dealership This part replaces 409205300. |
| 3c |
572150700 |
FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership |
| 3d |
278000230 |
Male Terminal |
| 3e |
278001008 |
Insulated Sheath |
| 3f |
278000992 |
Open Barrel |
| 3g |
278001009 |
Female Terminal This part replaces 290964068. |
| 3h |
278001007 |
Insulated Sheath This part replaces 290964072. |
| 3i |
409204900 |
FEMALE HOUSING - Call your local BRP dealership |
| 3j |
515175724 |
Female Terminal |
| 3k |
515175658 |
Female Housing, 2 Circuits |
| 4 |
293750002 |
Tie Wrap 142 mm |
| 5 |
570013700 |
Switch Boot |
| 6 |
410112100 |
FACE NUT - Call your local BRP dealership |
| 7a |
515176548 |
IGNITION SWITCH - Call your local BRP dealership This part replaces 410113601. |
| 7b |
Not |
Available As Spare Part - blank key |
| 8b |
515175653 |
Brake Switch This part replaces 515175571. |
| 8c |
409210000 |
MALE TERMINAL - Call your local BRP dealership |
| 9 |
515145900 |
Switch Nut |
| 10 |
570151100 |
Plunger Cap |
| 11 |
515176464 |
CAP ASS'Y - Call your local BRP dealership |
| 12 |
409209300 |
MALE HOUSING - Call your local BRP dealership |
| 13 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
