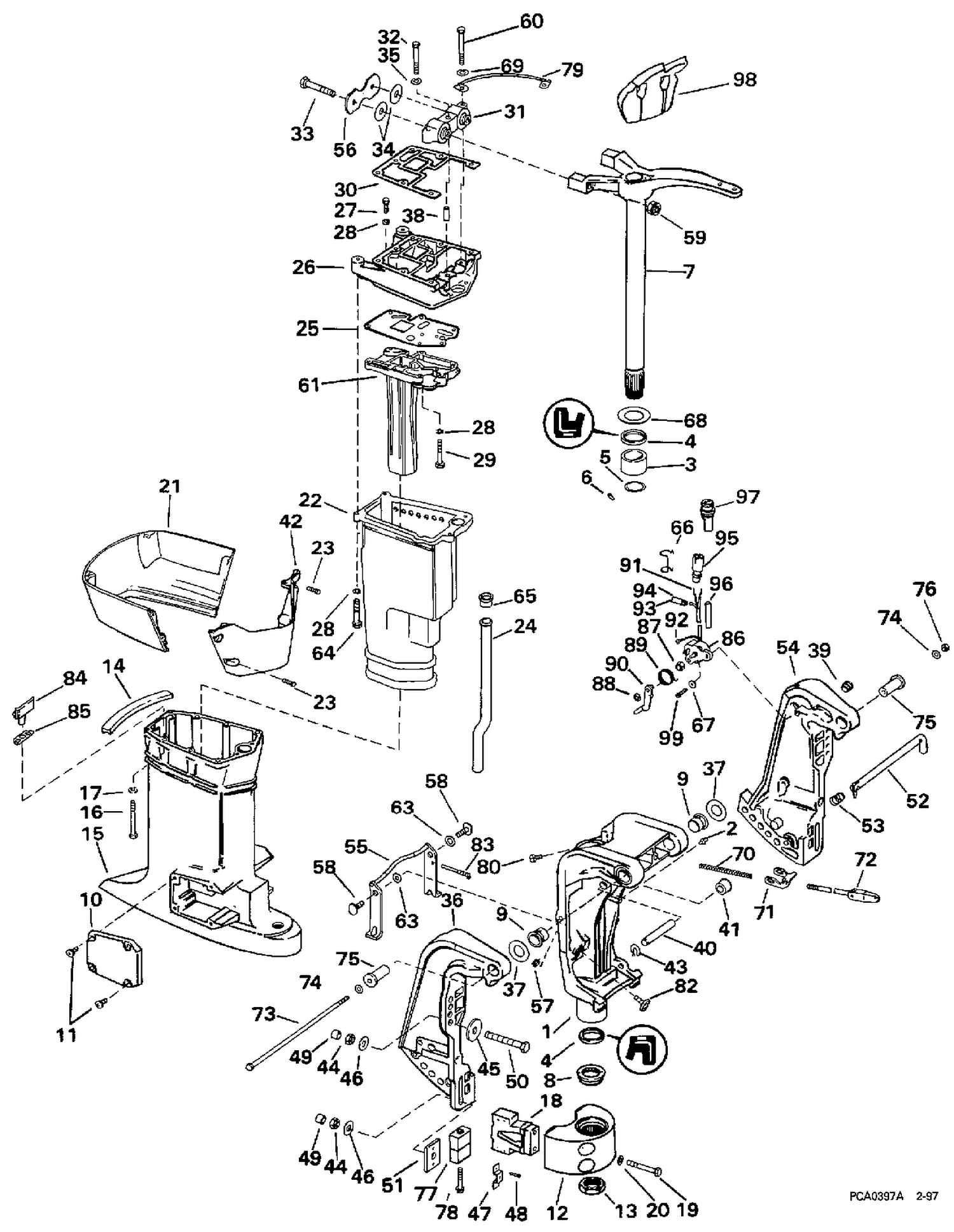

| Ref | Part Number | Description |
|---|
| 1 |
0396961 |
SWIVEL BRACKET |
| 3 |
0329291 |
BAGUE |
| 7 |
0434933 |
STEERING ARM ASSEMBLY |
| 8 |
0327696 |
CONTRE-CROU, arbre d'articulation |
| 9 |
0321035 |
BRUSHING, Swivel bracket |
| 10 |
0321673 |
COVER, Mount bracket lower |
| 11 |
0329894 |
SCREW |
| 12 |
0340773 |
MOUNT BRACKET |
| 13 |
0320746 |
CROU, support de montage |
| 14 |
0314024 |
SEAL HOUSING, Outer |
| 15 |
0340772 |
EXHAUST HOUSING, Outer |
| 16 |
0326900 |
SCREW, Exhaust housing |
| 17 |
0307708 |
RONDELLE GROWER |
| 18 |
0434331 |
RUBBER MOUNT, Lower |
| 19 |
0318612 |
SCREW, Bracket to cover |
| 20 |
0307708 |
RONDELLE GROWER |
| 21 |
0340777 |
COVER, Housing, rear |
| 22 |
0337023 |
EXHAUST HOUSING |
| 24 |
0319281 |
WASHER TUBE |
| 25 |
0336308 |
GASKET |
| 26 |
0344363 |
ADAPTER, Exhaust housing This part replaces 0336274. |
| 27 |
0329894 |
SCREW |
| 30 |
0329828 |
GASKET, Adapter to powerhead |
| 31 |
0436394 |
RUBBER MOUNT ASSEMBLY, Upper |
| 32 |
0306836 |
SCR,Altnr brkt |
| 33 |
0321653 |
SCREW, Upper mount |
| 34 |
0313580 |
WASHER |
| 36 |
0395844 |
STEERING BRACKET, ASSY., Stbd. |
| 38 |
0331019 |
DOWEL, Adapter to upper mount |
| 40 |
0320792 |
PIN |
| 42 |
0340778 |
COVER, Exhaust housing, front |
| 43 |
0321054 |
SPRING CLIP |
| 44 |
0363254 |
NUT, Stern bracket screw This part replaces 0313623. |
| 45 |
0307238 |
RONDELLE |
| 46 |
0320248 |
RONDELLE, écrou |
| 47 |
0318273 |
Bolt hex retainer 1/2 in. |
| 48 |
0319886 |
SCREW |
| 49 |
0318572 |
Bolt thread protective cap 1/2 in. |
| 50 |
0331578 |
Engine mount bolt 5 x 1/2 in. |
| 50 |
0363011 |
SCREW, Stern bracket mounting, 1/2 x 5.75 in. (146 mm) This part replaces 0321577. |
| 50 |
0363012 |
SCREW, Bracket mounting This part replaces 0336676. |
| 51 |
0318272 |
Nut backing plate (square) 1/2 in. |
| 52 |
0436541 |
ROD Assy, Thrust |
| 53 |
0321053 |
SORUBG,Thrust rod |
| 54 |
0396309 |
STERN BRACKET ASSEMBLY, Port |
| 55 |
0390442 |
LOCATING LEVER, Rod |
| 56 |
0321935 |
RETAINING PLATE |
| 58 |
0329109 |
SHOULDER SCREW |
| 59 |
0315511 |
NUT, Bracket to mount support |
| 60 |
0306423 |
BOLT |
| 61 |
0337024 |
MEGAPHONE |
| 64 |
0329110 |
VIS, boîtier d'échappement vers bloc cylindres-carter This part replaces 0319358. |
| 65 |
0319043 |
SEAL, Water tube upper |
| 66 |
0512741 |
DISPOSITIF DE RETENUE, conn. de l'interrupteur thermostatique |
| 68 |
0320866 |
RONDELLE DE BUTÉE, arbre d'articulation |
| 70 |
0329793 |
SPRING, Steering friction |
| 71 |
0330296 |
GUARD, Handle |
| 72 |
0394036 |
HANDLE & SCREW ASSY |
| 73 |
0329529 |
BOLT TILT SHAFT |
| 74 |
0343600 |
WASHER, Screw, pulley |
| 75 |
0329530 |
BUSHING, Tilt shaft |
| 77 |
0433458 |
ANODE, Port stern bracket |
| 78 |
0333350 |
SCREW, Anode |
| 79 |
0584119 |
LEAD ASSEMBLY, Ground |
| 80 |
0306014 |
VIS, ancrage |
| 84 |
0336448 |
BAFFLE, Exhaust housing |
| 85 |
0336418 |
GASKET, Baffle |
| 96 |
0513817 |
BRAIDED SLEEVE |
| 97 |
0512228 |
Male Plug. 2 Terminal |
| 98 |
0336309 |
SEAL, Steering arm |
