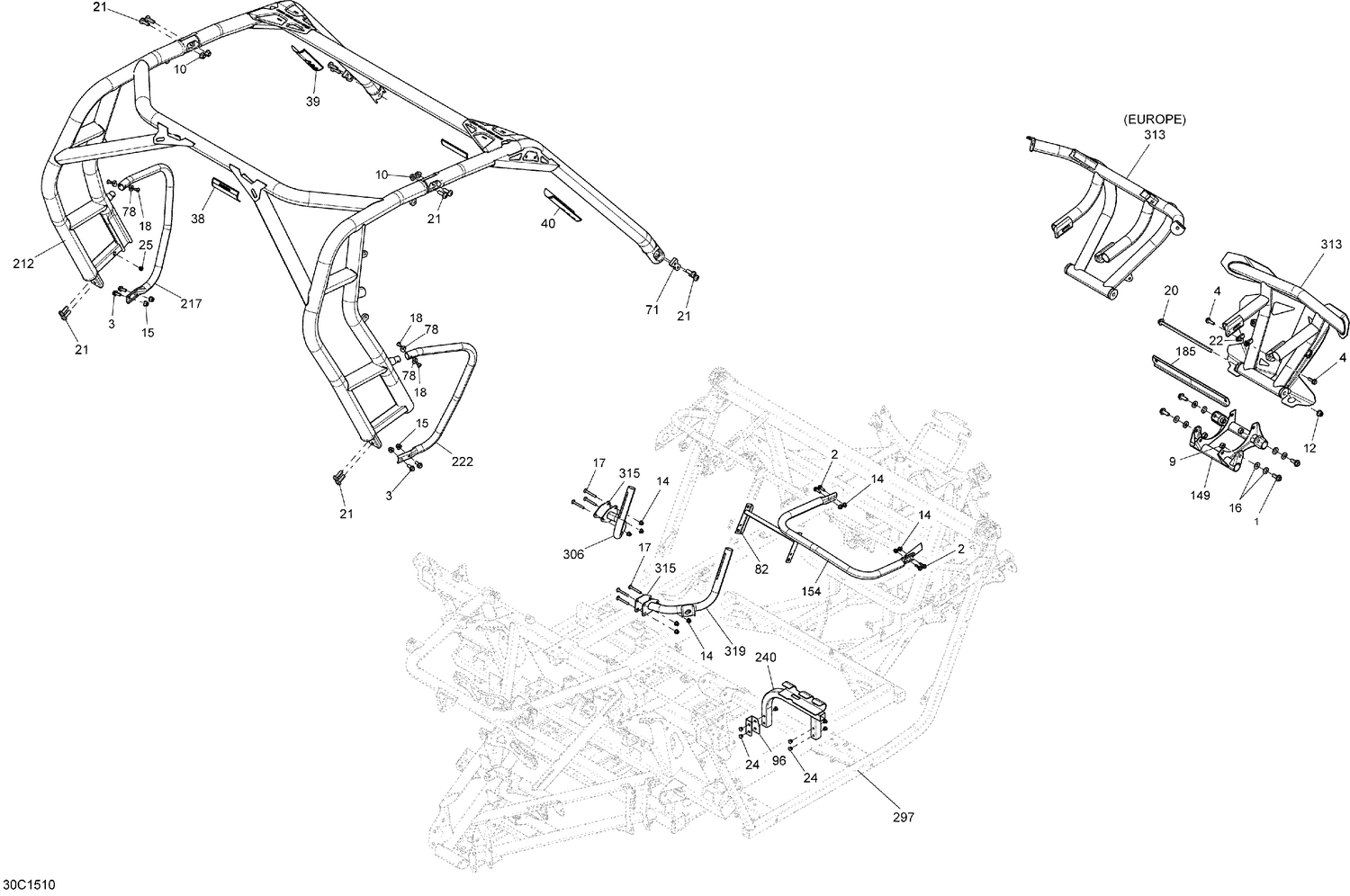

09- Frame _30C1510
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207602546 | Hex. Flange Screw M10 X 25 |
| 2 | 207662046 | Hex. Flange Screw M6 X 20 |
| 3 | 207682044 | Hex. Flange Screw M8 X 20 |
| 4 | 207382544 | SCREW-HEX.CAP DIN.933 S.GRIP - Call your local BRP dealership |
| 9 | 232500416 | Elastic Stop Nut M10 |
| 10 | 233101464 | Hex. Elastic Flange Nut , M10 X 1.5 |
| 12 | 233201436 | Hex. Flange Elastic Nut M10 |
| 14 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 15 | 233281414 | Hex. Flange Elastic Nut M8 |
| 16 | 234201474 | Conical Spring Washer 10 mm |
| 17 | 250000317 | Torx Screw M6 X 50 |
| 18 | 250000789 | Torx Truss M6X14 This part replaces 250000439. |
| 20 | 250000597 | Hex. Flange Screw |
| 21 | 250000848 | Screw Pan M10 X 30 This part replaces 250000624. |
| 22 | 250100118 | Panel Nut M8 X 1.25 |
| 24 | 293150096 | Hemlock Rivet, 6.5 mm |
| 25 | 250100242 | Threaded Insert M6 X 1.0 This part replaces 293450274. |
| 38 | 704903492 | Warning Label |
| 39 | 704903679 | Warning Label |
| 40 | 704903680 | Warning Label |
| 71 | 705203415 | Binding Block |
| 78 | 705202223 | Offset Washer |
| 82 | 705203330 | Reinforcement Panel |
| 96 | 705202602 | Seat Support |
| 149 | 705203296 | DIFFERENTIAL SUPPORT - Call your local BRP dealership |
| 154 | 705203332 | Black Handle |
| 185 | 705203454 | FRONT SUSPENSION LINK - Call your local BRP dealership |
| 217 | 705204407 | TUBE LH B-357 PAINTED - Call your local BRP dealership |
| 222 | 705204408 | TUBE RH B-357 PAINTED - Call your local BRP dealership |
| 297 | 715003947 | FRAME KIT - Call your local BRP dealership This part replaces 715002867. |
| 315 | 705204606 | Steel Plate |
