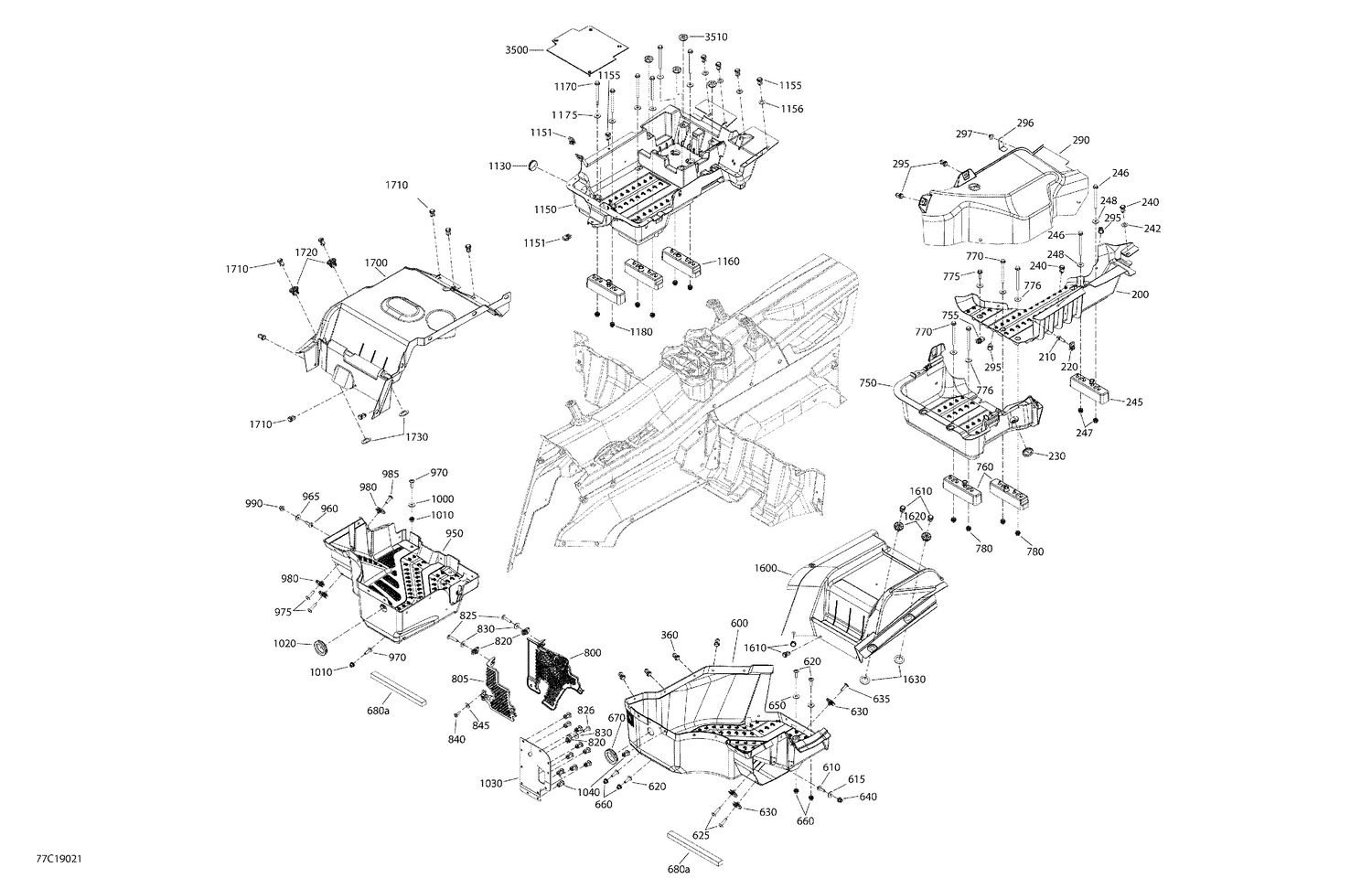

09- Cab Interior Commander MAX - Lower Section
Parts (74)
| Ref | Part Number | Description |
|---|---|---|
| 200 | 707900387 | Under cover |
| 210 | 207662054 | Hex. Flange Screw M6 X 20 |
| 220 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 230 | 293250242 | Rubber Cover |
| 240 | 293150230 | Tuflok Plastic Rivet |
| 242 | 506151252 | Washer |
| 245 | 707900099 | Support Plate |
| 246 | 207667056 | Hex. Flange Screw M6 X 70 |
| 247 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 248 | 234062670 | Stainless Steel Flat Washer |
| 290 | 707900388 | Rear Floor cap |
| 295 | 293150230 | Tuflok Plastic Rivet |
| 296 | 705205445 | INSERT SUPPORT - Call your local BRP dealership |
| 297 | 293150103 | Pop Rivet 3/16" |
| 360 | 293150230 | Tuflok Plastic Rivet |
| 600 | 707900022 | LH Lower Floor |
| 610 | 250000712 | Torx Screw M6 X 20 |
| 615 | 234062670 | Stainless Steel Flat Washer |
| 620 | 250000722 | Torx Screw M6 X 20 |
| 625 | 250000807 | Torx Truss Screw M6 X 25 |
| 630 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 635 | 250000722 | Torx Screw M6 X 20 |
| 640 | 233261494 | Hex. Flange Elastic Nut M6 |
| 650 | 234062670 | Stainless Steel Flat Washer |
| 660 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 670 | 293250242 | Rubber Cover |
| 680a | 219704380 | SEAL-TRAY 300MM LONG - Call your local BRP dealership |
| 750 | 707900331 | Rear Floor |
| 755 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 760 | 707900099 | Support Plate |
| 770 | 207667056 | Hex. Flange Screw M6 X 70 |
| 775 | 207662054 | Hex. Flange Screw M6 X 20 |
| 776 | 234062670 | Stainless Steel Flat Washer |
| 780 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 800 | 707900178 | Grille |
| 805 | 707900180 | Grille |
| 820 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 825 | 250000843 | Torx Truss Screw M6 X 30 |
| 826 | 250000722 | Torx Screw M6 X 20 |
| 830 | 234062670 | Stainless Steel Flat Washer |
| 840 | 250000720 | Torx Screw K50 X 16 |
| 845 | 250200025 | Washer M5 |
| 950 | 707900023 | RH Lower Floor |
| 960 | 250000712 | Torx Screw M6 X 20 |
| 965 | 234062670 | Stainless Steel Flat Washer |
| 970 | 250000722 | Torx Screw M6 X 20 |
| 975 | 250000807 | Torx Truss Screw M6 X 25 |
| 980 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 985 | 250000722 | Torx Screw M6 X 20 |
| 990 | 233261494 | Hex. Flange Elastic Nut M6 |
| 1000 | 234062670 | Stainless Steel Flat Washer |
| 1010 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 1020 | 293250242 | Rubber Cover |
| 1030 | 707900192 | Deflector |
| 1040 | 293150230 | Tuflok Plastic Rivet |
| 1130 | 293250242 | Rubber Cover |
| 1150 | 707900670 | RH Lower Rear Floor |
| 1151 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 1155 | 293150230 | Tuflok Plastic Rivet |
| 1156 | 506151252 | Washer |
| 1160 | 707900099 | Support Plate |
| 1170 | 207667056 | Hex. Flange Screw M6 X 70 |
| 1175 | 234062670 | Stainless Steel Flat Washer |
| 1180 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 1600 | 707900130 | Under Seat Cover |
| 1610 | 293150230 | Tuflok Plastic Rivet |
| 1620 | 707900133 | Insert |
| 1630 | 503189273 | Washer |
| 1700 | 707900006 | RH Under Seat Plate |
| 1710 | 293150230 | Tuflok Plastic Rivet |
| 1720 | 707900133 | Insert |
| 1730 | 503189273 | Washer |
| 3500 | 707900163 | Battery Cover |
| 3510 | 705003264 | Grommet |
