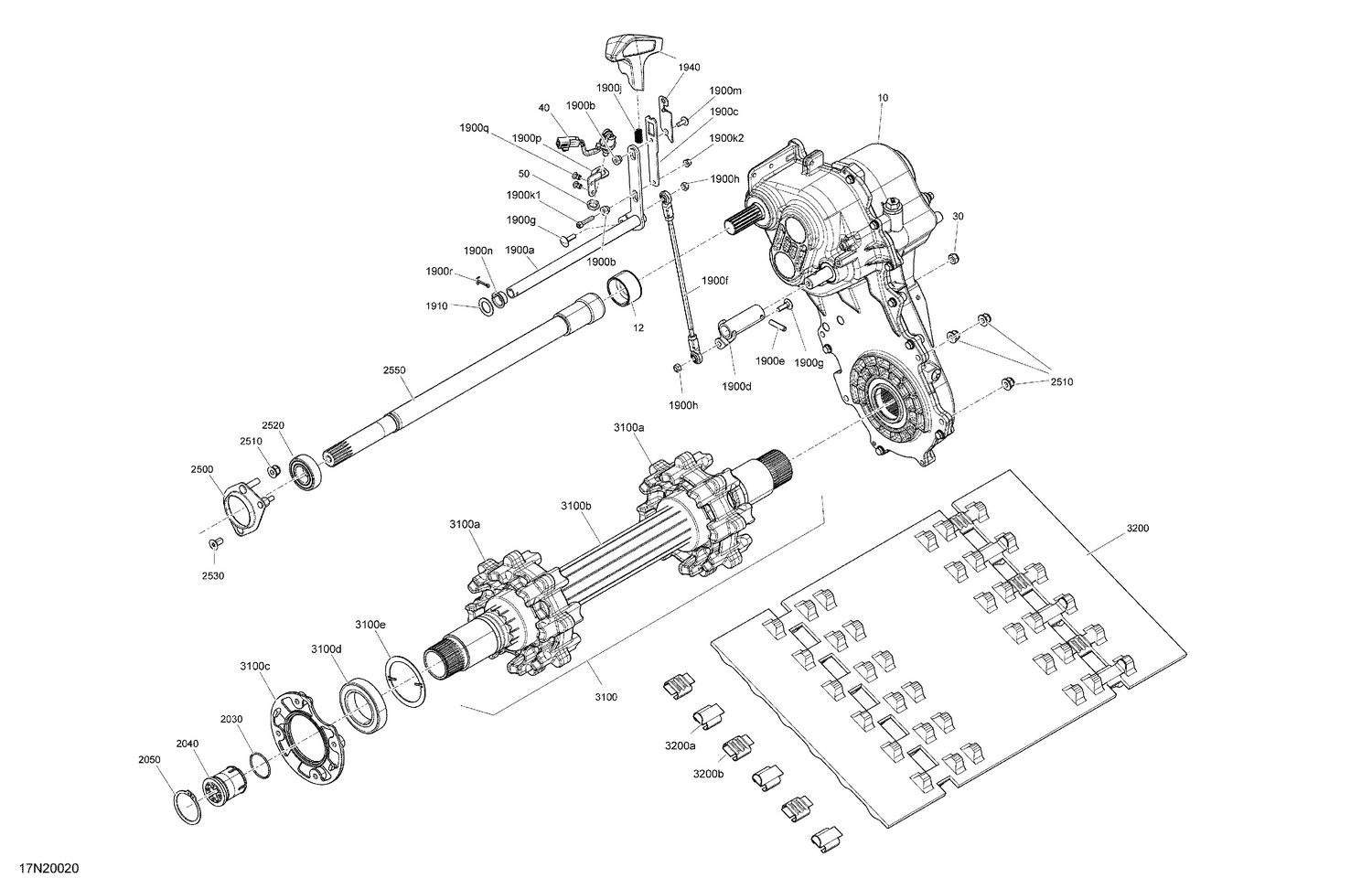

05- Drive - System
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 619230078 | Transmission Ass'y (Fast Ratio) |
| 10a | 504152896 | Rotation Sensor |
| 12 | 504153054 | Protective Rubber |
| 30 | 232581414 | Hex. Elastic Stop Nut M8 |
| 40 | 515176472 | Switch kompl. |
| 50 | 250000373 | BRASS NUT - Call your local BRP dealership |
| 1900a | 504153288 | Lever Shifter |
| 1900b | 504152787 | Sleeve |
| 1900c | 504153287 | Shifter Arm |
| 1900d | 504153278 | Weld Lever |
| 1900e | 41012 | Spring Pin 6 x 30 |
| 1900f | 504153258 | Shifter Rod |
| 1900g | 250000677 | Bolt Carriage M6 x 20 |
| 1900h | 232561414 | Elastic Stop Nut M6 |
| 1900j | 504152882 | Spring |
| 1900k1 | 205052544 | Socket Head Screw M10 x 1.5 |
| 1900k2 | 233251434 | Flanged Elastic Nut M5 This part replaces 233251414. |
| 1900m | 250000676 | Forming Screw M5 x 16 |
| 1900n | 504152890 | Bearing |
| 1900p | 504152902 | Sensor fastening |
| 1900q | 293150163 | Rivet Hucklok |
| 1900r | 250400035 | Cotter Pin |
| 1910 | 503189273 | Washer |
| 1940 | 504152837 | Shifter handle |
| 2030 | 293300122 | O-rengas |
| 2040 | 504152619 | Magnetic Adaptor |
| 2050 | 504152572 | Circlip |
| 2500 | 504153187 | Bearing Housing |
| 2510 | 233281414 | Hex. Flange Elastic Nut M8 |
| 2520 | 293350074 | Ball Bearing |
| 2530 | 235381646 | Torx Screw M8 X 16, Scotch Grip |
| 2550 | 504153070 | Counter Shaft |
| 3100a | 504153137 | RH/LH Sprocket (8 T) |
| 3100b | 504152874 | Axle-drive |
| 3100c | 504153886 | Retaining Ring This part replaces 504153426. |
| 3100d | 293350059 | Ball Bearing |
| 3100e | 504153207 | Shim |
| 3200a | 415129528 | Track Guide |
