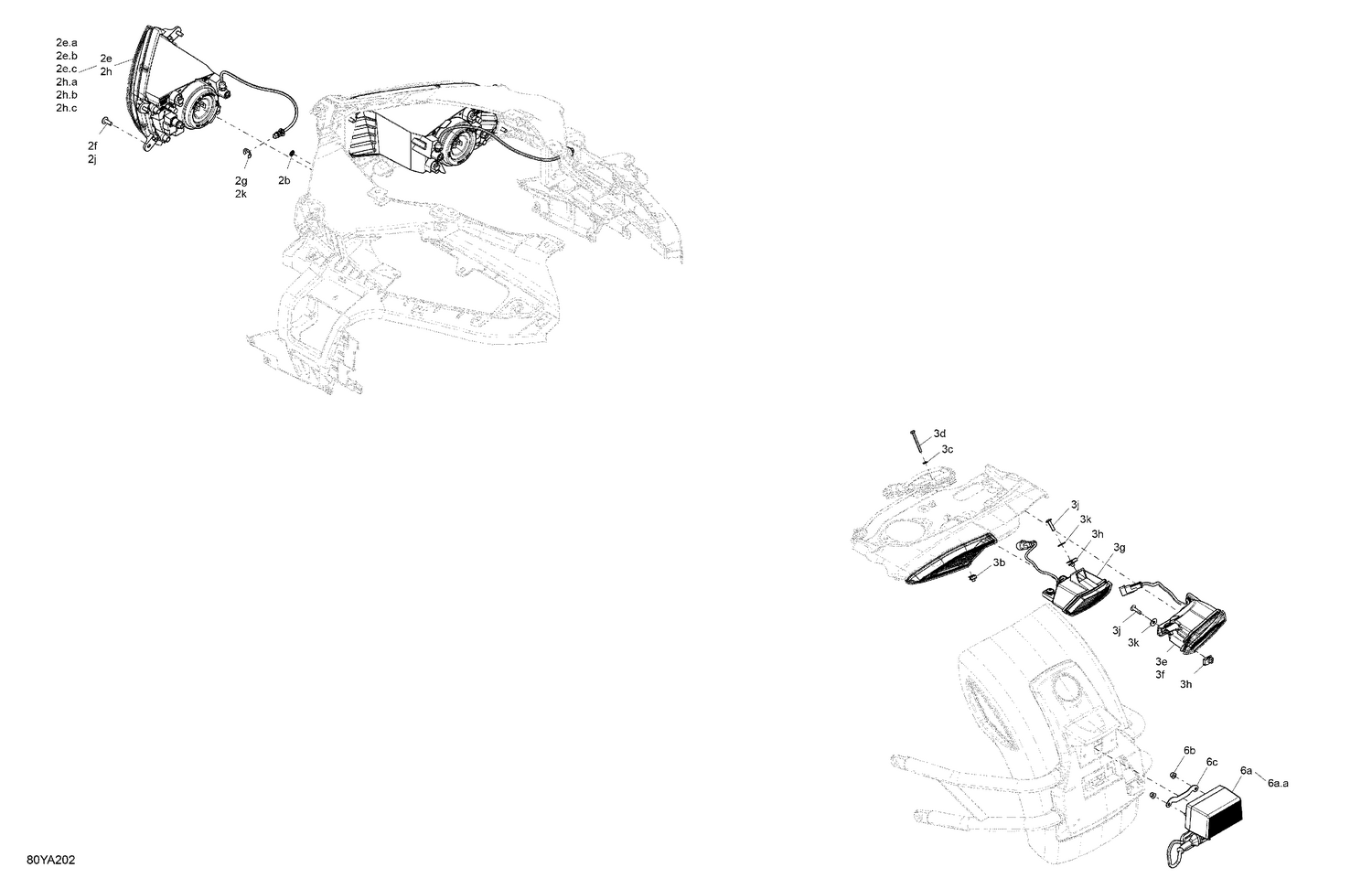

08- Electric - Vehicle Lighting - North America
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 2b | 250100034 | Push Nut |
| 2f | 250000721 | Torx Truss Screw M6 X 16 |
| 2g | 293370013 | E-Circlip |
| 2j | 250000721 | Torx Truss Screw M6 X 16 |
| 2k | 293370013 | E-Circlip |
| 3b | 250100143 | Extruded Panel Nut M4 X 0.7 |
| 3c | 234041600 | Flat Washer 4 mm, Stainless |
| 3d | 207144060 | Hex. Screw M4 X 40 |
| 3e | 710007001 | LH Tail Light |
| 3f | 710007003 | RH Tail Light |
| 3g | 710007005 | Back-Up Light |
| 3h | 250000958 | Panel Nut M5 X 0.8 |
| 3j | 250000715 | Torx Truss Screw M5 X 20 |
| 3k | 234052670 | Stainless Steel Flat Washer M5 |
| 6b | 233251494 | Elastic Flange Nut M5 |
