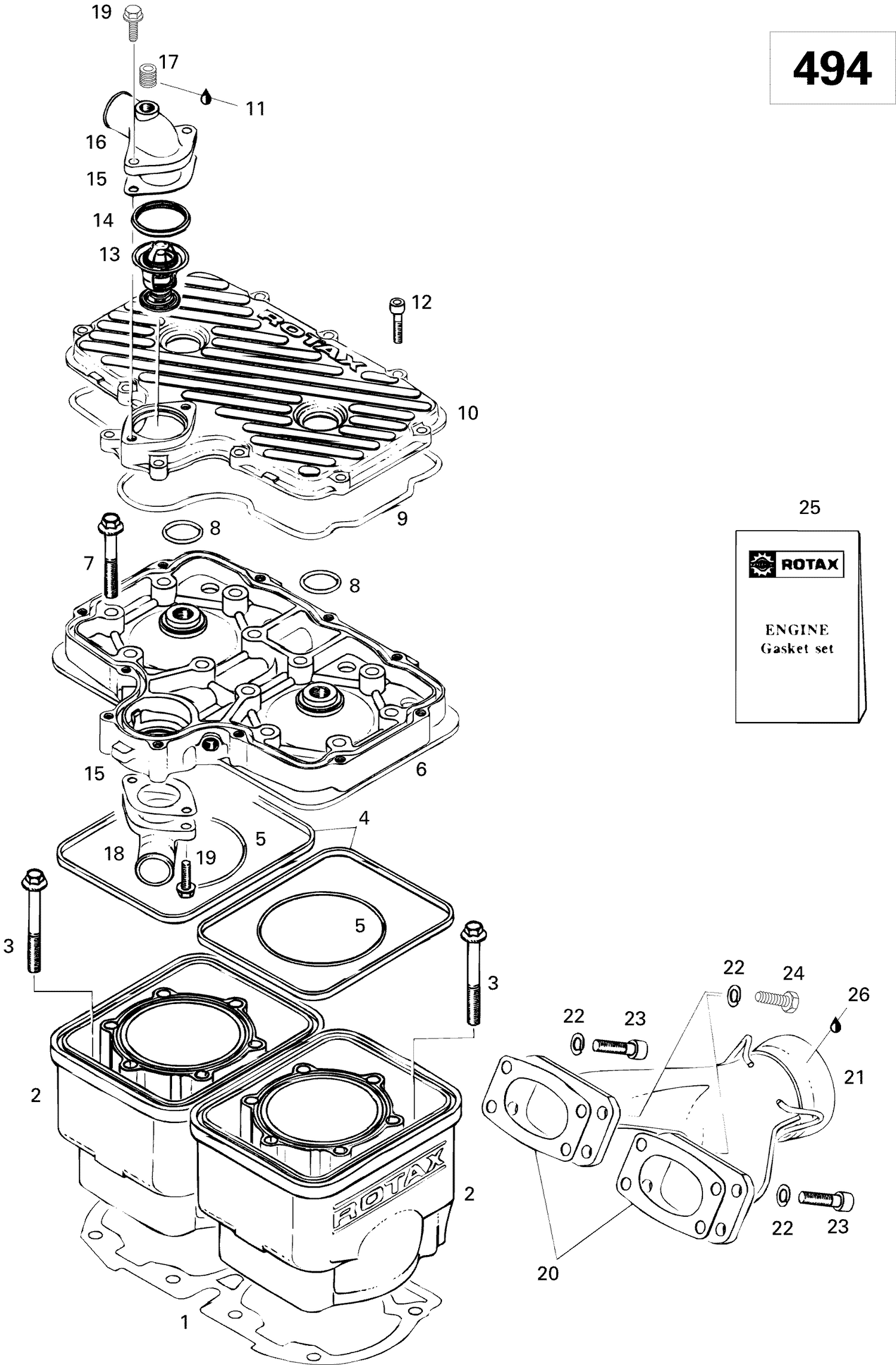

| Ref | Part Number | Description |
|---|
| 1 |
420931361 |
Gasket Double 0.4 mm |
| 2 |
420923145 |
Cylinder With Sleeve Ass’y |
| 3 |
420640959 |
Collar Hex Screw M8 X 68.5 This part replaces 420841996. |
| 4 |
420850040 |
RUBBER RING - Call your local BRP dealership |
| 5 |
420831792 |
O-Ring |
| 6 |
420923160 |
Cylinder Head (Yellow) |
| 7 |
420240326 |
Hex. Flange Screw M8 X 53.5 |
| 8 |
420430782 |
O-Ring |
| 9 |
420931260 |
O-Ring |
| 10 |
420913838 |
Cylinder Head (Yellow) |
| 11 |
Not |
Available As Spare Part - Silastic 732 RTV, 100 gr |
| 12 |
205062544 |
Socket Head Screw M6 X 25 This part replaces 222962565. |
| 13 |
420922519 |
Thermostat This part replaces 414834100. |
| 14 |
420931270 |
SEALING RING - Call your local BRP dealership |
| 15 |
420850339 |
Gasket This part replaces 420850336. |
| 16 |
420922062 |
BENT OUTLET SOCKET - Call your local BRP dealership |
| 17 |
420240480 |
PLUG SCREW - Call your local BRP dealership |
| 18 |
420922480 |
Bent Outlet Socket |
| 19 |
420941251 |
SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250. |
| 20 |
420850535 |
Gasket |
| 21 |
420973228 |
Exhaust Manifold |
| 22 |
234181401 |
Lock Washer 8 mm This part replaces 224781140. |
| 23 |
205083044 |
Socket Head Screw M8 X 30 This part replaces 222983065. |
| 24 |
207182544 |
Hex. Screw M8 X 25 This part replaces 222082565. |
| 25 |
420994225 |
Gasket Set |
