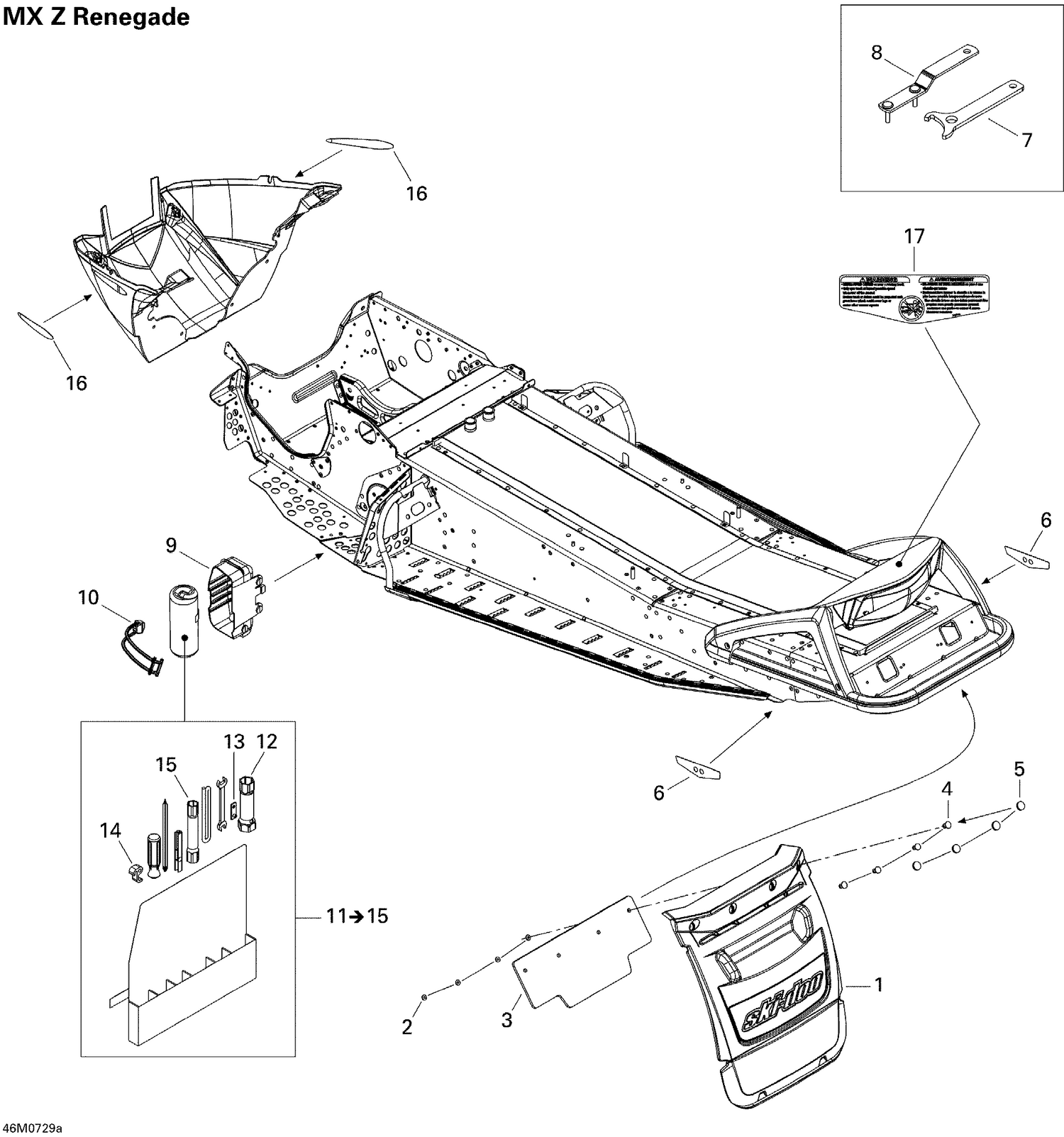

| Ref | Part Number | Description |
|---|
| 1 |
520000446 |
SNOW GUARD - Call your local BRP dealership |
| 2 |
517225900 |
Flat Washer |
| 3 |
520000488 |
SNOW GUARD REINFORCEMENT - Call your local BRP dealership |
| 4 |
293150087 |
Pop Rivet 3/16” This part replaces 293150087. |
| 5 |
277000203 |
Black, Cap |
| 6 |
520000382 |
REAR REFLECTOR - Call your local BRP dealership |
| 7 |
529000035 |
Adjustment Wrench This part replaces 529032900. |
| 8 |
520000126 |
Adjustment Wrench |
| 9 |
520000322 |
TRUNK - Call your local BRP dealership |
| 10 |
520000528 |
Latch |
| 12 |
529014800 |
Socket Wrench 21/26 mm |
| 13 |
529024400 |
ROPE ADAPTOR - Call your local BRP dealership |
| 14 |
529000060 |
Starter Grip This part replaces 529019400. |
| 15 |
295000175 |
Socket Wrench 16/18 mm |
| 16 |
516001336 |
FRONT REFLECTOR - Call your local BRP dealership |
