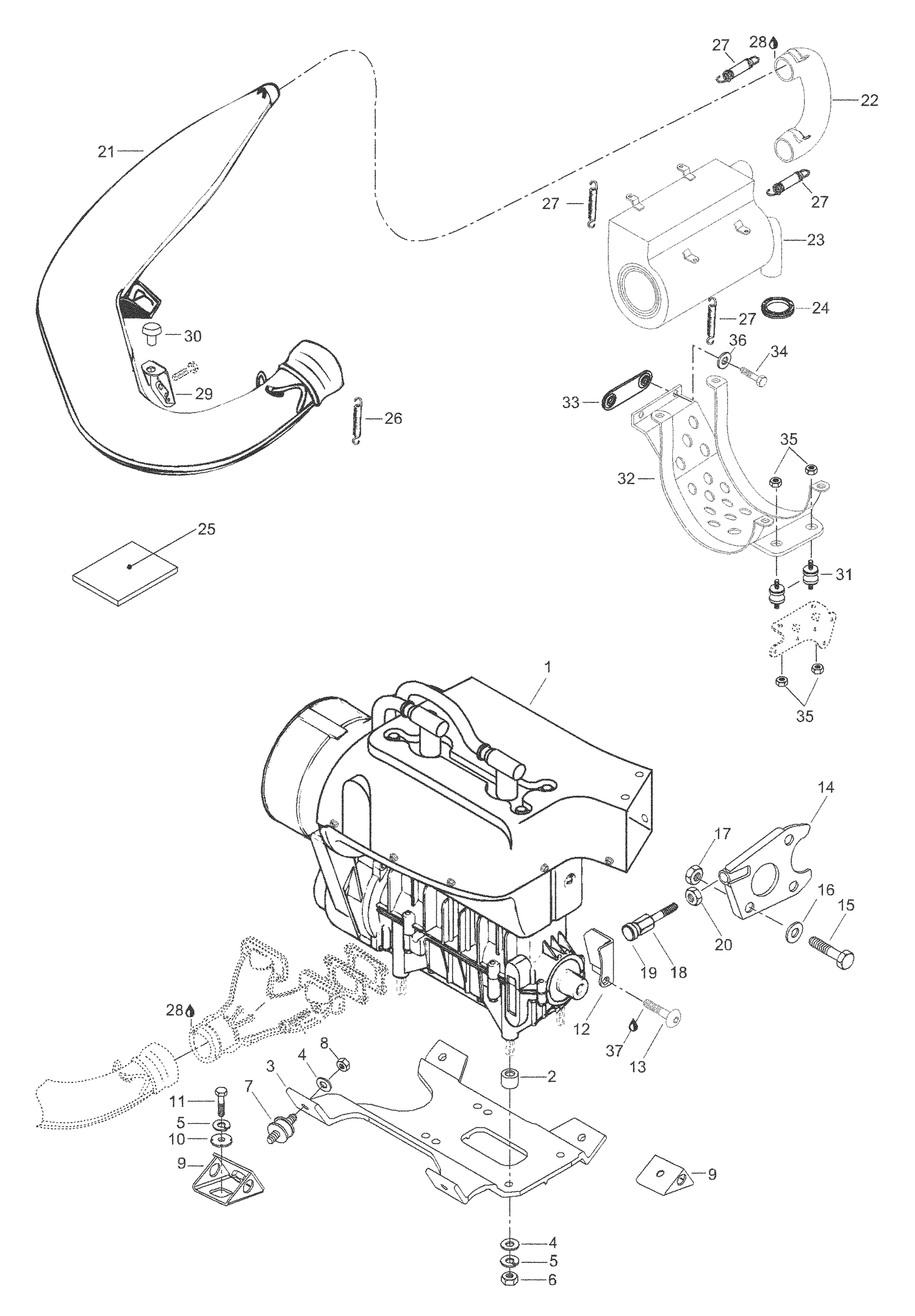

01- Engine Mount Plate/Muffler
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 11000056 | Engine <<377>> |
| 2 | 512057700 | Spacer |
| 3 | 512059134 | Engine support |
| 4 | 20005 | WASHER M10 - Call your local BRP dealership |
| 5 | 20113 | Spring washer |
| 6 | 232006414 | Hex. Nut M10 This part replaces 33004. |
| 7 | 570127700 | RUBBER MOUNT - Call your local BRP dealership |
| 8 | 33082 | Nut elastic M10 |
| 9 | 512050900 | Support |
| 10 | 512056700 | Lock washer |
| 11 | 40040 | Screw M10x25 |
| 12 | 512059198 | Stopper plate |
| 13 | 40882 | Screw M8x20 |
| 14 | 517271800 | Support plate |
| 15 | 40037 | Screw M8x25 |
| 16 | 234081410 | Flat Washer 8 mm This part replaces 20004. |
| 17 | 232581414 | Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 18 | 517244200 | Screw |
| 19 | 570025100 | Gummi damper |
| 20 | 33063 | Nut M12 |
| 21 | 5146281 | Muffler |
| 22 | 5347226 | Tail pipe |
| 23 | 514038600 | After muffler |
| 24 | 570039000 | EXHAUST GROMMET - Call your local BRP dealership |
| 25 | 514052949 | Reflection sheet |
| 26 | 415107100 | Spring |
| 27 | 414851600 | Spring |
| 28 | 293800090 | Loctite, 80ml This part replaces 413710300. |
| 29 | 514044100 | Muffler support |
| 30 | 514053654 | Rubber Bumper This part replaces 570048700. |
| 31 | 514052994 | Rubber mount |
| 32 | 514040300 | Welded bracket |
| 33 | 517267100 | Side bracket |
| 34 | 40322 | SELF TAPPING SCREW M6 X 16 - Call your local BRP dealership |
| 35 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 36 | 20003 | Washer |
