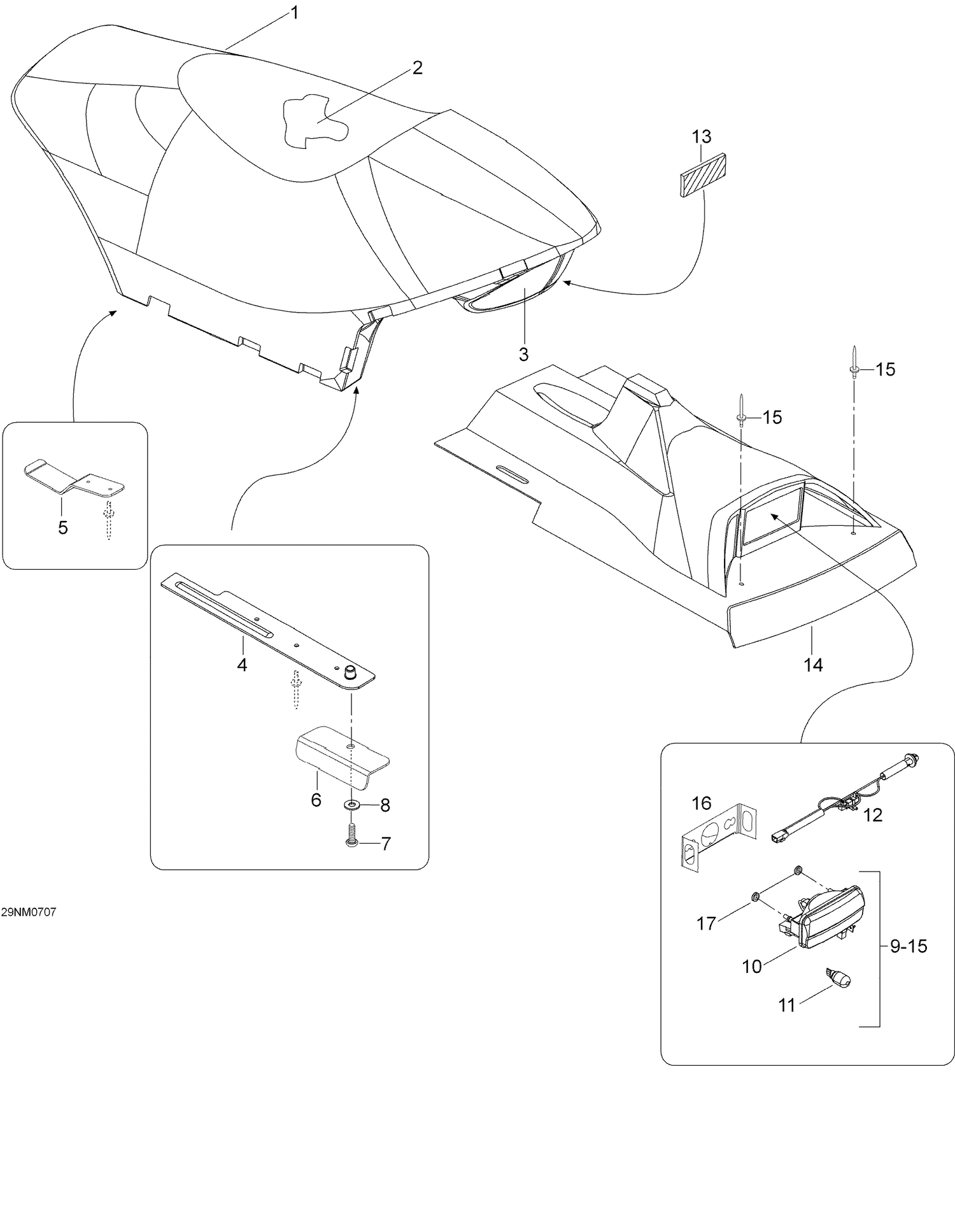

09- Seat
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 605253479 | Cover |
| 2 | 605253728 | Foam |
| 3 | 605252229 | Seat base |
| 4 | 605352802 | R.H. Bracket |
| 4 | 605352803 | L.H. Bracket |
| 5 | 605354979 | Support |
| 6 | 605452935 | Support plate |
| 7 | 40386 | Screw M8 x 30 |
| 8 | 20014 | Lock washer A8 |
| 10 | 710000652 | Lens box |
| 11 | 710000653 | BULB - Call your local BRP dealership |
| 12 | 605153858 | Wiring harness |
| 13 | 21126 | Reflector |
| 14 | 605253325 | Cover, tunnel |
| 15 | 36036 | Rivet |
| 16 | 605353801 | Bracket |
