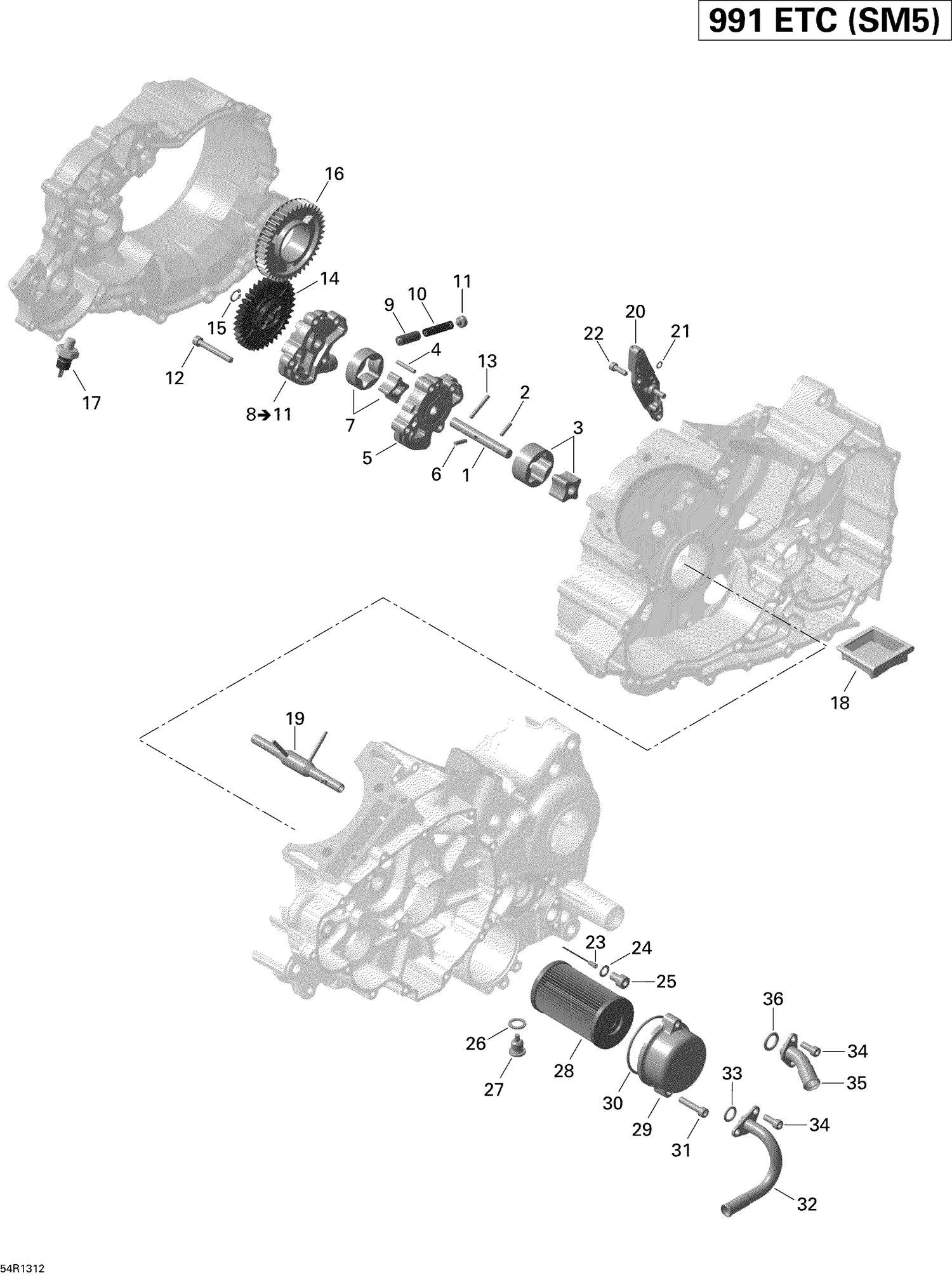

| Ref | Part Number | Description |
|---|
| 1 |
420220425 |
Oil Pump Shaft |
| 2 |
420232731 |
Needle Pin This part replaces 420232730. |
| 3 |
420256681 |
Oil Pump Rotor, Suction |
| 4 |
420232971 |
NEEDLE PIN - Call your local BRP dealership This part replaces 420232970. |
| 5 |
420211625 |
Oil Pump Housing |
| 6 |
420232731 |
Needle Pin This part replaces 420232730. |
| 7 |
420256671 |
Oil Pump Rotor, Pressure |
| 9 |
420256510 |
Pressure Regulating Piston |
| 10 |
420239449 |
Spring |
| 11 |
420241651 |
SCREW - Call your local BRP dealership |
| 12 |
205064544 |
SOCKET HEAD SCREW M6 X 45 - Call your local BRP dealership |
| 13 |
420232431 |
Needle Pin This part replaces 420232430. |
| 14 |
420634488 |
OIL PUMP GEAR, 37 TEETH - Call your local BRP dealership |
| 15 |
420245330 |
Snap Ring |
| 16 |
420634478 |
Oil Gear Pump, 42 Teeth This part replaces 420634476. |
| 17 |
420256912 |
Oil Pressure Switch |
| 18 |
420256498 |
Oil Sieve This part replaces 420256497. |
| 19 |
420656232 |
Oil Tube |
| 20 |
420656595 |
OIL DUCT COVER - Call your local BRP dealership |
| 21 |
420950420 |
O-Ring |
| 22 |
420840514 |
Allen Screw M5 x 16 This part replaces 420840511. |
| 23 |
420456252 |
Oil NozzleI |
| 24 |
420950141 |
Sealing Ring |
| 25 |
420841522 |
SOCKET HEAD SCREW M8 X 12 - Call your local BRP dealership This part replaces 420841521. |
| 26 |
420250640 |
Copper Washer |
| 27 |
420241780 |
Magnetic Drain Plug M12 X 1.5 This part replaces 420241782. |
| 28 |
420956747 |
Oil Filter |
| 29 |
420610233 |
Oil Cover Filter |
| 30 |
420230923 |
O-Ring This part replaces 420650500. |
| 31 |
205063044 |
Socket Head Screw M6 X 30 |
| 32 |
420656540 |
BENT OUTLET - Call your local BRP dealership |
| 33 |
420950815 |
O-Ring |
| 34 |
420241237 |
Socket Head Screw M6 x 16 This part replaces 420241236. |
| 35 |
420656556 |
OIL INLET ELBOW - Call your local BRP dealership |
