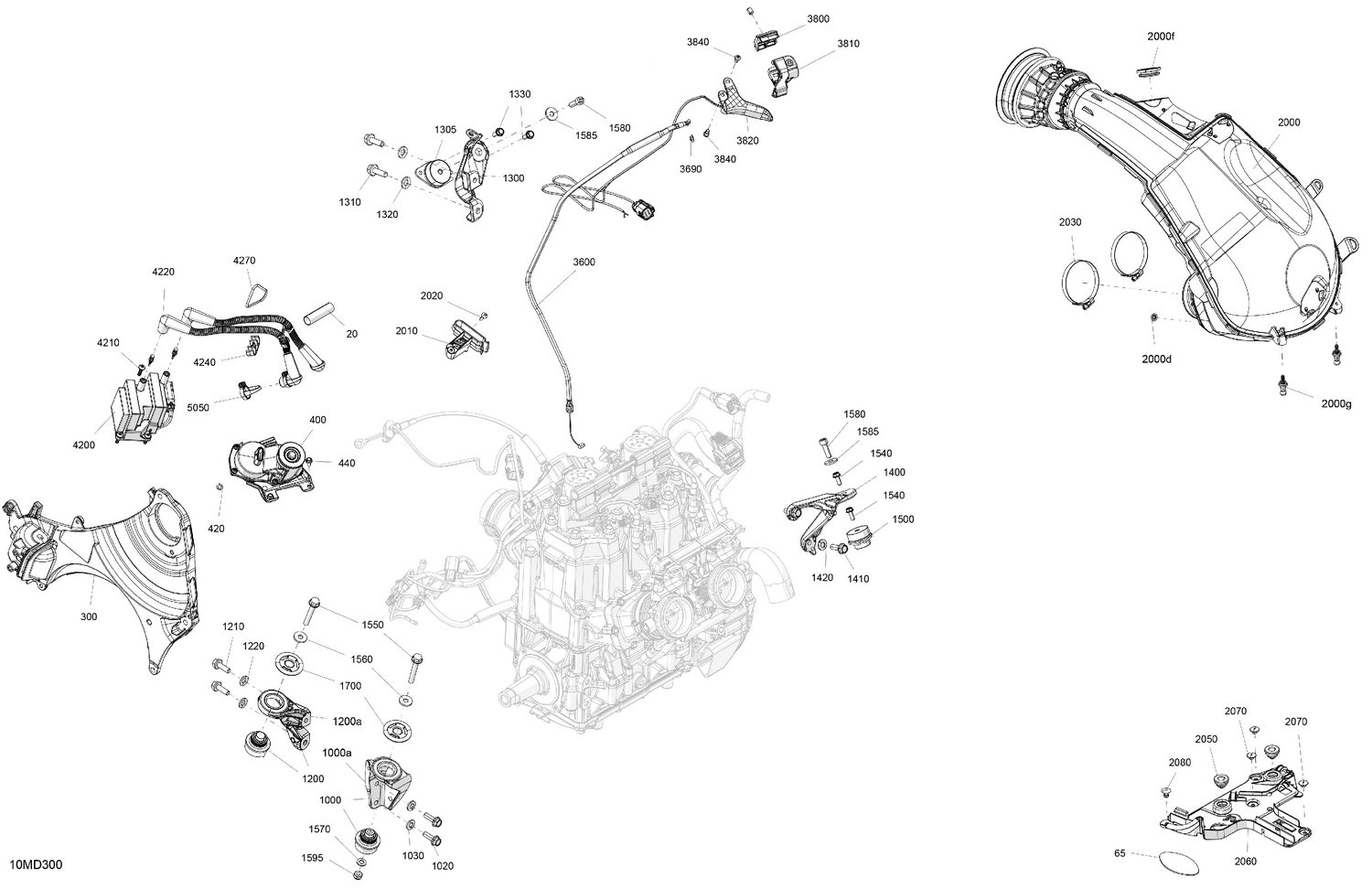

02- Engine - System
Parts (50)
| Ref | Part Number | Description |
|---|---|---|
| 20 | 515178492 | Braided Sleeve 60MM Long |
| 65 | 514056378 | Rubber Sheet |
| 300 | 512061696 | LH Machined Brace This part replaces 512061447. |
| 400 | 420889425 | Servo Motor Ass'y |
| 420 | 293370122 | Circlip |
| 440 | 207551044 | Hex. Flange Screw M5 X 10 |
| 1000a | 512061417 | LH Rear Engine Support |
| 1020 | 250001016 | Hex Flange Screw M8 X 25 S.Grip |
| 1030 | 250200146 | Conical Spring Washer M8 |
| 1200a | XXX | Not Available As Spare Parts |
| 1210 | 250001016 | Hex Flange Screw M8 X 25 S.Grip |
| 1220 | 250200146 | Conical Spring Washer M8 |
| 1300 | 512061439 | RH Front Engine Support |
| 1305 | 512061454 | Vibration Damper |
| 1310 | 250001016 | Hex Flange Screw M8 X 25 S.Grip |
| 1320 | 250200146 | Conical Spring Washer M8 |
| 1330 | 250001062 | Hex. Flange Screw M6 X 16 |
| 1400 | 512061411 | RH Rear Engine Support Ass'y |
| 1410 | 250001016 | Hex Flange Screw M8 X 25 S.Grip |
| 1420 | 250200146 | Conical Spring Washer M8 |
| 1500 | 512061454 | Vibration Damper |
| 1540 | 250001062 | Hex. Flange Screw M6 X 16 |
| 1550 | 207585544 | Hex. Flange Screw M8 X 55 |
| 1560 | 503183200 | Yellow, Washer |
| 1570 | 250200008 | Flat Washer With Teflon 8 mm |
| 1580 | 205082544 | Socket Head Screw M8 X 25 |
| 1585 | 503183200 | Yellow, Washer |
| 1595 | 232581414 | Hex. Elastic Stop Nut M8 |
| 1700 | 512061137 | Engine Stopper |
| 2000d | 732610072 | Push Nut |
| 2000f | 512061083 | Rubber |
| 2000g | 420441840 | Screw |
| 2010 | 512061325 | Cable Guide |
| 2020 | 250000759 | Torx Truss Pt K40 X 16 |
| 2030 | 293650212 | GEMI Clamp |
| 2050 | 420201630 | Rubber Cap |
| 2060 | 512061274 | Airbox Support |
| 2070 | 293150291 | Black, Pop Rivet 3/16 X ,425 |
| 2080 | 293150292 | Black, Pop Rivet 3/16 X ,550 |
| 3600 | 512061326 | Throttle Cable |
| 3690 | 414274500 | Circlip |
| 3800 | 512060859 | Upper Housing |
| 3810 | 512060860 | Lower Housing |
| 3820 | 512061544 | Heated Hand Lever Accelerator |
| 3840 | 250000991 | Flange Screw M5x12 |
| 4200 | 512061168 | Ignition Coil |
| 4210 | 243141630 | Hex. Plastic Screw M4.8 X 16 |
| 4220 | 512061166 | Ignition Cable |
| 4240 | 512061238 | Spark Plug Wire Holder |
| 4270 | 293300208 | O-Ring |
