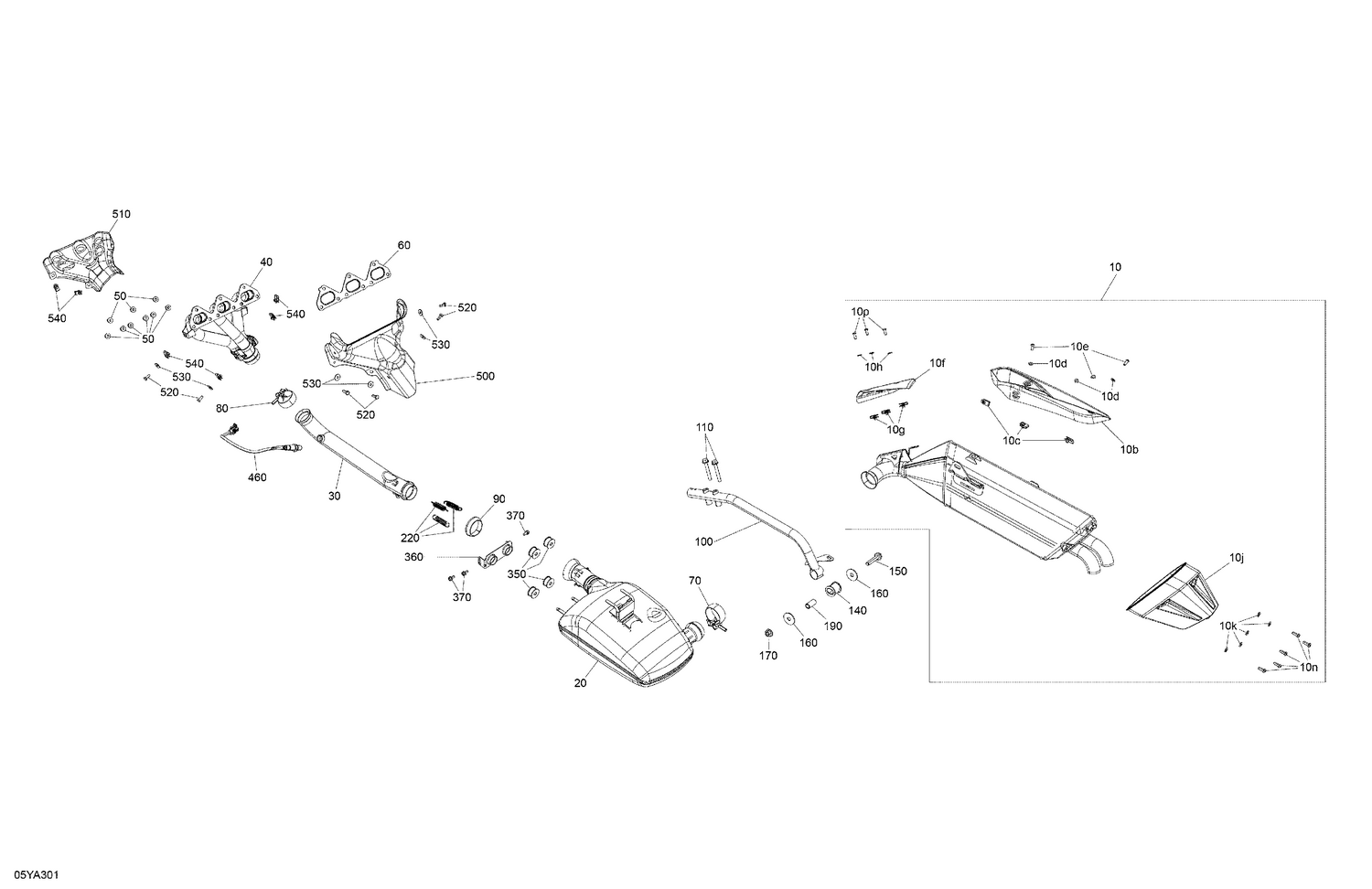

| Ref | Part Number | Description |
|---|
| 10b |
707601381 |
Carbon Black, Heat Shield |
| 10c |
250100198 |
Panel Nut M6 X 1.0 |
| 10d |
234061670 |
Black, Flat Washer 6 mm |
| 10e |
250000616 |
Black, Socket Screw, M6 X 16 S.Grip |
| 10f |
707601054 |
Carbon Black, Heat Shield |
| 10g |
250100198 |
Panel Nut M6 X 1.0 |
| 10h |
234061670 |
Black, Flat Washer 6 mm |
| 10j |
707601995 |
Carbon Black, RH Rear Muffler Trim This part replaces 707601048. |
| 10k |
234061670 |
Black, Flat Washer 6 mm |
| 10n |
250000616 |
Black, Socket Screw, M6 X 16 S.Grip |
| 10p |
250000616 |
Black, Socket Screw, M6 X 16 S.Grip |
| 20 |
707602866 |
Primary Exhaust Muffler This part replaces 707602033. |
| 30 |
707601605 |
Exhaust Tuned Pipe This part replaces 707602419. |
| 40 |
707601922 |
Exhaust Manifold |
| 50 |
233081436 |
Hex. Flange Nut |
| 60 |
707601985 |
Exhaust Seal |
| 70 |
707600980 |
Exhaust Clamp |
| 80 |
707600980 |
Exhaust Clamp |
| 90 |
514054174 |
Exhaust Gasket |
| 100 |
707602839 |
Black (Epoxy), Exhaust Support |
| 110 |
207585544 |
Hex. Flange Screw M8 X 55 |
| 140 |
293830162 |
Anti-Vibration Rubber |
| 150 |
207505046 |
Hex. Flange Screw M10 X 50, Scotch Grip |
| 160 |
506150000 |
Washer 10 mm |
| 170 |
233101600 |
Hex. Flange Nut M10 |
| 190 |
503189282 |
Bushing |
| 220 |
415107100 |
Spring |
| 350 |
707600702 |
Anti-Vibration Rubber |
| 360 |
707600661 |
Front Bracket |
| 370 |
210261250 |
Hex. Flange Screw M6 X 12 |
| 460 |
707600872 |
Oxygen Sensor |
| 500 |
707603641 |
Heat Shield interior This part replaces 707601028. |
| 510 |
707603642 |
Heat Shield Exterior This part replaces 707601504. |
| 520 |
207361660 |
Hex. Screw M6 X 16, Scotch Grip |
| 530 |
234062600 |
Flat Washer M6, Stainless |
